Sale!
$81.39
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
| SKU | 134163 |
|---|---|
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2667 DDR4-2933 DDR4-3200 |
| UPC | 4710483931727 |
| Packaging | Retail |
| Manageability | ACPI 5.1 |
| BIOS | 256Mb AMI UEFI Bios |
| North Bridge | AMD B550 |
| Socket Type | AM4 |
| AMD CPU Support | Ryzen |
| Supported Memory Technologies | ECC Memory Supported Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Audio Chipset | Realtek ALC887 |
| Mfr Part# | MB-B550M-ITX/AC |
| Memory Speeds Supported | 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 |
| Memory Slots | 2 x 288pin DIMM |
| Max Memory Supported | 64GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2280 |
| SATA Express | 1 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 4 |
| RAID Support | RAID 0 RAID 1 RAID 10 |
| Maximum Memory Supported Per Slot | 32GB |
| Audio Channels | 7.1 |
| USB 3.1 | 3 x USB 3.2 (Gen 1 Type-A) 1 x USB 3.2 (Gen 1 Type-C) |
| Video Connectors | 1 x DisplayPort 1.2 1 x HDMI 1.4 |
| LAN Speed | 10/100/1000Mbps |
| Wireless Technology | 802.11b 802.11g 802.11a Bluetooth v4.2 WiFi 4 (802.11n) WiFi 5 (802.11ac) |
| PCI Express 4.0 x16 | 1 |
| Legacy Ports | 1 x PS/2 |
| LAN Ports | 1 x 10/100/1000 RJ-45 LAN |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Line-Out |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 2.0 | 2 x USB 2.0 (Type-A) |
| WiFi Support | Onboard WiFi |
| LAN Chipset | Realtek RTL8111H |
| Headers | 1 x CPU Fan Header 2 x System Fan Header |
| USB | 1 x USB 2.0 Header (2 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 6.70 in. (170.00 mm) |
| Width | 6.70 in. (170.00 mm) |
| Form Factor | Mini-ITX |
| Parts | 3 Years |
| Labor | 3 Years |

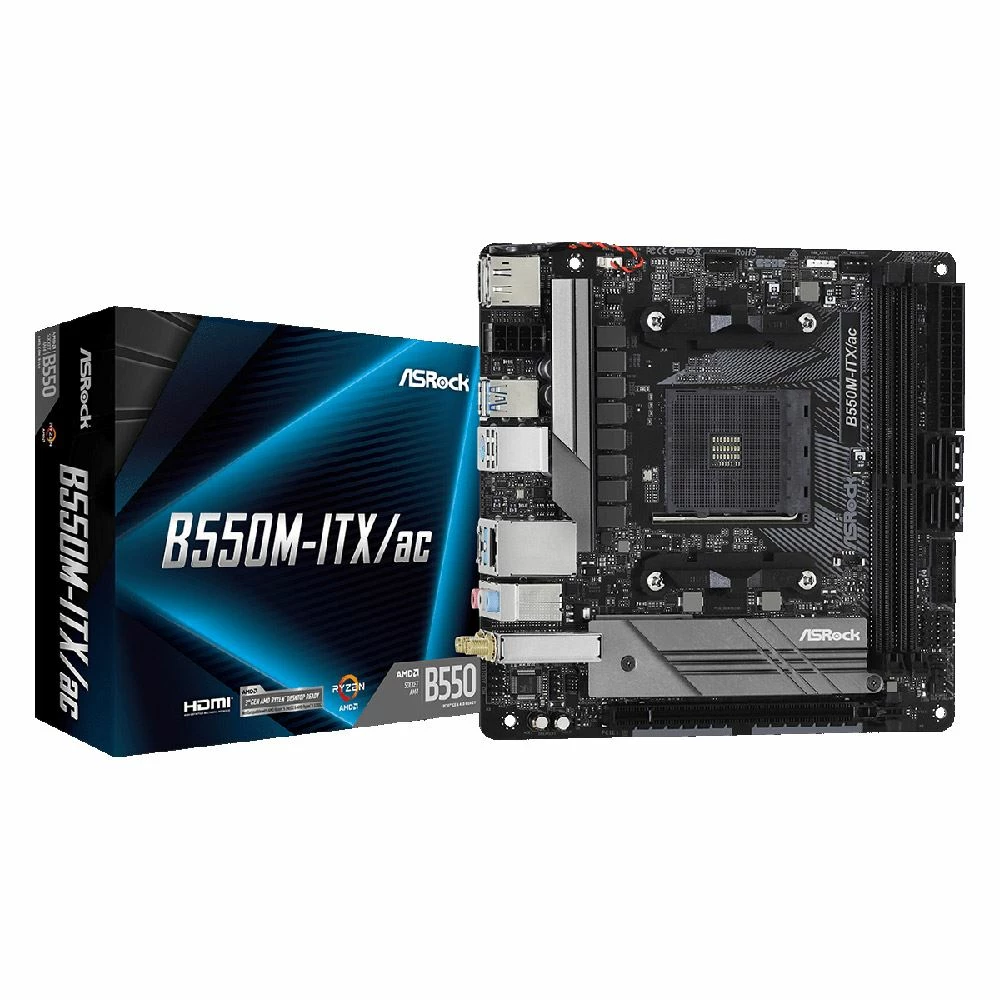

| What's in the Box | Motherboard, Install Guide, Driver Disc, I/O Shield, SATA Cables, Antennas |
