Revolutionary X570 Motherboards: Your PC transformed! AMD Ryzen Desktop 3000 Ready. Welcome to the new Wi-Fi standard! ASRock’s motherboards will be the 1st product coming with next generation Intel Wi-Fi 6 802.11ax Adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. The next generation of PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
Revolutionary X570 Motherboards: Your PC transformed! AMD Ryzen Desktop 3000 Ready. Welcome to the new Wi-Fi standard! ASRock’s motherboards will be the 1st product coming with next generation Intel Wi-Fi 6 802.11ax Adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. The next generation of PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation.
| SKU | 957118 |
|---|---|
| Audio Channels | 7.1 |
| Packaging | Retail |
| General Features | VR Ready RGB Lighting Bluetooth v5.0 |
| Microsoft Certifications | Windows 10 Ready |
| Manageability | ACPI 5.1 |
| BIOS | 256Mb AMI UEFI Bios |
| North Bridge | AMD X570 |
| Socket Type | AM4 |
| AMD CPU Support | Ryzen |
| Maximum Memory Supported Per Slot | 32GB |
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2667 DDR4-2933 DDR4-3200 |
| Supported Memory Technologies | ECC Memory Supported Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Memory Speeds Supported | 4600 O.C., 4533 O.C., 4500 O.C., 4400 O.C., 4300 O.C., 4266 O.C., 4200 O.C., 4133 O.C., 4000 O.C., 3866 O.C., 3733 O.C., 3600 O.C., 3466 O.C., 3400 O.C., 3400 O.C., 3333 O.C., 3300 O.C., 3200 O.C., 3000 O.C., 2800 O.C., 3200, 2933, 2667, 2400, 2133 |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| Multi-GPU Support | 2-Way CrossFireX 3-Way CrossfireX 2-Way SLI |
| M.2 Port Type | 2242 2260 2280 2230 22110 |
| SATA 6Gb/s | 8 |
| Audio Chipset | ALC1220-VB |
| UPC | 4717677338683 |
| Mfr Part# | MB-X570 TAICHI |
| Headers | 1 x RGB Header |
| USB | 2 x USB 2.0 Headers (4 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) |
| Wireless Technology | 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) |
| PCI Express 4.0 x16 | 3 |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 3.1 | 1 x USB 3.2 (Gen 2 Type-C) 1 x USB 3.2 (Gen 2 Type-A) 6 x USB 3.2 (Gen 1 Type-A) |
| Video Connectors | 1 x HDMI 1.4 |
| Legacy Ports | 1 x PS/2 |
| LAN Ports | 1 x 10/100/1000 RJ-45 LAN |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer |
| Digital Audio | 1 x Optical |
| LAN Chipset | Intel I211-AT |
| WiFi Support | Onboard WiFi |
| Other I/O | 1 x Clear CMOS Buton |
| Power Connectors | 1 x 24-pin ATX Connector |
| Regulatory Approvals | FCC CE |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | ATX |
| Parts | 1 Year |
| Labor | 1 Year |
| LAN Speed | 10/100/1000Mbps |

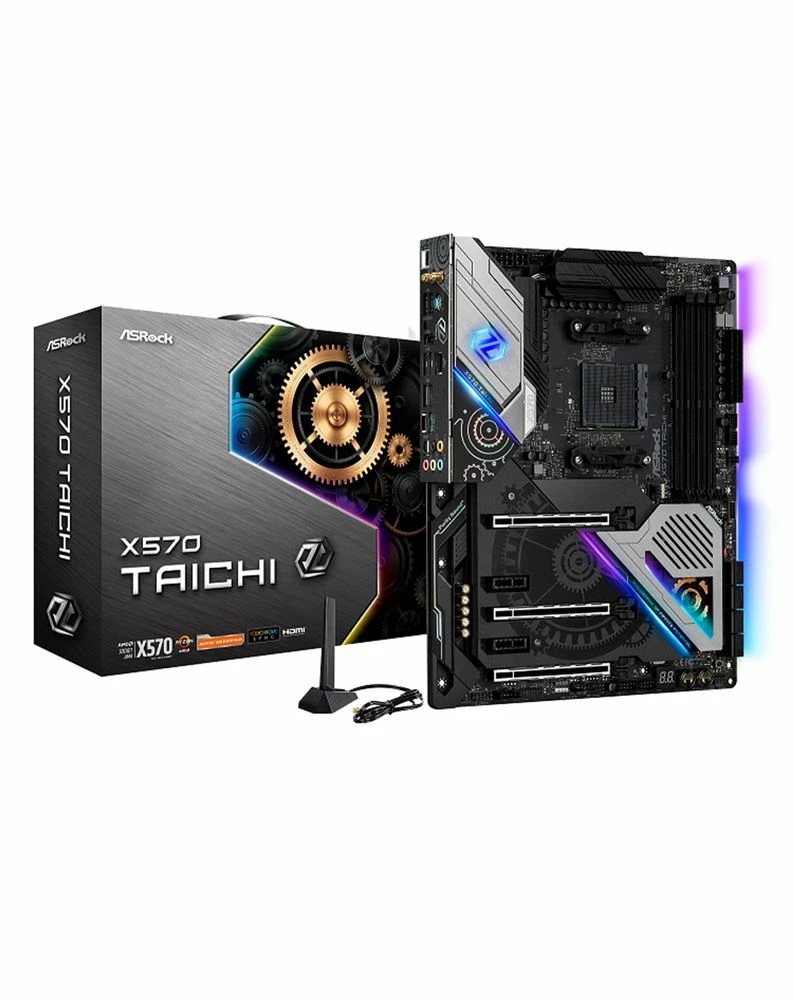

| What's in the Box | Motherboard, 4x SATA Cables, SLI Bridge, WiFi Antenna, Screwdriver, 3x M.2 Screws, 3x M.2 Standoffs, Support CD |
