Original price was: $179.99.$96.99Current price is: $96.99.

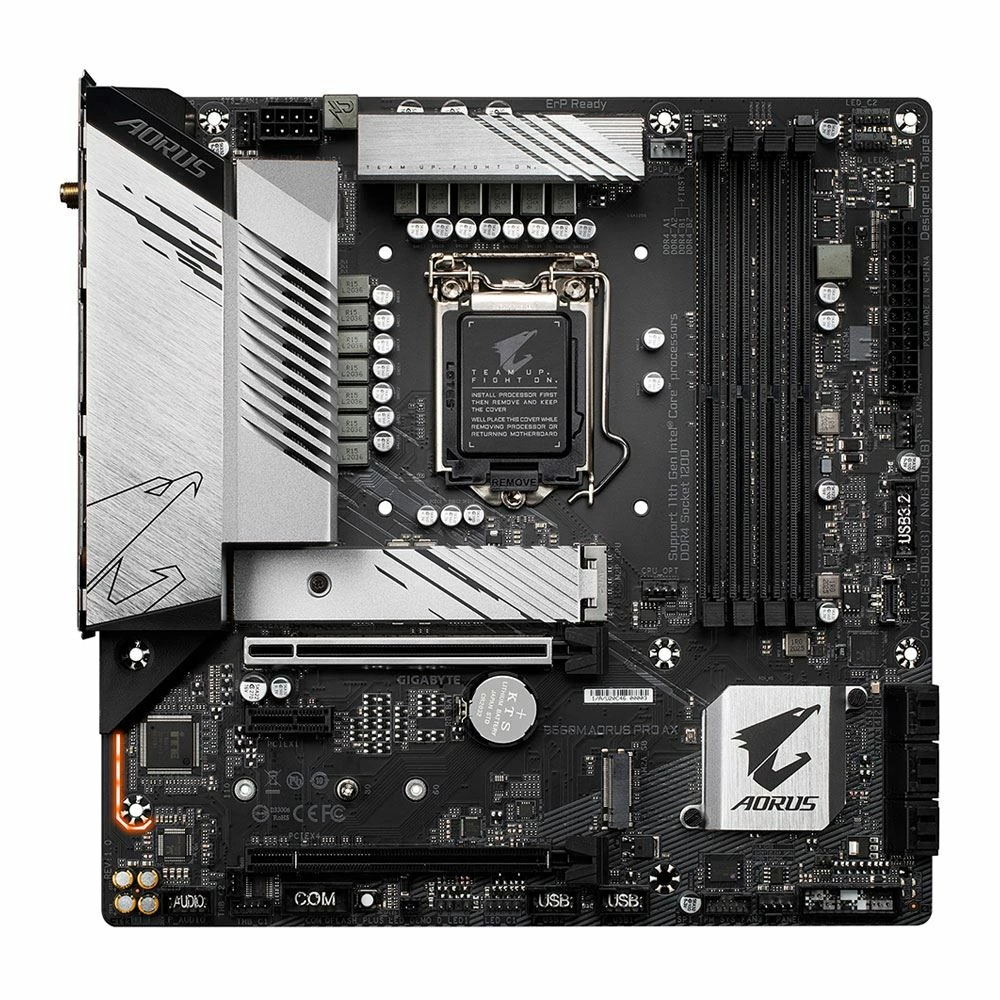

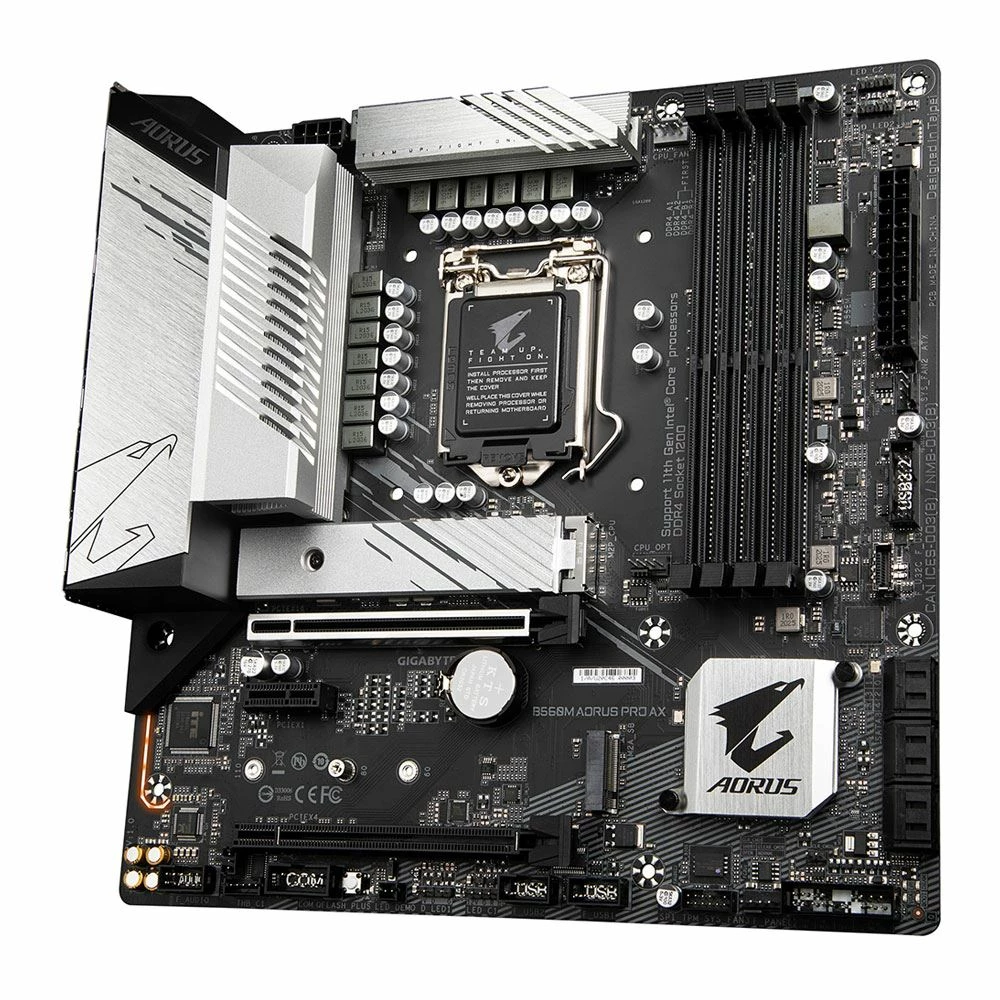

The B560M AORUS PRO AX comes with upgraded power solution, incredible cooling design, all PCIe 4.0 design and outstanding connectivity to elevate your gaming experience to the next level.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
The B560M AORUS PRO AX comes with upgraded power solution, incredible cooling design, all PCIe 4.0 design and outstanding connectivity to elevate your gaming experience to the next level.
| SKU | 364547 |
|---|---|
| Memory Speeds Supported | 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz |
| Packaging | Retail |
| Manageability | PnP 1.0a WfM 2.0 SM BIOS 2.7 ACPI 5.0 DMI 2.7 |
| BIOS | 256Mb AMI UEFI Bios |
| North Bridge | Intel B560 |
| Socket Type | LGA 1200 |
| Intel CPU Support | Core i7 Core i5 Core i3 Celeron Pentium Core i9 |
| Supported Memory Technologies | ECC Memory Supported Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Maximum Memory Supported Per Slot | 32GB |
| WiFi Support | Onboard WiFi |
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2666 DDR4-2933 DDR4-3200 DDR4-2800 DDR4-3000 |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| Multi-GPU Support | 2-Way CrossFire |
| M.2 Port Type | 2260 2280 22110 |
| SATA Express | 2 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 6 |
| Audio Channels | 7.1 |
| UPC | 889523027226 |
| Mfr Part# | B560MAORUSPROAX |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| Wireless LAN Chipset | Intel Wi-Fi 6 AX200 |
| PCI Express 4.0 x16 | 1 |
| PCI Express 3.0 x16 | 1 |
| PCI Express x1 | 1 |
| Specialty Ports | 2 x WiFi Antenna Ports |

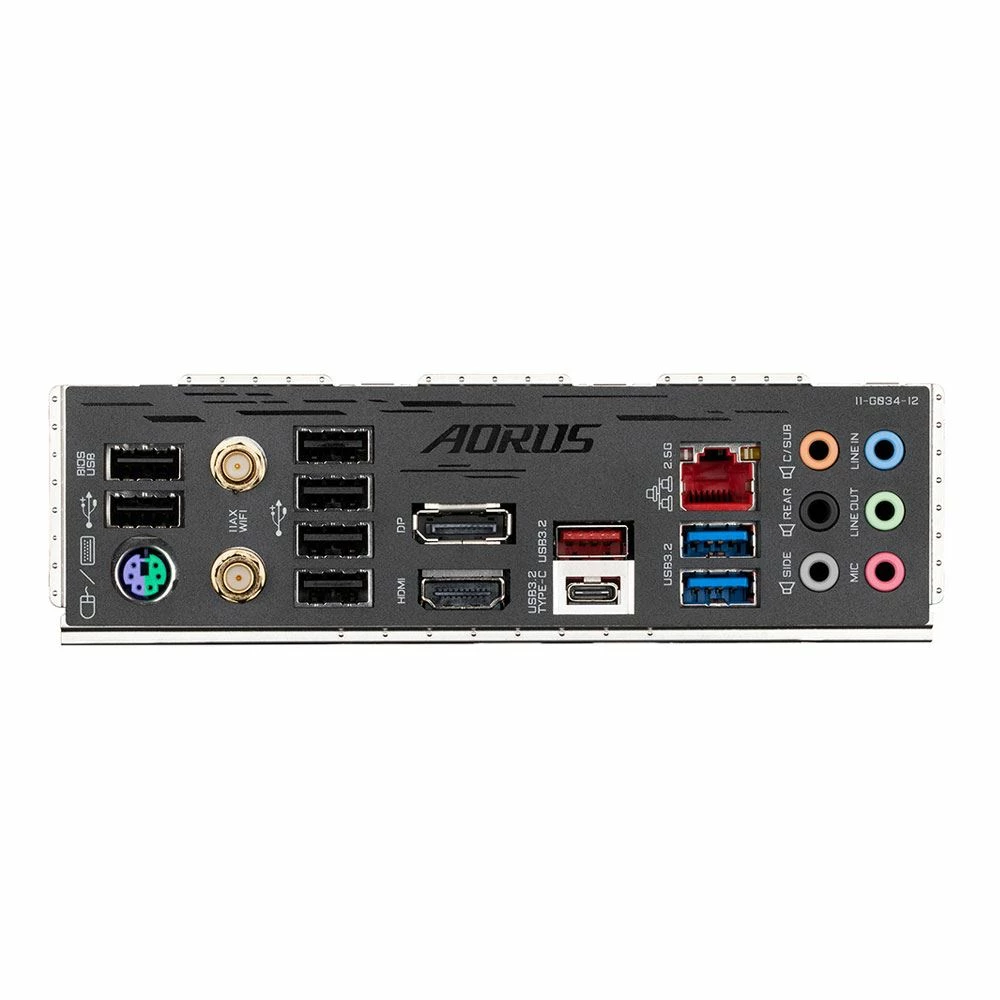

| USB 2.0 | 6 x USB 2.0 (Type-A) |
| USB 3.1 | 1 x USB 3.2 (Gen 2×2 Type-C) 1 x USB 3.2 (Gen 2 Type-A) 2 x USB 3.2 (Gen 1 Type-A) |
| Video Connectors | 1 x DisplayPort 1.2 1 x HDMI 1.4 |
| Legacy Ports | 1 x PS/2 |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Side Speaker 1 x 3.5 mm Line-Out |
| Headers | 1 x CPU Fan Header 3 x System Fan Header |
| LAN Speed | 10/100/1000/2500Mbps |
| USB | 2 x USB 2.0 Headers (4 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) 1 x USB 3.2 Gen 1 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 9.61 in. (244.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | microATX |
| Parts | 3 Years |
| Labor | 3 Years |
| Wireless Technology | 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.1 |

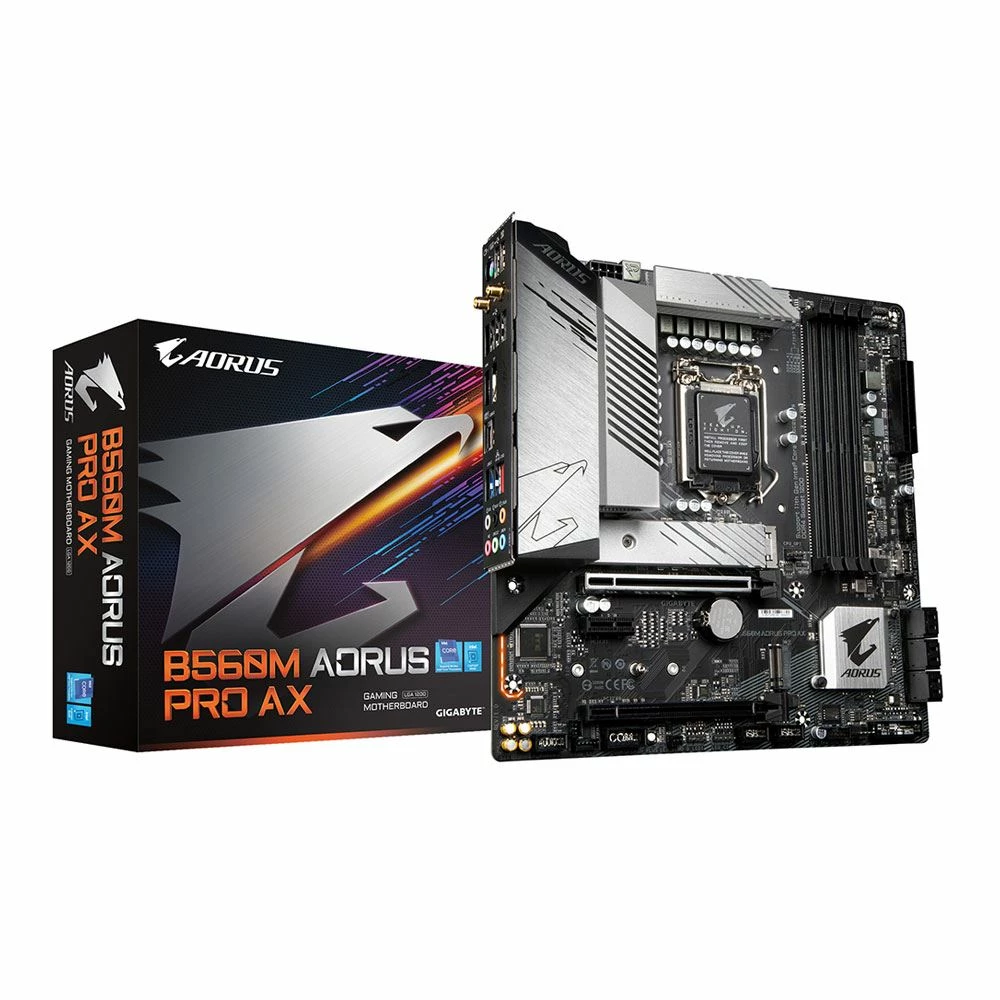

| What's in the Box | Motherboard, Driver Disc, SATA Cables, Manual Antenna, M.2 Screws and Standoffs |
