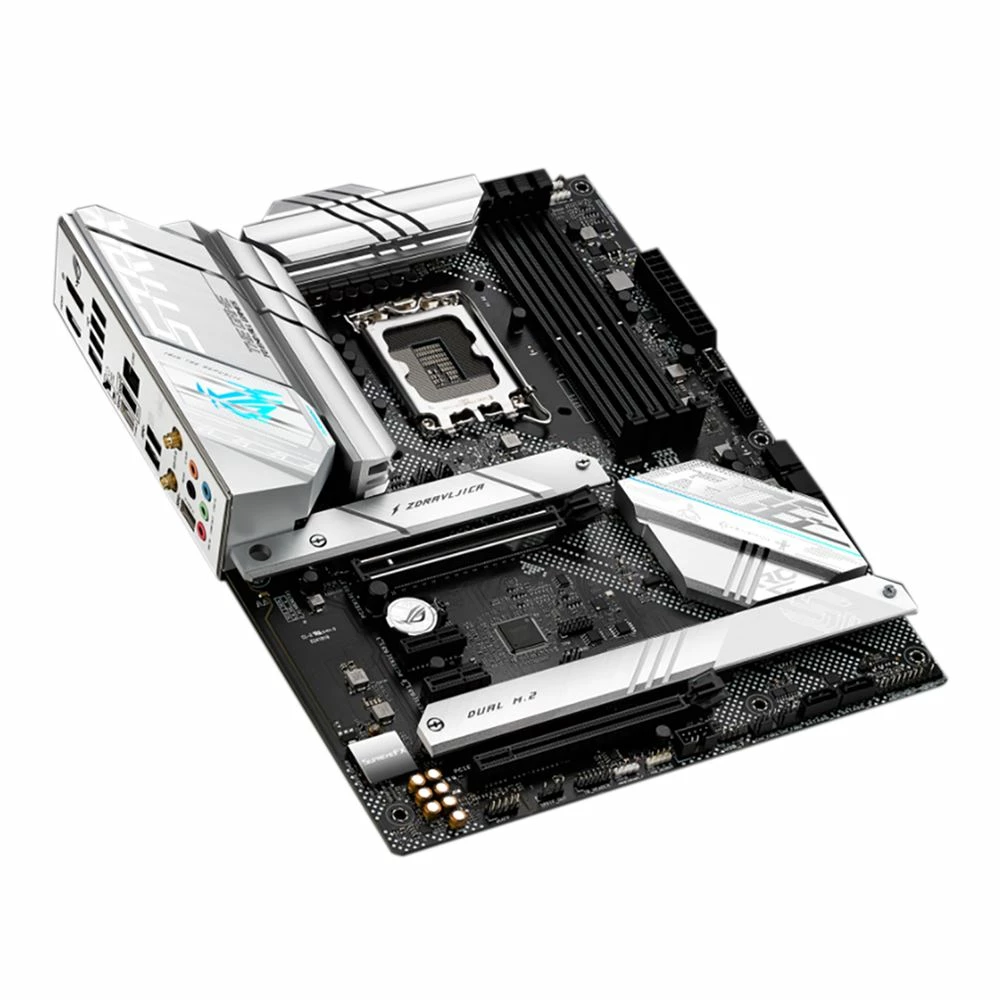

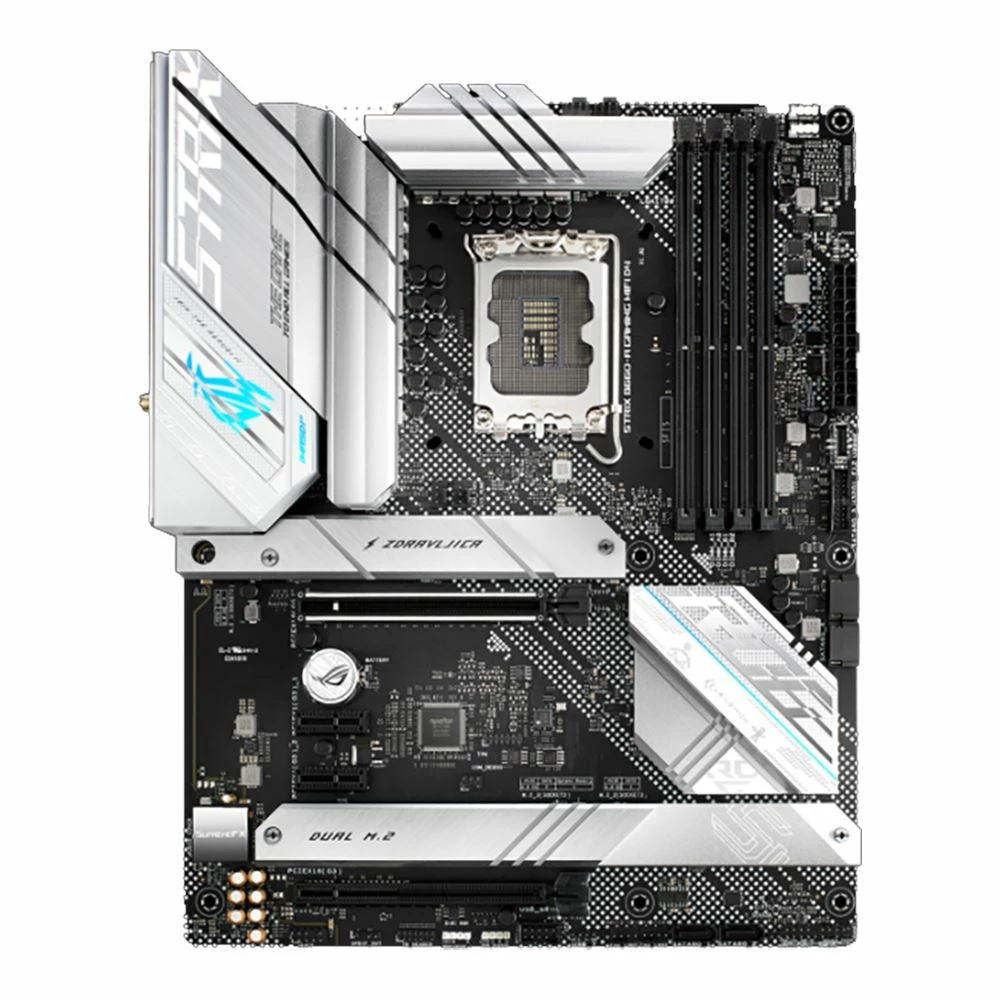

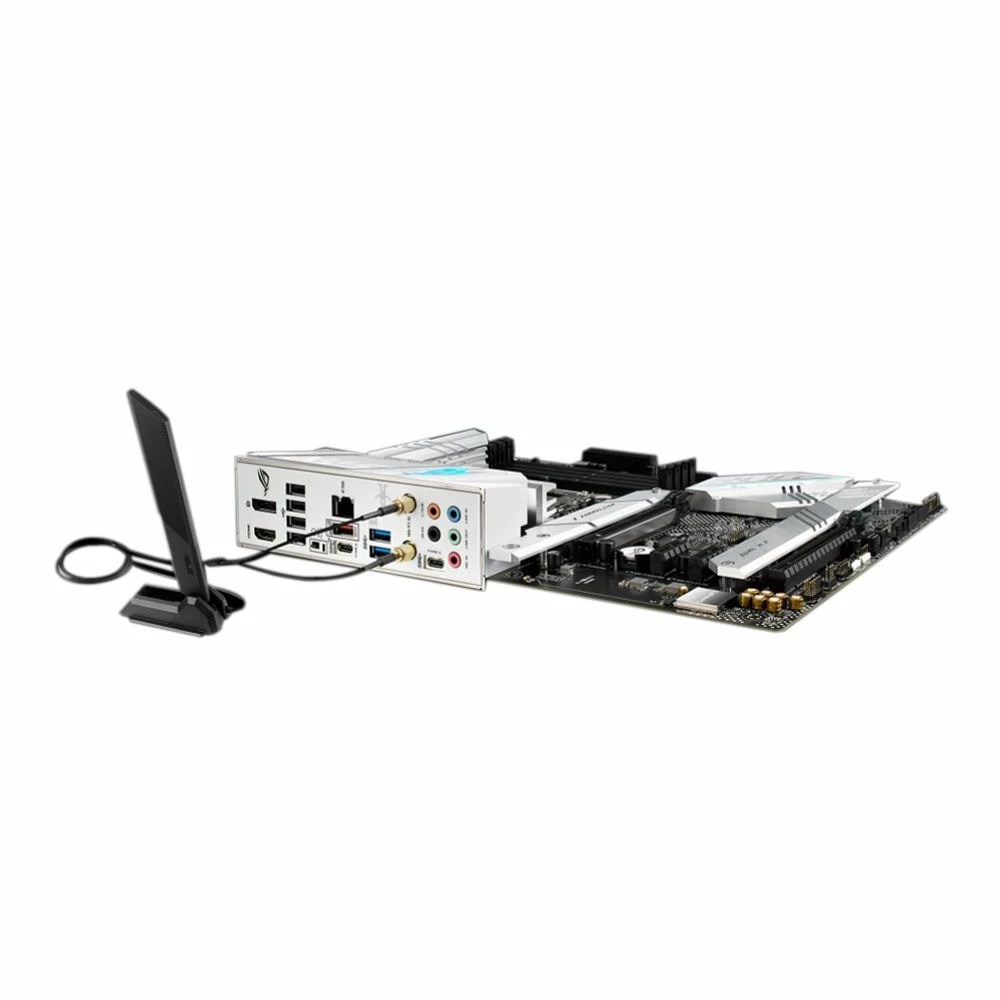

The ASUS ROG STRIX B660-A GAMING WIFI D4 white and silver scheme motherboard is designed with boosted power delivery and optimized cooling to cope with the demands of powerful 12th Generation Intel Core processors. Along with Wi-Fi 6 and PCI Express 5.0 for superfast transfer speeds and storage, ROG Strix Z690-A Gaming WiFi D4 is ready to take the helm of your clean and neat white gaming gear.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
The ASUS ROG STRIX B660-A GAMING WIFI D4 white and silver scheme motherboard is designed with boosted power delivery and optimized cooling to cope with the demands of powerful 12th Generation Intel Core processors. Along with Wi-Fi 6 and PCI Express 5.0 for superfast transfer speeds and storage, ROG Strix Z690-A Gaming WiFi D4 is ready to take the helm of your clean and neat white gaming gear.
| SKU | 367839 |
|---|---|
| Memory Type | DDR4-2400 DDR4-2666 DDR4-2933 DDR4-3200 DDR4-2800 DDR4-3000 |
| UPC | 195553521505 |
| Packaging | Retail |
| Microsoft Certifications | Windows 11 Ready |
| Manageability | WOL PXE |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| North Bridge | Intel B660 |
| Socket Type | LGA 1700 |
| Intel CPU Support | Core i7 Core i5 Core i3 Celeron Pentium Core i9 |
| Supported Memory Technologies | Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Audio Chipset | ROG SupremeFX ALC4080 |
| Mfr Part# | STXB660AGMWFD4 |
| Memory Speeds Supported | 5333(OC) /5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2242 2260 2280 22110 |
| SATA Express | 3 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 4 |
| RAID Support | RAID 0 RAID 1 RAID 5 RAID 10 |
| Maximum Memory Supported Per Slot | 32GB |
| Audio Channels | 7.1 |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Line-Out |
| Wireless LAN Chipset | 2×2 Wi-Fi 6 |
| Wireless Technology | 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.2 |
| PCI Express 5.0 x16 | 1 |
| PCI Express 3.0 x16 | 1 |
| PCI Express x1 | 2 |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 2.0 | 4 x USB 2.0 (Type-A) |
| USB 3.1 | 1 x USB 3.2 (Gen 2×2 Type-C) 1 x USB 3.2 (Gen 2 Type-A) 2 x USB 3.2 (Gen 1 Type-A) 1 x USB 3.2 (Gen 1 Type-C) |
| Video Connectors | 1 x HDMI 2.1 1 x DisplayPort 1.4 |
| WiFi Support | Onboard WiFi |
| LAN Speed | 10/100/1000/2500Mbps |
| Headers | 1 x Water Pump Header 3 x System Fan Header 2 x CPU Fan Header |
| USB | 1 x USB 2.0 Header (2 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) 1 x USB 3.2 Gen 2 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector 1 x 4-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | ATX |
| Parts | 3 Years |
| Labor | 3 Years |

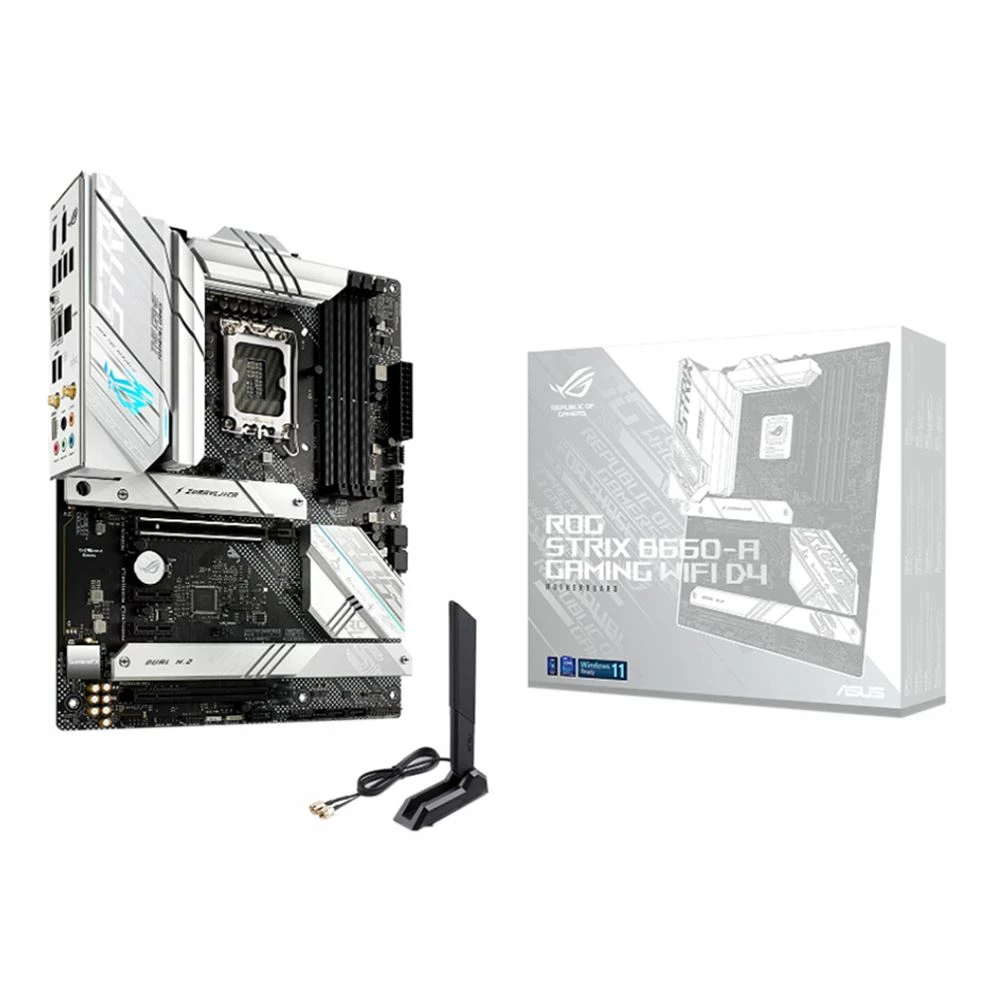

| What's in the Box | Motherboard, 4x SATA Cables, Antennas, Cable Ties, M.2 Rubber Package, M.2 Q Latch Package, ROG Key Chain, ROG Strix Stickers, Driver Disc, Guide |
