Sale!
$93.99

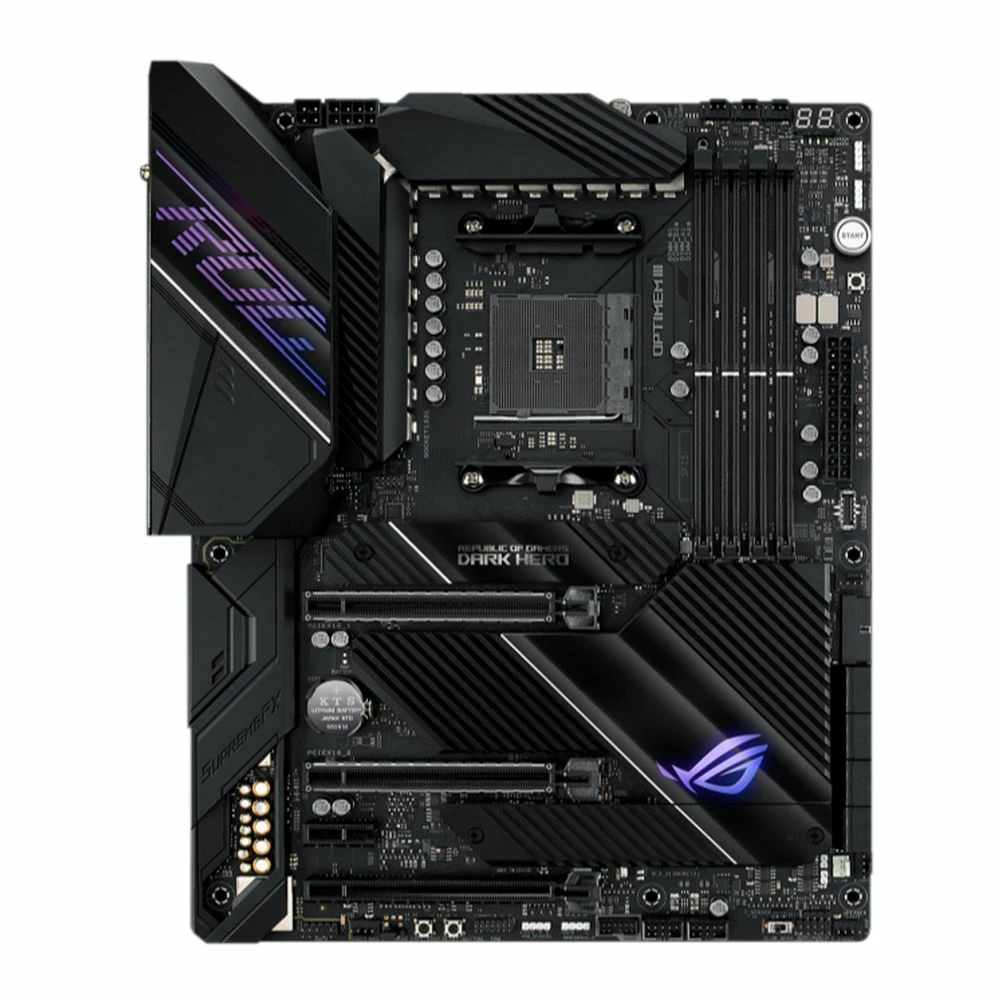

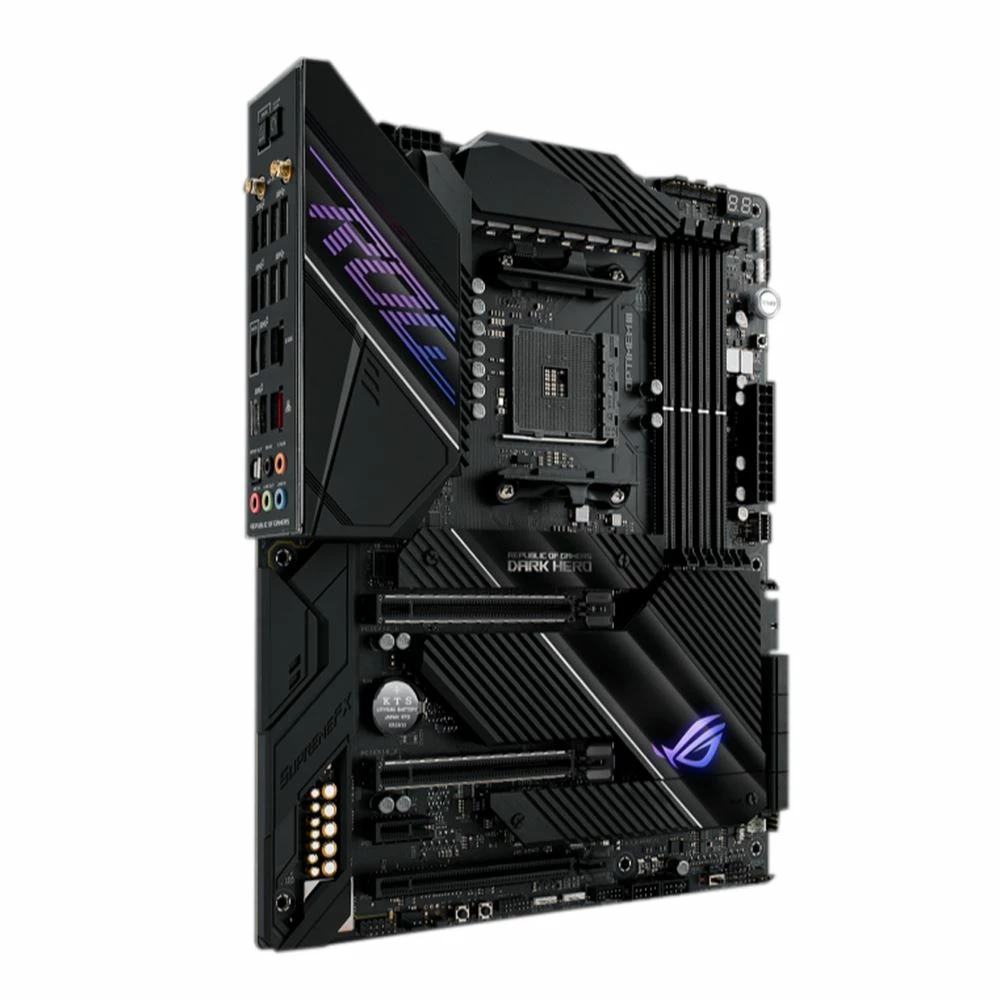

ROG Crosshair VIII Dark Hero gaming motherboard takes the enthusiast Crosshair pedigree to the next level with VRM power upgrade and passive chipset cooling solution, ready for the latest Zen 3 Ryzen 5000 Series. Featuring onboard Wi-Fi 6 (802.11ax), 2.5 Gbps Ethernet, and PCIe 4.0, Dark Hero is primed to deliver ultimate gaming performance.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
ROG Crosshair VIII Dark Hero gaming motherboard takes the enthusiast Crosshair pedigree to the next level with VRM power upgrade and passive chipset cooling solution, ready for the latest Zen 3 Ryzen 5000 Series. Featuring onboard Wi-Fi 6 (802.11ax), 2.5 Gbps Ethernet, and PCIe 4.0, Dark Hero is primed to deliver ultimate gaming performance.
| SKU | 205781 |
|---|---|
| Memory Speeds Supported | 4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 |
| UPC | 192876961629 |
| Packaging | Retail |
| Manageability | WfM 2.0 ACPI 6.2 SM BIOS 3.2 |
| BIOS | 256Mb AMI UEFI Bios |
| North Bridge | AMD X570 |
| Socket Type | AM4 |
| AMD CPU Support | Ryzen |
| Supported Memory Technologies | ECC Memory Supported Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Maximum Memory Supported Per Slot | 32GB |
| Audio Channels | 7.1 |
| Mfr Part# | ROGCH8DARKHERO |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Multi-GPU Support | 2-Way CrossFireX 3-Way CrossfireX 2-Way SLI |
| M.2 Port Type | 2242 2260 2280 22110 |
| SATA Express | 2 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 8 |
| RAID Support | RAID 0 RAID 1 RAID 10 |
| Audio Chipset | ROG SupremeFX |
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2666 DDR4-2933 DDR4-3200 DDR4-2800 DDR4-3000 |
| WiFi Support | Onboard WiFi |

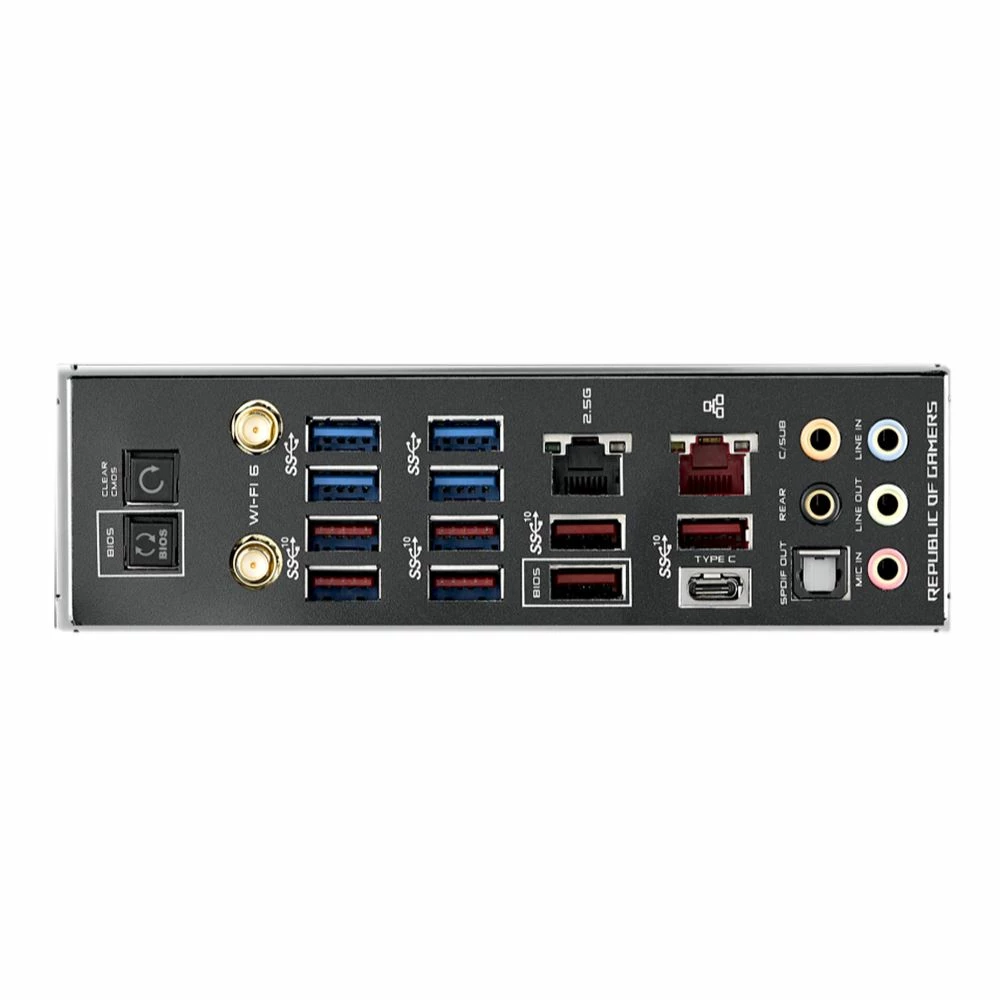

| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Line-Out |
| Digital Audio | 1 x Optical |
| LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN Chipset | Intel Wi-Fi 6 AX200 |
| Wireless Technology | 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) |
| PCI Express 4.0 x16 | 2 |
| PCI Express 3.0 x16 | 1 |
| PCI Express x1 | 1 |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 3.1 | 7 x USB 3.2 (Gen 2 Type-A) 4 x USB 3.2 (Gen 1 Type-A) 1 x USB 3.2 (Gen 2 Type-C) |
| LAN Ports | 1 x 10/100/1000 RJ-45 LAN 1 x 10/100/1000/2500 RJ-45 LAN |
| LAN Chipset | Realtek RTL8125-CG |
| LAN 2 Chipset | Intel I211-AT |
| Headers | 1 x CPU Fan Header 3 x System Fan Header |
| USB | 2 x USB 2.0 Headers (4 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) 1 x USB 3.2 Gen 2 Type-A Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector 1 x 4-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | ATX |
| Parts | 3 Years |
| Labor | 3 Years |

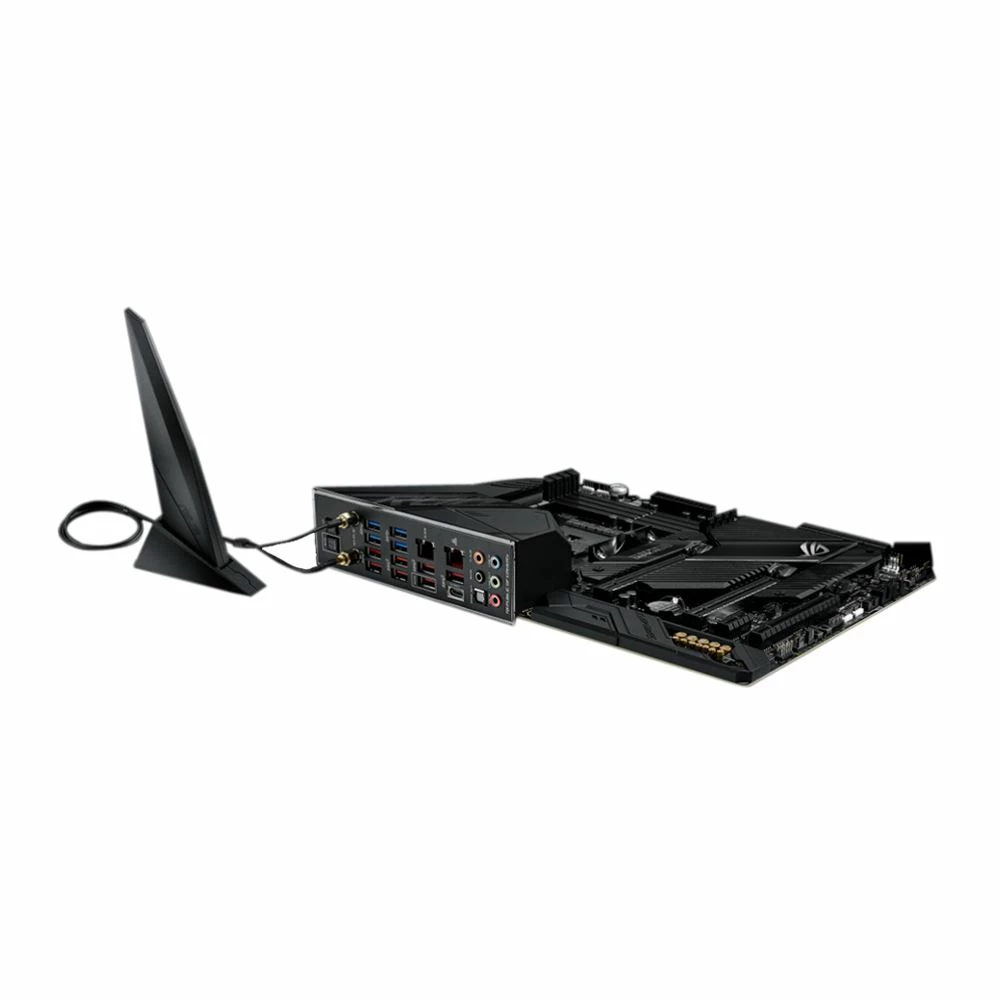

| What's in the Box | 1 x Addressable RGB extension cable, 1 x RGB extension cable, 4 x SATA 6Gb/s cables, 1 x M.2 SSD screw package(s), 1 x Q-connector, 1 x ROG logo plate stickers, 1 x ROG stickers, 1 x ROG thank you card, 1 x ASUS 2×2 Dual-Band Wi-Fi moving antennas, 1 x Support DVD, 1 x User manual |
Be the first to review “ASUS X570 ROG Crosshair VIII Dark Hero AMD AM4 ATX Motherboard”
