Sale!
$97.99

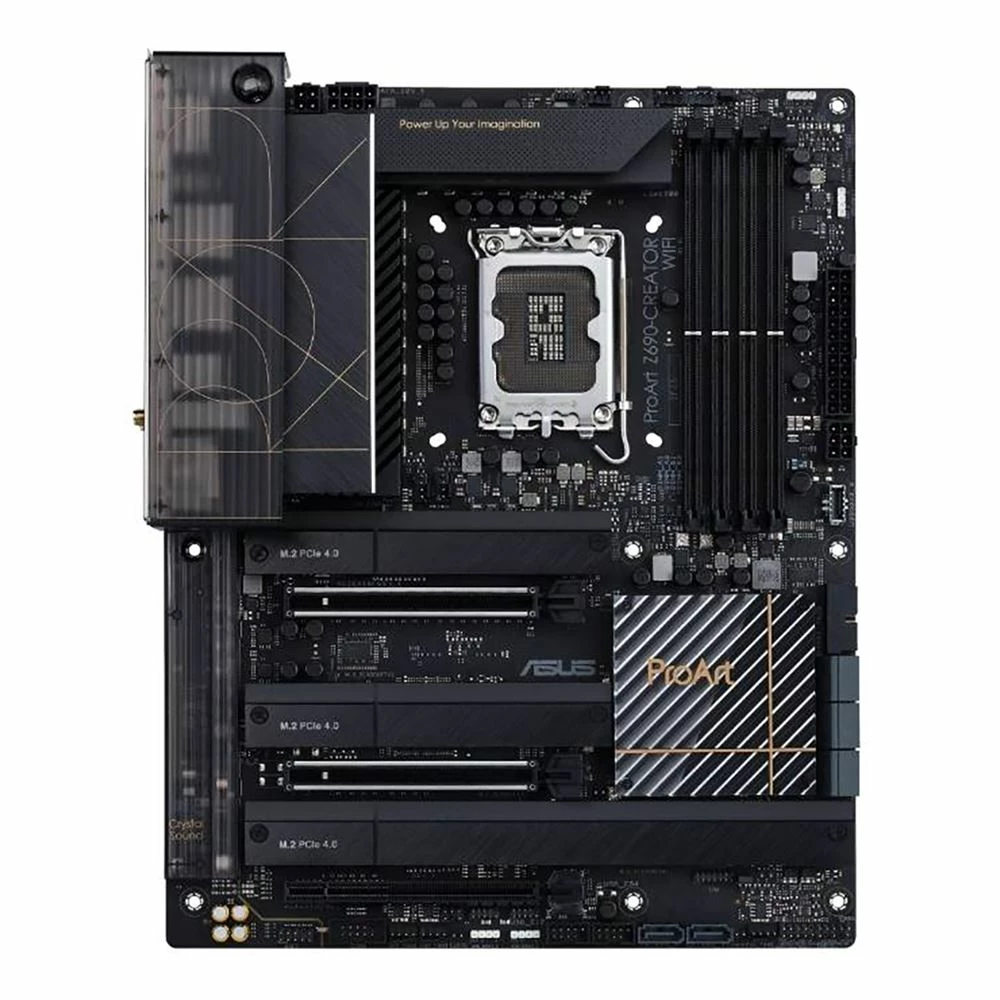

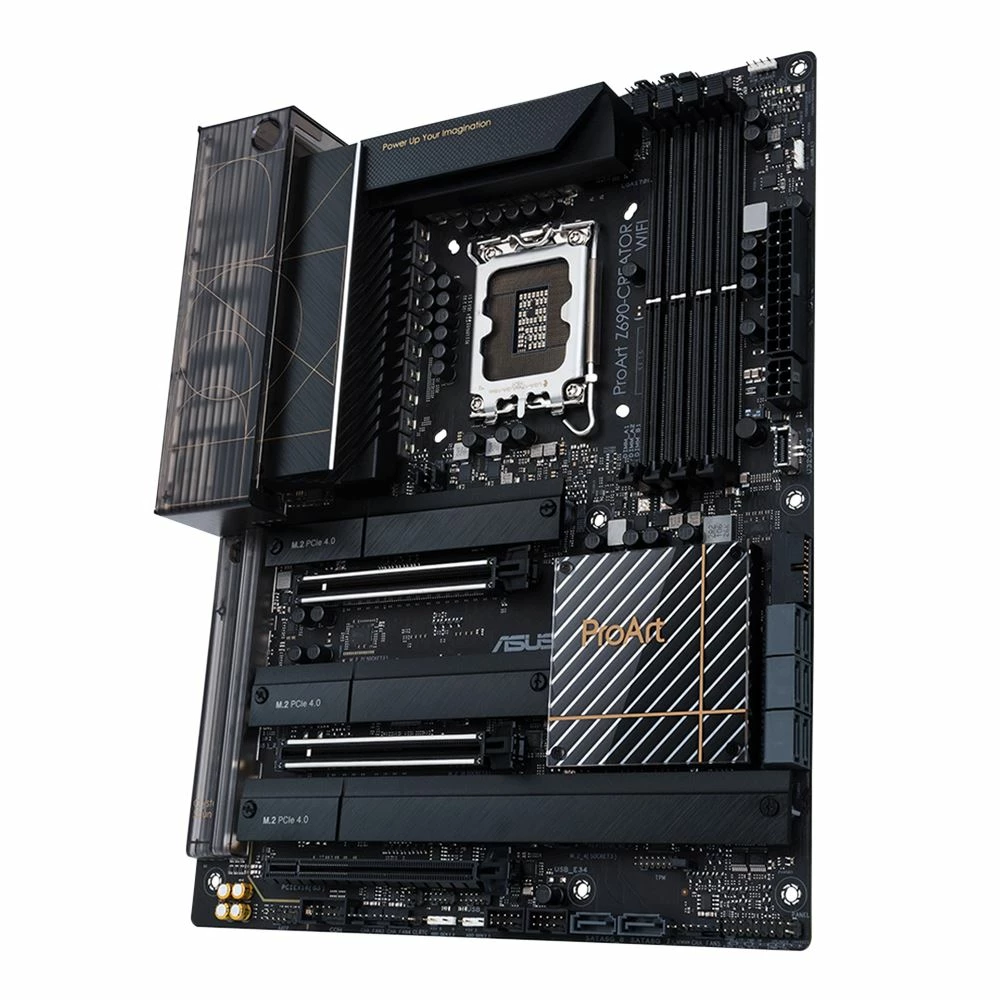

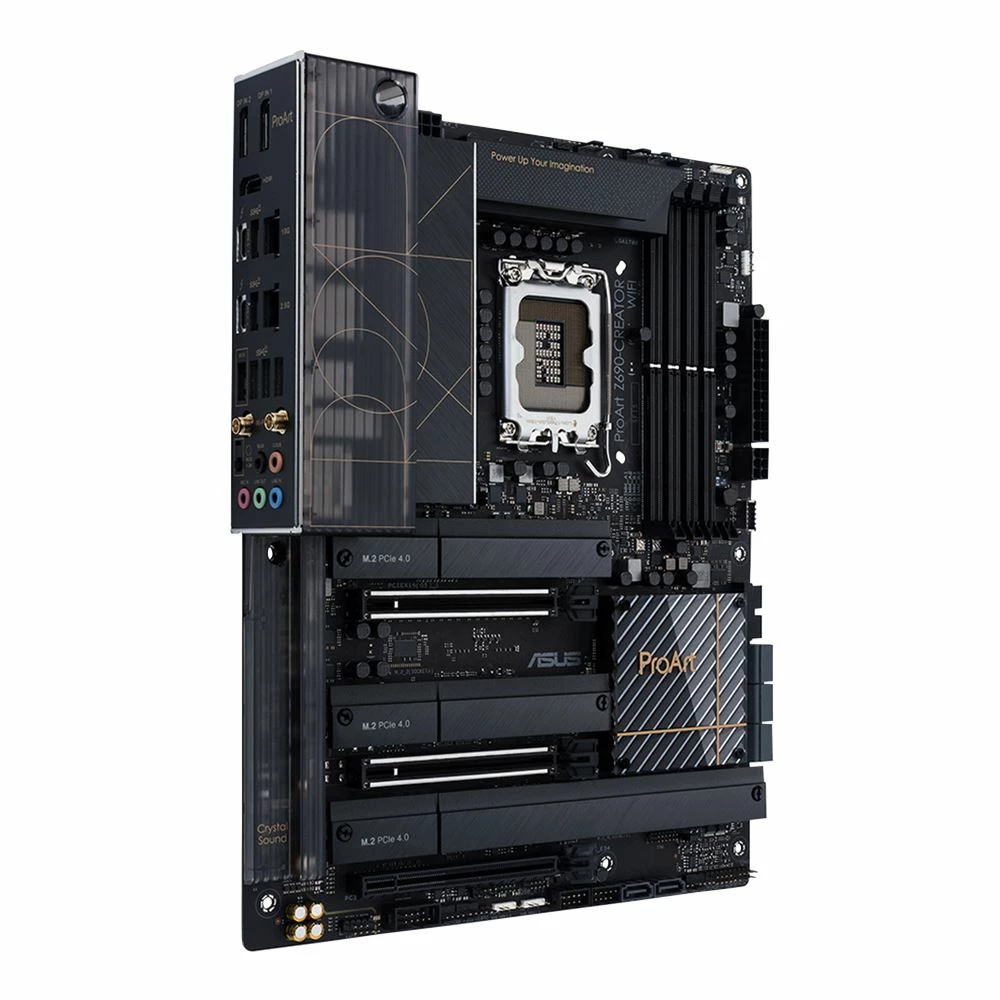

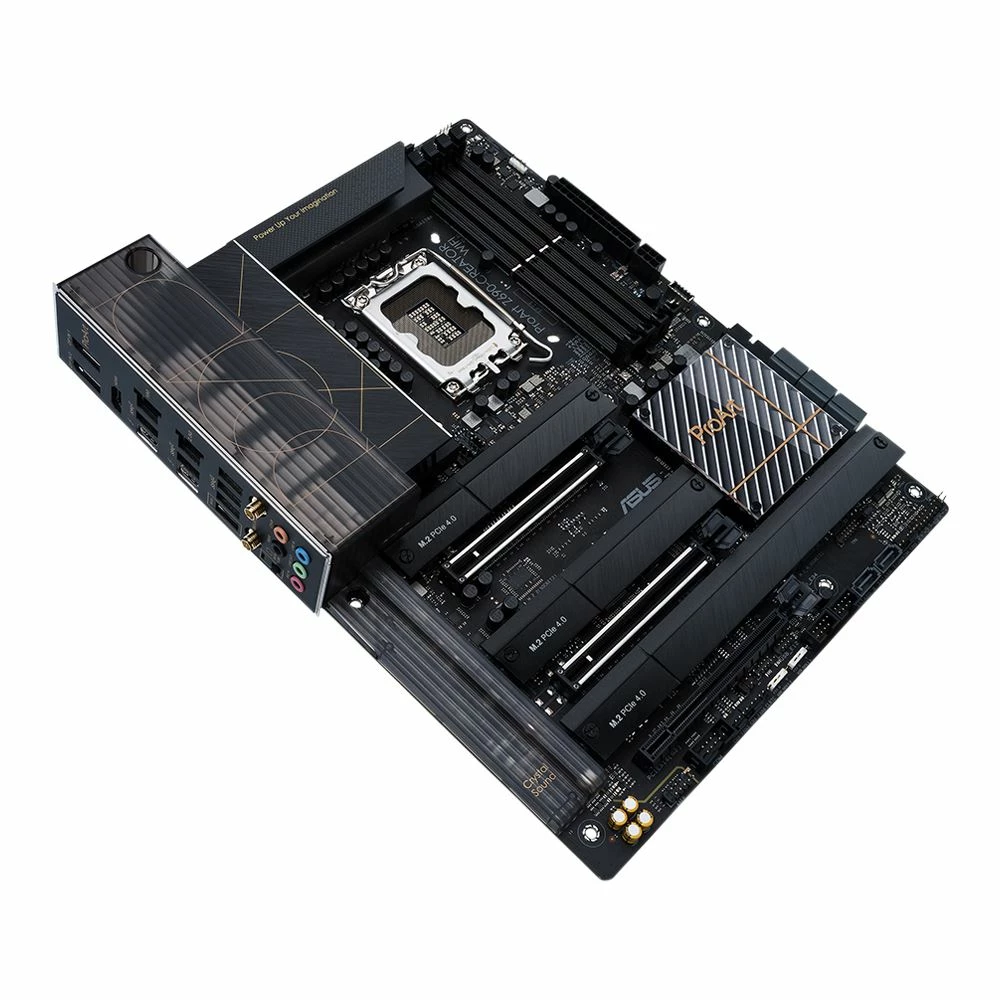

ProArt Z690-Creator WiFi empowers creators of all levels by maximizing the performance of 12th Gen Intel Core processors with powerful hardware and software, efficient cooling and lightning-fast connectivity including Thunderbolt 4, onboard 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
ProArt Z690-Creator WiFi empowers creators of all levels by maximizing the performance of 12th Gen Intel Core processors with powerful hardware and software, efficient cooling and lightning-fast connectivity including Thunderbolt 4, onboard 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E.
| SKU | 350967 |
|---|---|
| Memory Speeds Supported | 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 |
| Packaging | Retail |
| Microsoft Certifications | Windows 11 Ready |
| BIOS | 256Mb AMI UEFI Bios |
| North Bridge | Intel Z690 |
| Socket Type | LGA 1700 |
| Intel CPU Support | Core i7 Core i5 Core i3 Celeron Pentium Core i9 |
| Supported Memory Technologies | Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Maximum Memory Supported Per Slot | 32GB |
| Audio Channels | 7.1 |
| Memory Type | DDR5-4800 |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2242 2260 2280 22110 |
| SATA Express | 4 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 8 |
| RAID Support | RAID 0 RAID 1 RAID 5 RAID 10 |
| Audio Chipset | Realtek S1220A |
| UPC | 195553460736 |
| Mfr Part# | Z690-CREATOR WF |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN 1 x 100/1000/2500/5000/10000Mbps |
| LAN 2 Chipset | Intel 2.5Gb Ethernet |
| Wireless LAN Chipset | Intel 2×2 Wi-Fi 6E |
| Wireless Technology | 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.2 |
| PCI Express 5.0 x16 | 2 |
| PCI Express 3.0 x16 | 1 |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 3.1 | 6 x USB 3.2 (Gen 2 Type-A) |

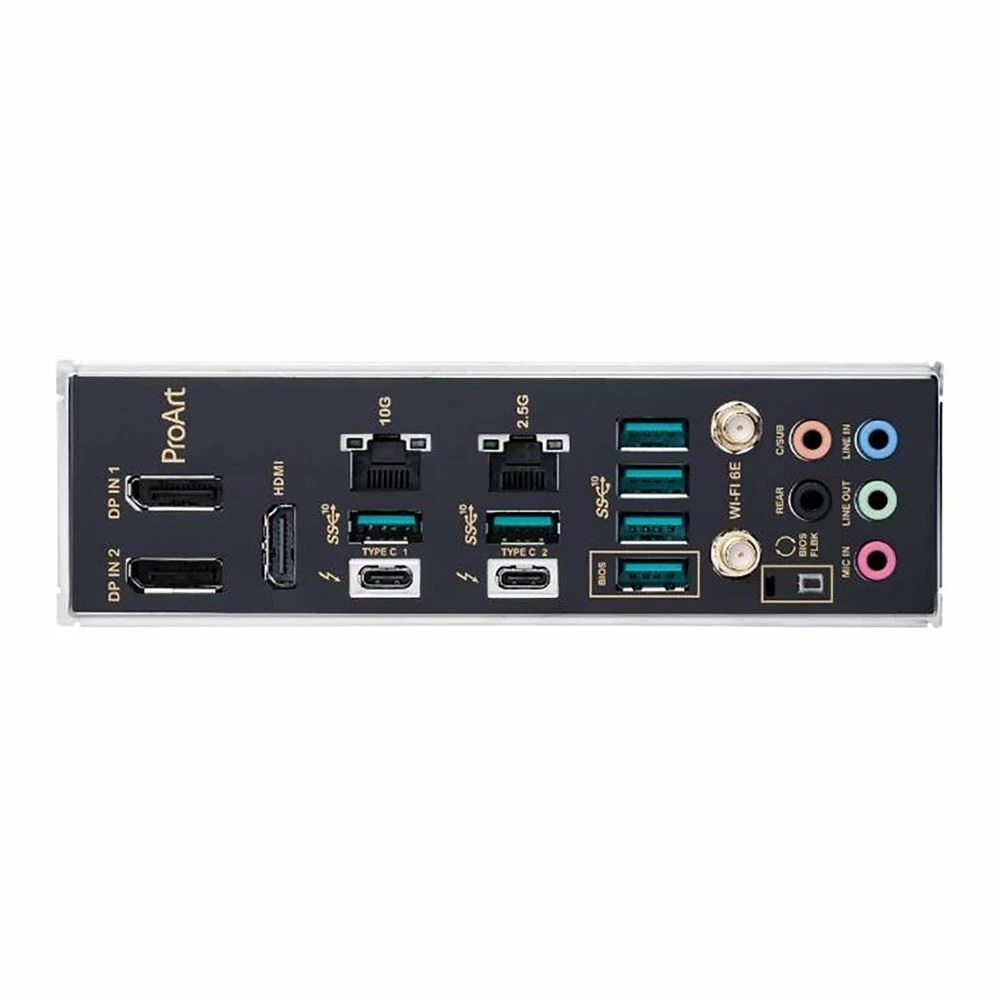

| Video Connectors | 2 x DisplayPort IN 1 x HDMI 2.1 |
| Thunderbolt Ports | 2 x Thunderbolt 4 |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Line-Out |
| Headers | 1 x Water Pump Header 2 x CPU Fan Header 5 x System Fan Header |
| LAN Chipset | Marvell 10Gb Ethernet |
| USB | 2 x USB 2.0 Headers (4 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) 1 x USB 3.2 Gen 2×2 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector 1 x 4-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | ATX |
| Parts | 3 Years |
| Labor | 3 Years |
| LAN Speed | 100/1000/2500/5000/10000Mbps |

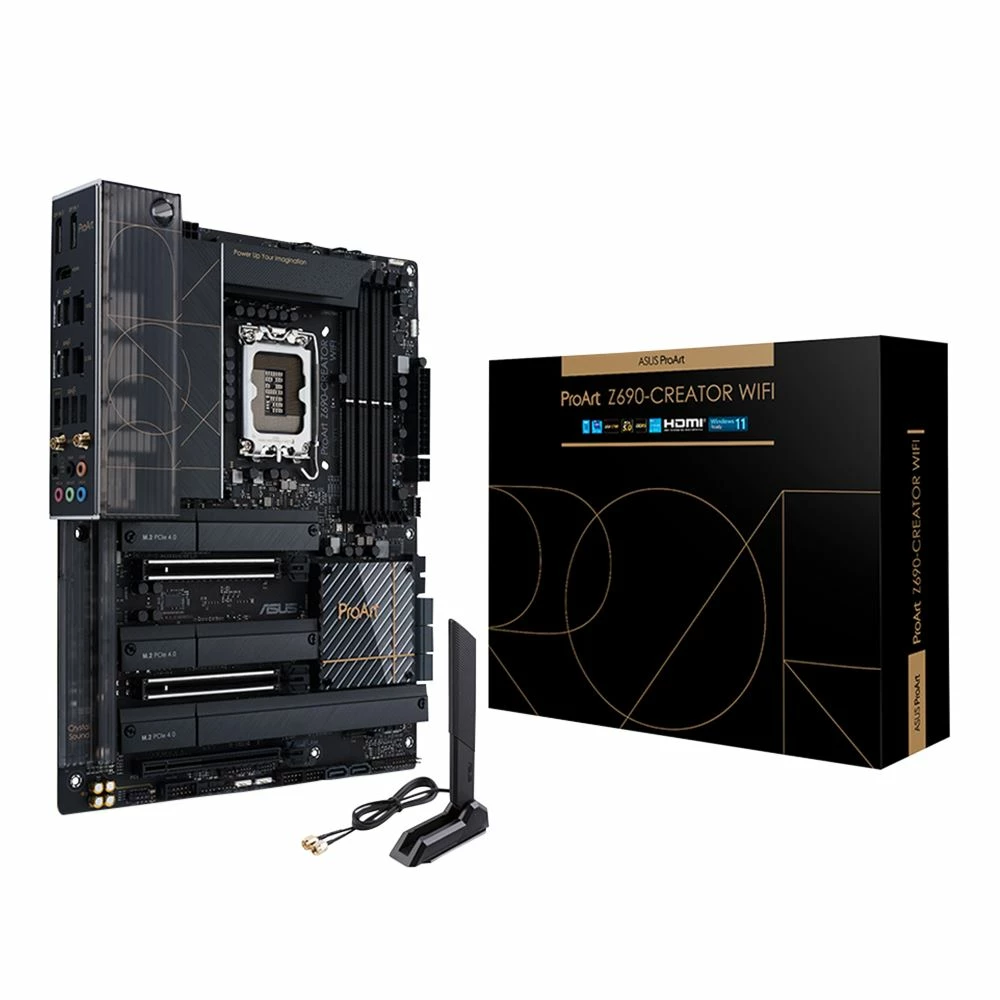

| What's in the Box | Motherboard, DisplayPort Cable, 4x SATA Cable, Antennas, M.2 Rubber Packages, Q Connector, Driver Disc, Guide ACC Express Activation Key Card |
