Sale!
$98.99

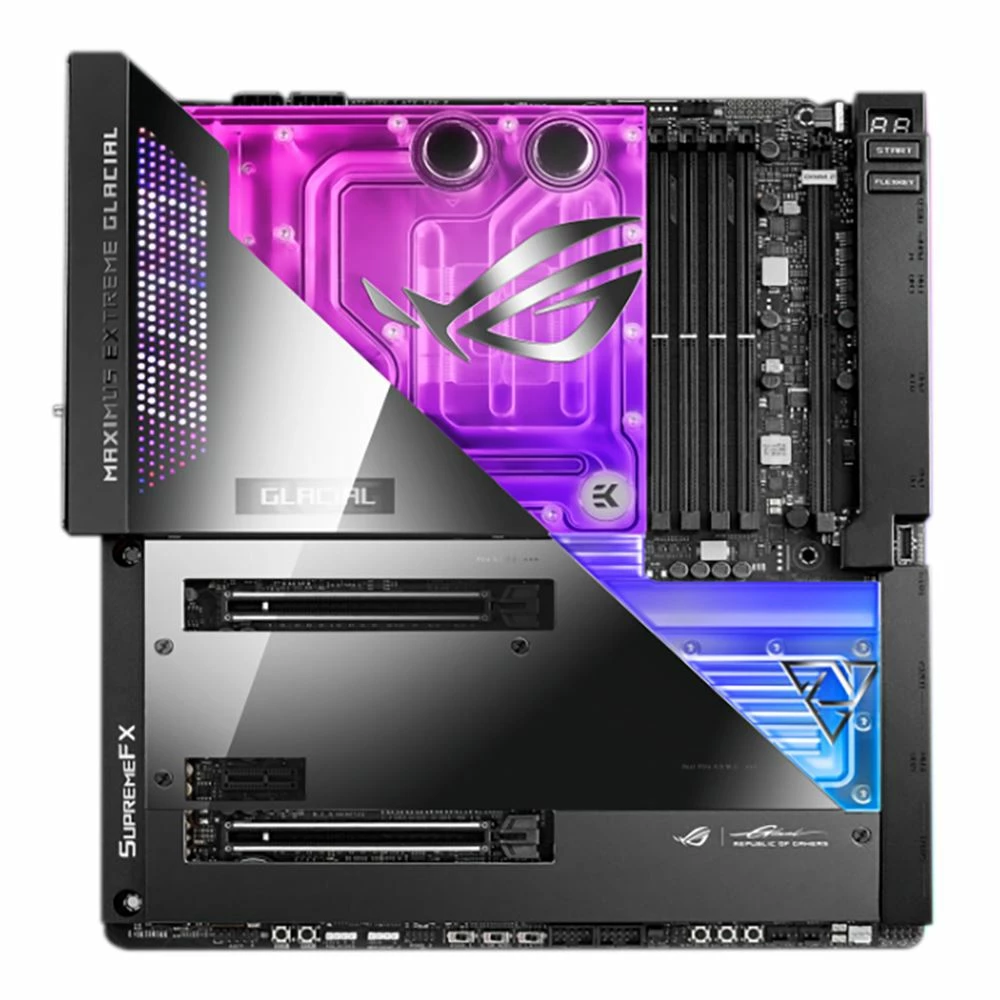

ROG Maximus Z690 Extreme Glacial is the pinnacle of liquid-cooled engineering. It features an eye-catching monolithic cooling system known simply as the EK UltraBlock, which can effortlessly chill the entire motherboard with a carefully engineered labyrinth of water channels, sensors, and heatsinks. The Z690 Extreme Glacial also builds upon knowledge gained from engineering the previous generation to ambitiously expand an already ample landscape of heatsinks and coolant circulation. Two additional M.2 slots now benefit from UltraBlock magic, and VRM cooling has been boosted even further to support the power stages that 12th Gen Intel Core processors can take advantage of.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
ROG Maximus Z690 Extreme Glacial is the pinnacle of liquid-cooled engineering. It features an eye-catching monolithic cooling system known simply as the EK UltraBlock, which can effortlessly chill the entire motherboard with a carefully engineered labyrinth of water channels, sensors, and heatsinks. The Z690 Extreme Glacial also builds upon knowledge gained from engineering the previous generation to ambitiously expand an already ample landscape of heatsinks and coolant circulation. Two additional M.2 slots now benefit from UltraBlock magic, and VRM cooling has been boosted even further to support the power stages that 12th Gen Intel Core processors can take advantage of.
| SKU | 353789 |
|---|---|
| Memory Type | DDR5-4800 |
| UPC | 195553463409 |
| Packaging | Retail |
| Microsoft Certifications | Windows 11 Ready |
| Manageability | WOL PXE |
| BIOS | 2 x 256Mb UEFI AMI BIOS Flash ROM |
| North Bridge | Intel Z690 |
| Socket Type | LGA 1700 |
| Intel CPU Support | Core i7 Core i5 Core i3 Celeron Pentium Core i9 |
| Supported Memory Technologies | Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Audio Channels | 7.1 |
| Mfr Part# | Z690EXTREMEGC |
| Memory Speeds Supported | 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2242 2260 2280 22110 |
| SATA Express | 5 x M.2 Socket 3 M key |
| SATA 6Gb/s | 6 |
| RAID Support | RAID 0 RAID 1 RAID 5 RAID 10 |
| Audio Chipset | ROG SupremeFX ALC4082 |
| Maximum Memory Supported Per Slot | 32GB |
| WiFi Support | Onboard WiFi |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN 1 x 100/1000/2500/5000/10000Mbps |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Line-Out |
| LAN Speed | 100/1000/2500/5000/10000Mbps |
| Wireless LAN Chipset | Intel Wi-Fi 6E |
| Wireless Technology | 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) |
| PCI Express 5.0 x16 | 2 |
| PCI Express x1 | 1 |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 3.1 | 7 x USB 3.2 (Gen 2 Type-A) 1 x USB 3.2 (Gen 2 Type-C) 1 x USB 3.2 (Gen 2×2 Type-C) |
| Video Connectors | 1 x HDMI 2.1 |
| Thunderbolt Ports | 1 x Thunderbolt 4 |
| LAN Chipset | Marvell AQtion 10Gb Ethernet |
| LAN 2 Chipset | Intel 2.5Gb Ethernet |
| Digital Audio | 1 x Optical |
| Headers | 4 x System Fan Header 2 x Water Pump Header |
| USB | 2 x USB 2.0 Headers (4 Ports) 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports) 1 x USB 3.2 Gen 2×2 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 6-pin +12 V Connector 2 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 10.91 in. (277.00 mm) |
| Form Factor | eATX |
| Parts | 3 Years |
| Labor | 3 Years |

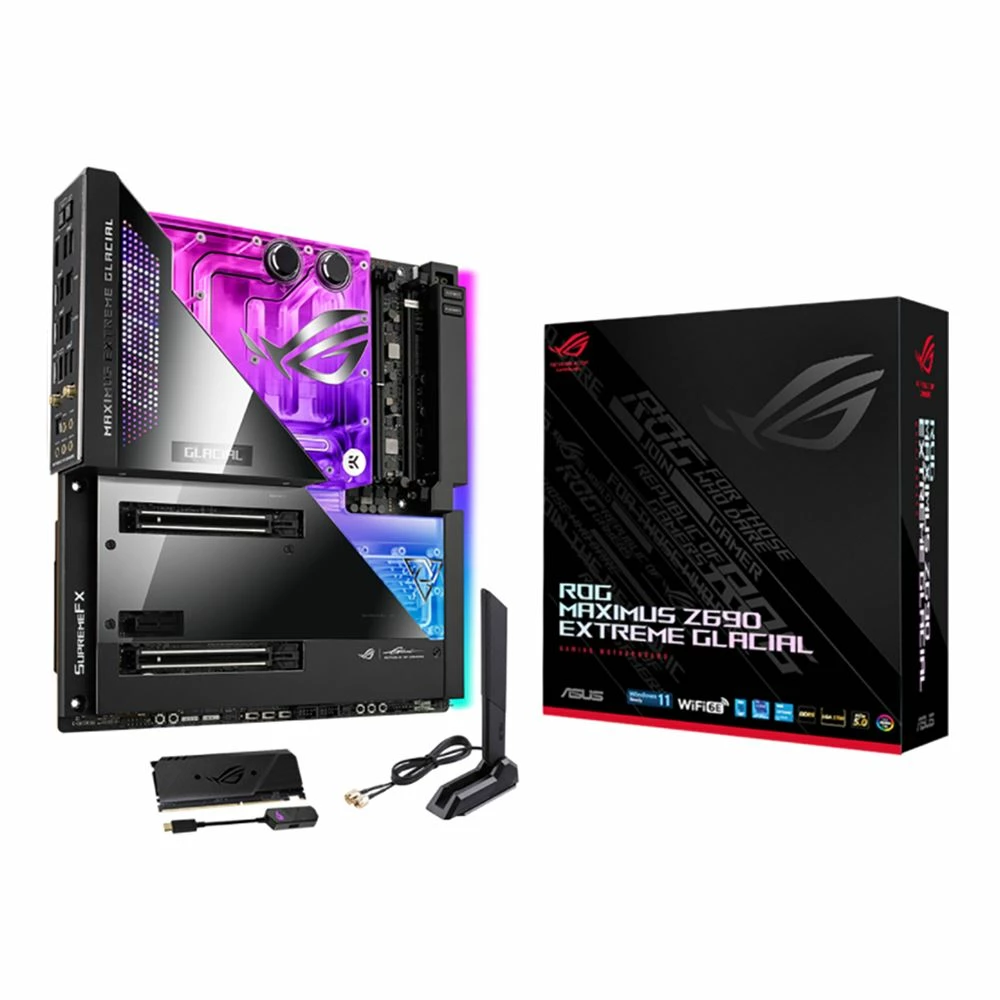

| What's in the Box | Motherboard, ARGB Splitter Cables, Fan Splitter Cables, RGB Extension Cable, SATA Cables, Thermistor Cables, ROG Fan Controller, ROG DIMM.2, Monoblock and Mounting Hardware, Antennas, M.2 Screws, Q Connector, ROG CLAVIS DAC, ROG Graphics Card Holder, ROG Key Chain, ROG Logo Plate Stickers, ROG Stickers, ROG Screwdriver, USB Drive w/ Drivers, Guide |
