$92.99

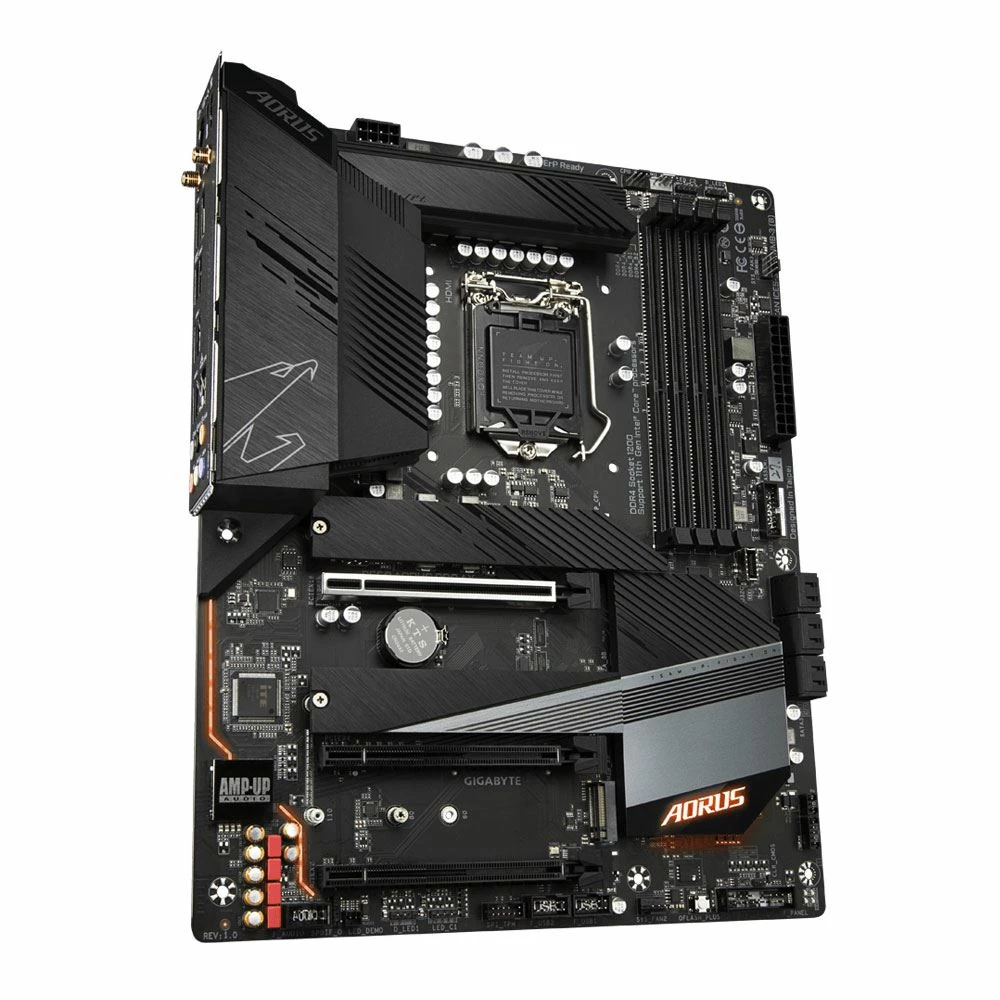

The B560 AORUS PRO AX comes with upgraded power solution, incredible cooling design, all PCIe 4.0 design and outstanding connectivity to elevate your gaming experience to the next level.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
The B560 AORUS PRO AX comes with upgraded power solution, incredible cooling design, all PCIe 4.0 design and outstanding connectivity to elevate your gaming experience to the next level.
| SKU | 250365 |
|---|---|
| WiFi Support | Onboard WiFi |
| Packaging | Retail |
| Manageability | PnP 1.0a WfM 2.0 SM BIOS 2.7 ACPI 5.0 DMI 2.7 |
| BIOS | 256Mb AMI UEFI Bios |
| North Bridge | Intel B560 |
| Socket Type | LGA 1200 |
| Intel CPU Support | Core i7 Core i5 Core i3 Celeron Pentium Core i9 |
| Supported Memory Technologies | ECC Memory Supported Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Maximum Memory Supported Per Slot | 32GB |
| Memory Speeds Supported | 3200/3000/2933/2666/2400/2133MHz |
| Memory Slots | 4 x 288pin DIMM |
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2666 DDR4-2933 DDR4-3200 DDR4-3000 |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| Multi-GPU Support | 2-Way CrossFire |
| M.2 Port Type | 2260 2280 22110 |
| SATA Express | 3 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 6 |
| Audio Chipset | Realtek ALC4080 |
| Audio Channels | 7.1 |
| UPC | 889523026977 |
| Mfr Part# | B560 AORUS PRO |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Line-Out |
| Digital Audio | 1 x Optical |
| Wireless Technology | 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.1 |
| PCI Express 4.0 x16 | 1 |
| PCI Express 3.0 x16 | 2 |
| Legacy Ports | 1 x PS/2 |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 2.0 | 2 x USB 2.0 (Type-A) |
| USB 3.1 | 4 x USB 3.2 (Gen 1 Type-A) 1 x USB 3.2 (Gen 2×2 Type-C) 1 x USB 3.2 (Gen 2 Type-A) |
| Video Connectors | 1 x DisplayPort 1.2 1 x HDMI 1.4 |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| LAN Speed | 10/100/1000/2500Mbps |
| LAN Chipset | Intel 2.5GbE LAN |
| Headers | 1 x CPU Fan Header 3 x System Fan Header |
| USB | 2 x USB 2.0 Headers (4 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) 1 x USB 3.2 Gen 1 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | ATX |
| Parts | 3 Years |
| Labor | 3 Years |
| Wireless LAN Chipset | Intel Wi-Fi 6 AX200 |

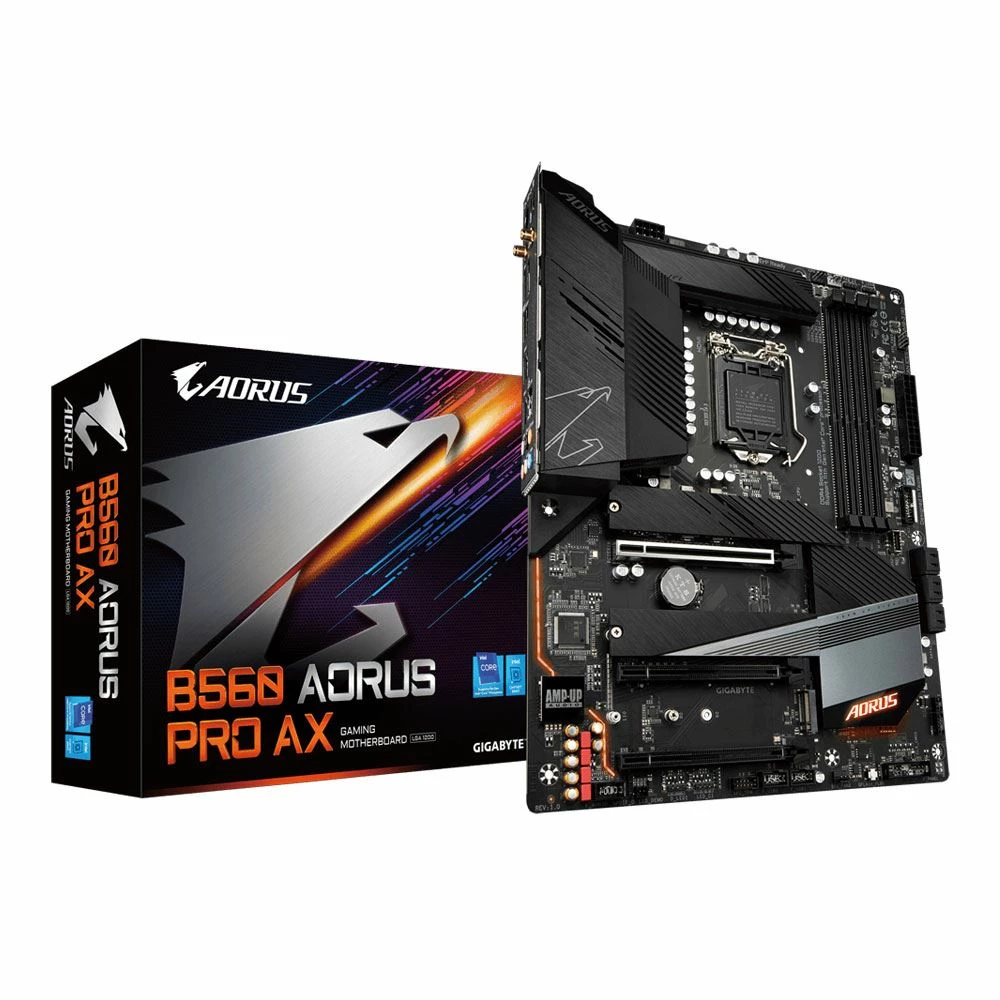

| What's in the Box | Motherboard, Manual, M.2 Screws, 2x SATA Cables, Antenna, G Connector |
