Original price was: $279.99.$93.99Current price is: $93.99.

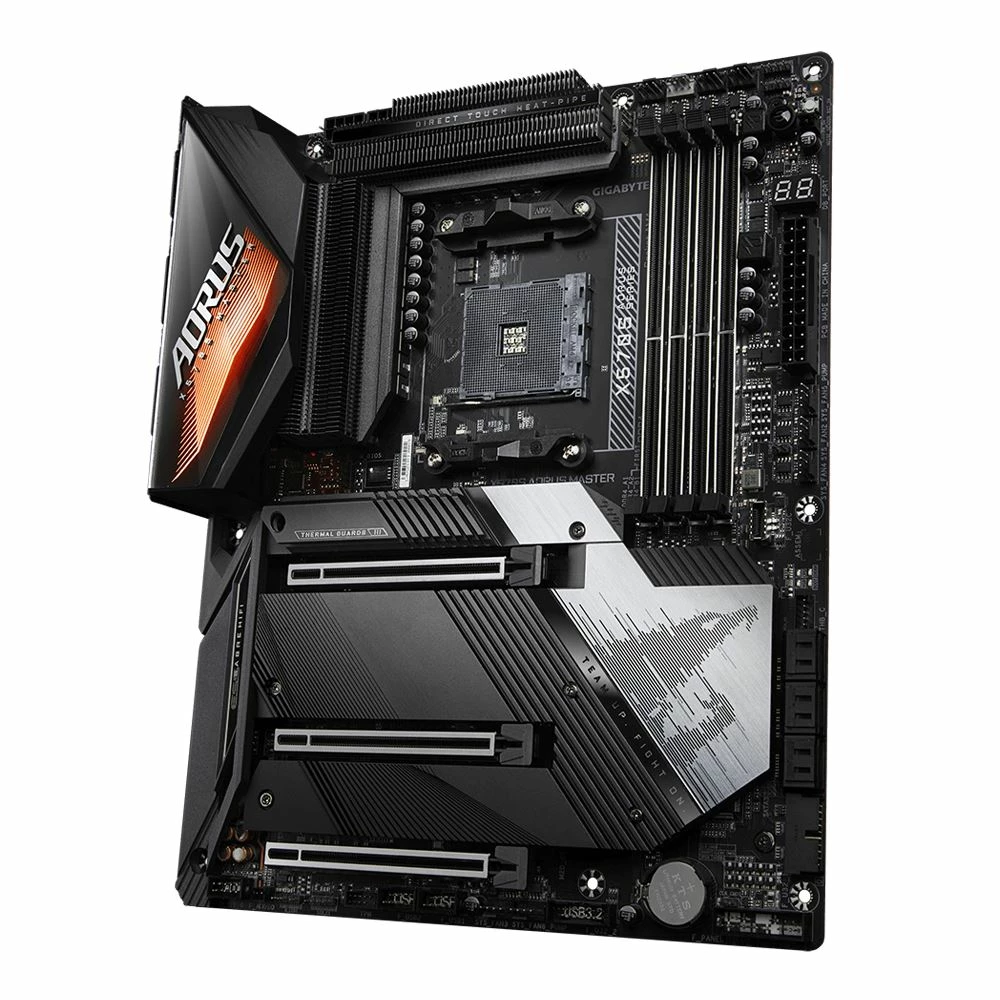

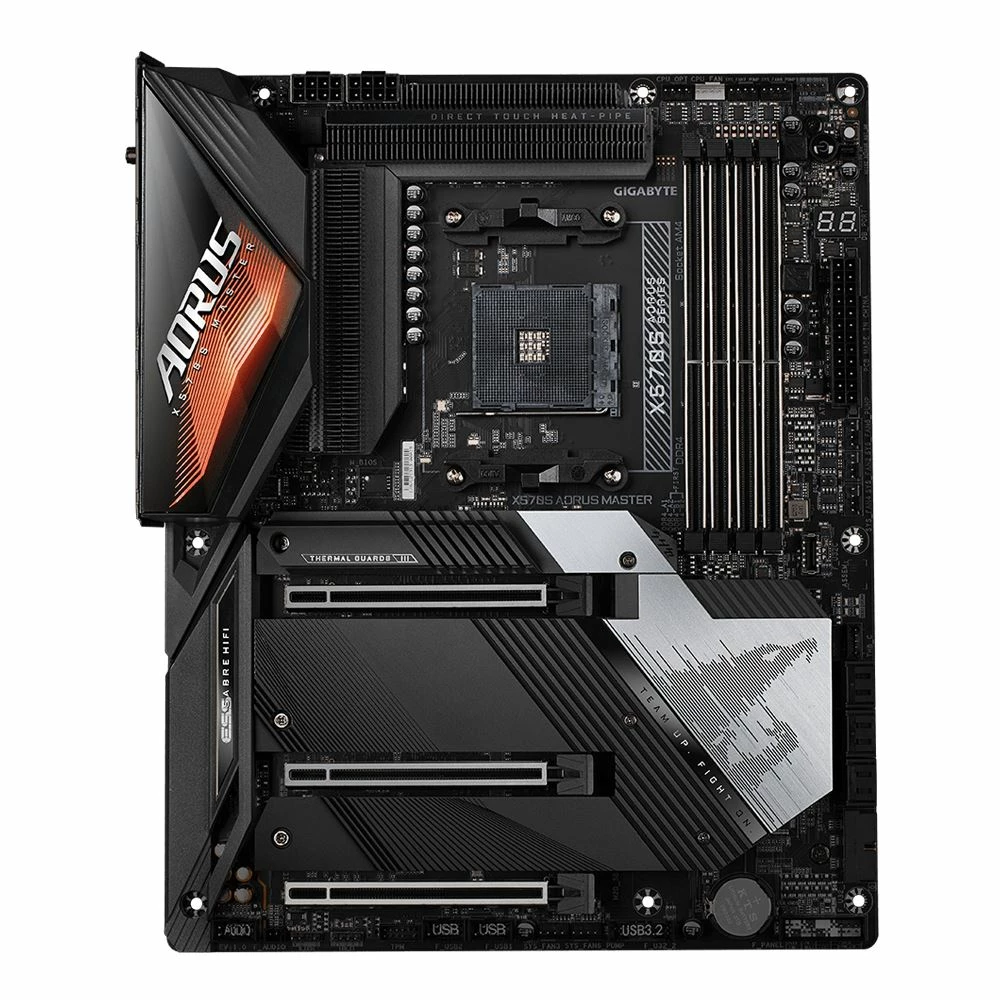

GIGABYTE X570S motherboards feature upgraded power solution, passive and silent thermal design, and PCIe 4.0 components to keep your gaming system up to fast and powerful, even under heavy workloads.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
GIGABYTE X570S motherboards feature upgraded power solution, passive and silent thermal design, and PCIe 4.0 components to keep your gaming system up to fast and powerful, even under heavy workloads.
| SKU | 328815 |
|---|---|
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2667 DDR4-2933 |
| UPC | 889523028735 |
| Packaging | Retail |
| Manageability | PnP 1.0a WfM 2.0 SM BIOS 2.7 ACPI 5.0 DMI 2.7 |
| BIOS | 256Mb AMI UEFI Bios |
| North Bridge | AMD X570 |
| Socket Type | AM4 |
| AMD CPU Support | Ryzen |
| Supported Memory Technologies | ECC Memory Supported Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Audio Chipset | Realtek ALC1220-VB |
| Mfr Part# | X570S AORUS MAS |
| Memory Speeds Supported | 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Multi-GPU Support | 2-Way CrossFire |
| M.2 Port Type | 2242 2280 22110 |
| SATA Express | 3 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 6 |
| RAID Support | RAID 0 RAID 1 RAID 10 |
| Maximum Memory Supported Per Slot | 32GB |
| Audio Channels | 7.1 |

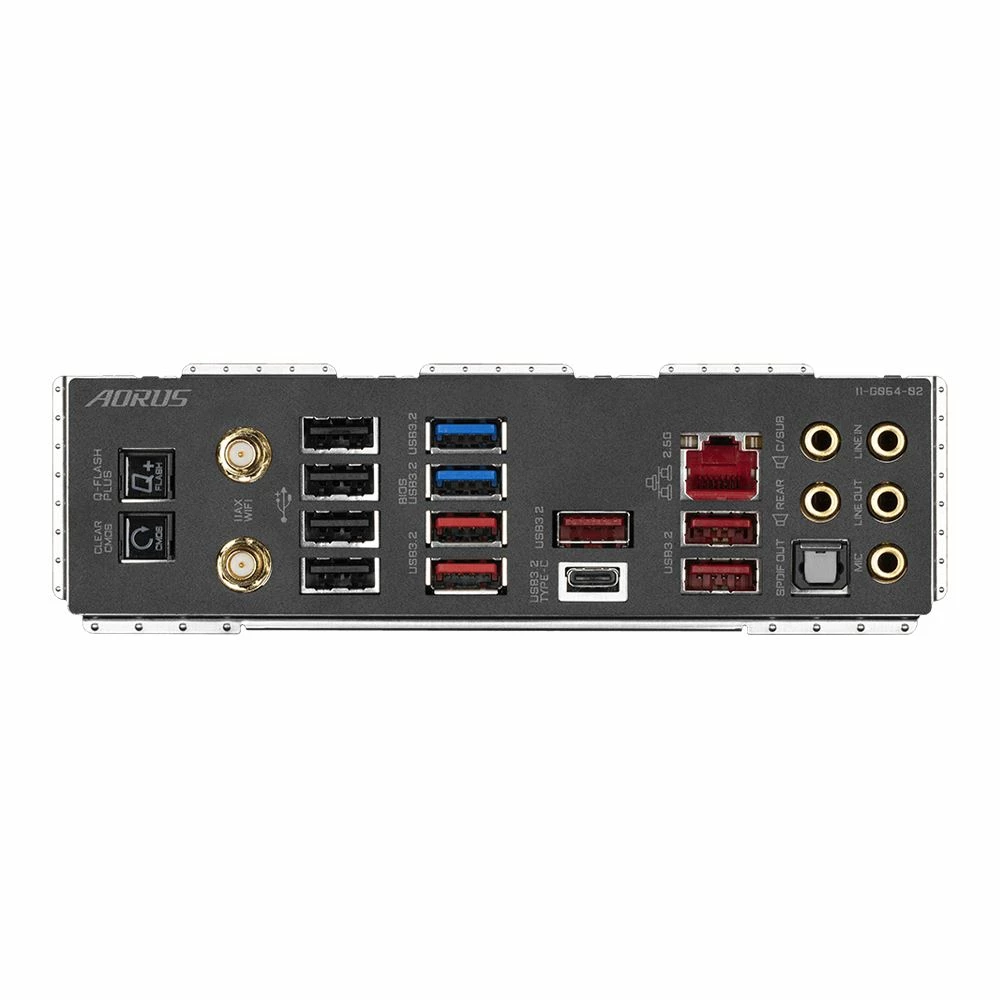

| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Line-Out |
| Digital Audio | 1 x Optical |
| LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN Chipset | Intel Wi-Fi 6E AX210 |
| Wireless Technology | 802.11b 802.11g 802.11a Bluetooth v5.0 WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) |
| PCI Express 4.0 x16 | 3 |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 2.0 | 4 x USB 2.0 (Type-A) |
| USB 3.1 | 1 x USB 3.2 (Gen 2×2 Type-C) 2 x USB 3.2 (Gen 1 Type-A) 5 x USB 3.2 (Gen 2 Type-A) |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| WiFi Support | Onboard WiFi |
| LAN Chipset | Intel 2.5Gb Ethernet |
| Headers | 1 x CPU Fan Header 4 x System Fan Header |
| USB | 2 x USB 2.0 Headers (4 Ports) 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports) 1 x USB 3.2 Gen 2 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 2 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | ATX |
| Parts | 3 Years |
| Labor | 3 Years |
| What's in the Box | Motherboard, Manual, Install Guide, 4x SATA Data Cables, Antenna, One G Connector, RGB Extension Cable, Noise Detection Cable, Velcro Cable Ties, Thermistors Cables, M.2 Cables |
