Sale!
$94.99

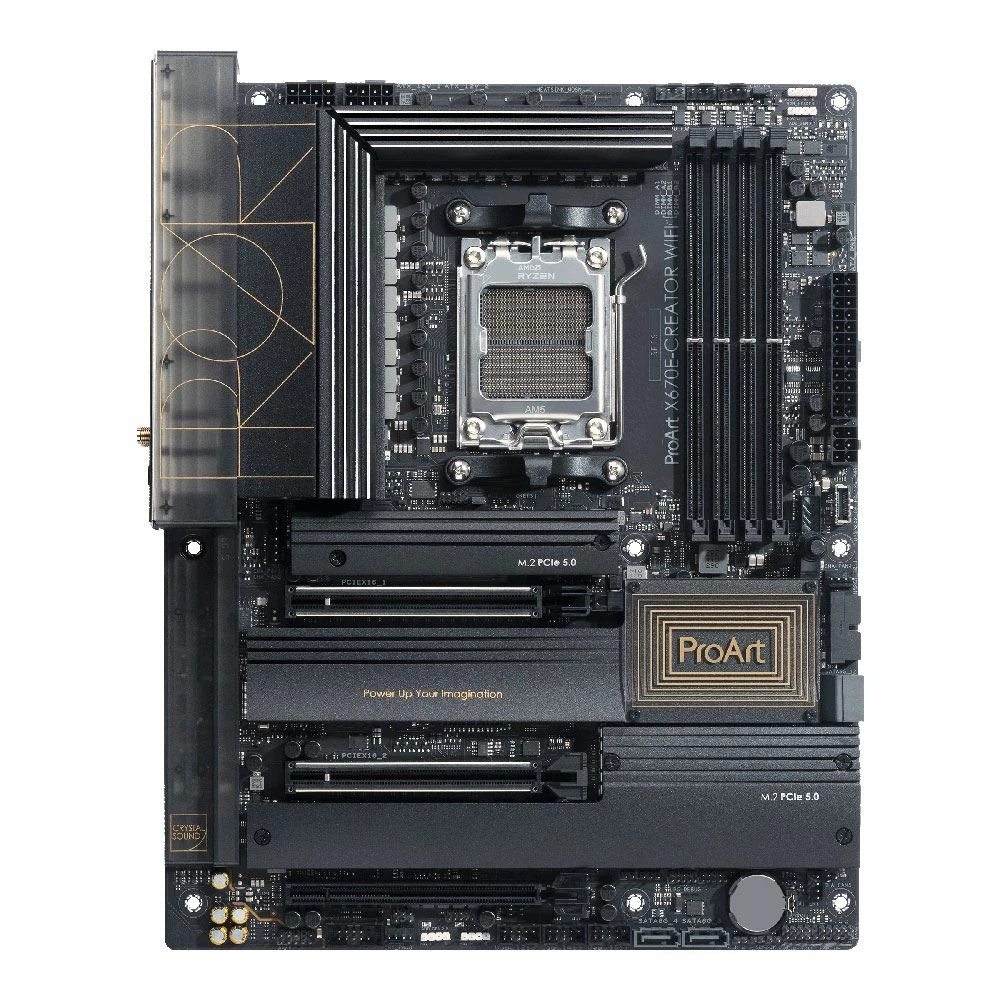

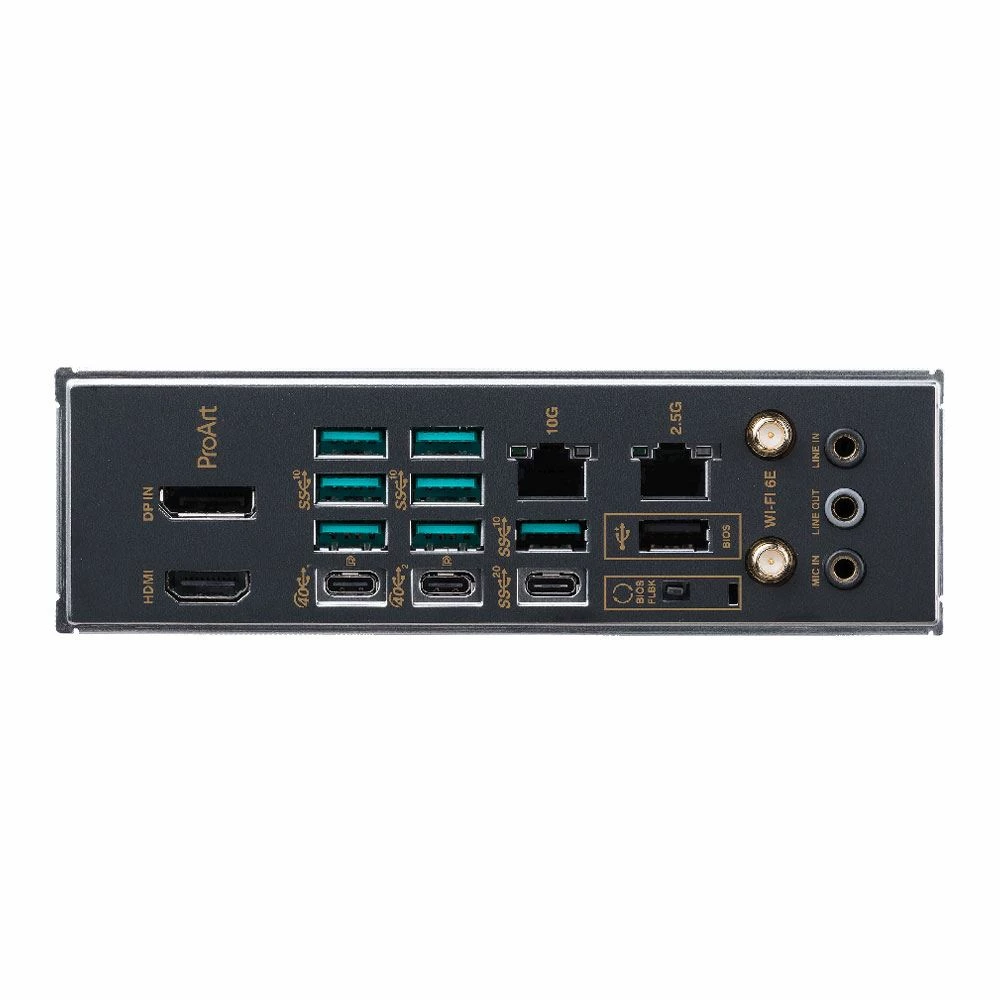

The ProArt X670E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen 7000 Series processors with 16+2 team power stages, DDR5 and PCIe 5.0 and lightning-fast connectivity including USB4, 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E. It manifests a professional, elegant and precise vision for content creators of all kinds with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
The ProArt X670E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen 7000 Series processors with 16+2 team power stages, DDR5 and PCIe 5.0 and lightning-fast connectivity including USB4, 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E. It manifests a professional, elegant and precise vision for content creators of all kinds with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.
| SKU | 432567 |
|---|---|
| Memory Speeds Supported | 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 |
| Packaging | Retail |
| Manageability | WOL PXE |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| North Bridge | AMD X670E |
| Socket Type | AM5 |
| AMD CPU Support | Ryzen |
| Supported Memory Technologies | ECC Memory Supported Non-ECC Memory Supported Extreme Memory Profile (XMP) Extended Profiles for Overclocking (EXPO) |
| Maximum Memory Supported Per Slot | 32GB |
| Audio Channels | 7.1 |
| Memory Type | DDR5-4800 DDR5-5200 DDR5-5000 |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2242 2260 2280 22110 |
| SATA Express | 4 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 4 |
| RAID Support | RAID 0 RAID 1 RAID 10 |
| Audio Chipset | Realtek S1220A |
| UPC | 195553895897 |
| Mfr Part# | PAX670-E-CTR/WF |
| USB 3.1 | 7 x USB 3.2 (Gen 2 Type-A) 1 x USB 3.2 (Gen 2×2 Type-C) |
| LAN Chipset | Marvell AQtion 10Gb Ethernet |
| LAN Speed | 100/1000/2500/5000/10000Mbps |
| Wireless Technology | 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.2 |
| PCI Express 4.0 x16 | 1 |
| PCI Express 5.0 x16 | 2 |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN 1 x 100/1000/2500/5000/10000Mbps |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Line-Out |
| Thunderbolt Ports | 2 x Thunderbolt 4 |
| USB 2.0 | 1 x USB 2.0 (Type-A) |
| Video Connectors | 1 x HDMI 2.1 1 x DisplayPort In |
| Headers | 1 x Water Pump Header 2 x CPU Fan Header 5 x System Fan Header |
| WiFi Support | Onboard WiFi |
| USB | 3 x USB 2.0 Headers (6 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) 1 x USB 3.2 Gen 2×2 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 6-pin +12 V Connector 2 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 9.60 in. (243.84 mm) |
| Form Factor | ATX |
| Parts | 3 Years |
| Labor | 3 Years |
| LAN 2 Chipset | Intel 2.5Gb Ethernet |

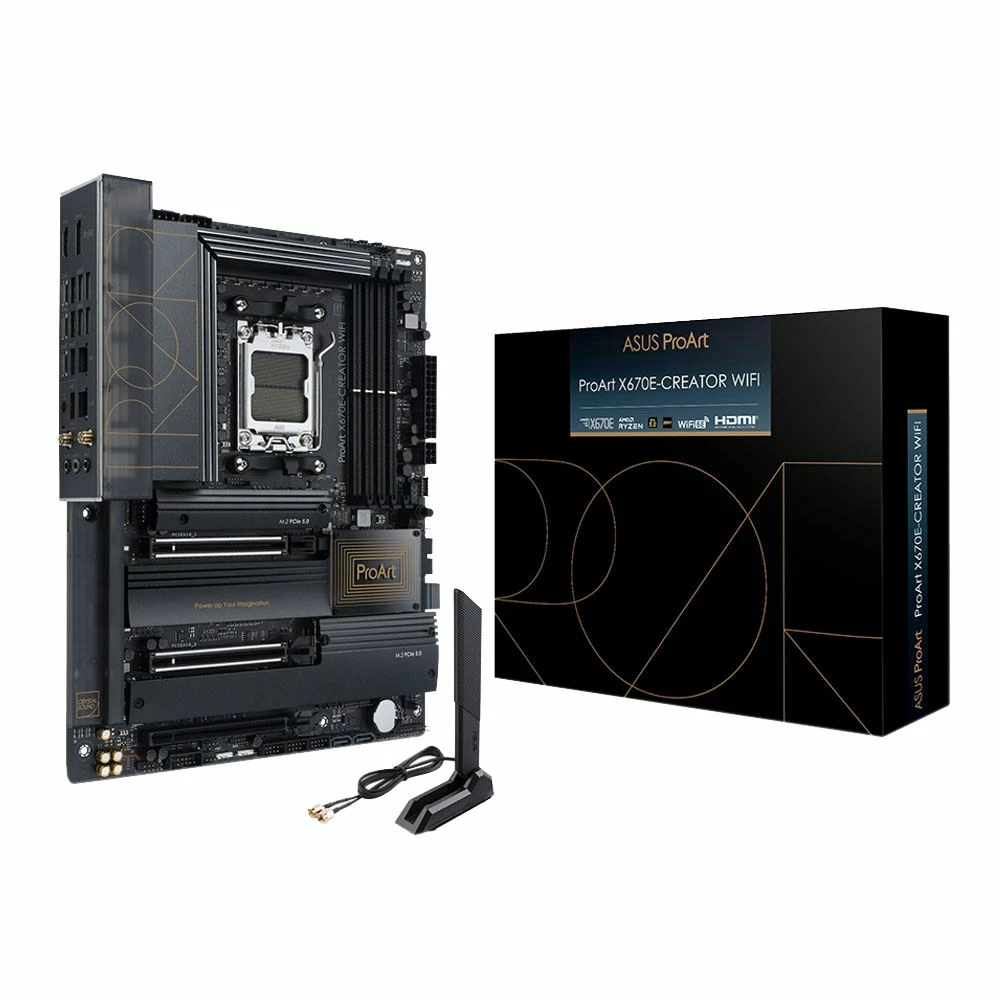

| What's in the Box | 1 x DisplayPort cable, 4 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antennas, 1 x Q-connector, 1 x M.2 Q-Latch package for M.2 backplate, 2 x Rubber Packages for M.2, 1 x Rubber Package for M.2 backplate, 1 x Screw packages for M.2 SSD, 1 x ProArt ruler, 1 x ACC Express Activation Key Card, 1 x User guide |
