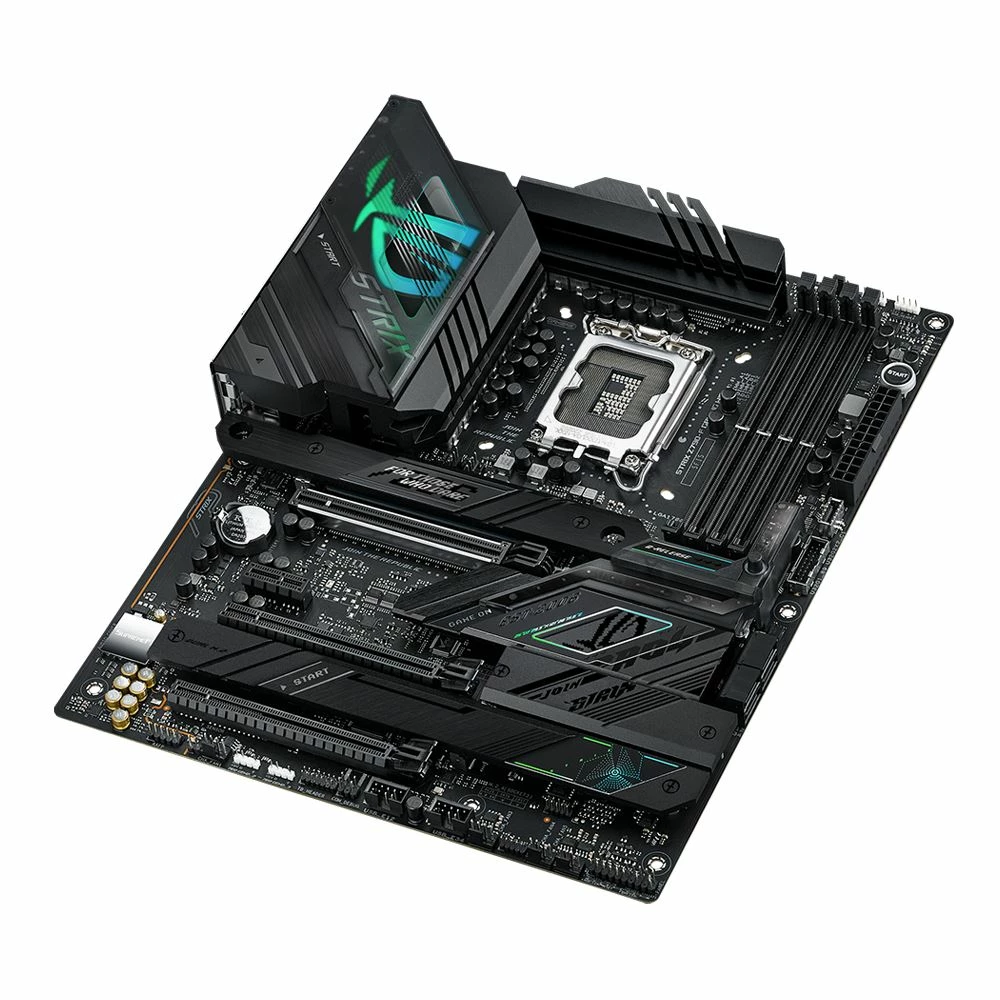

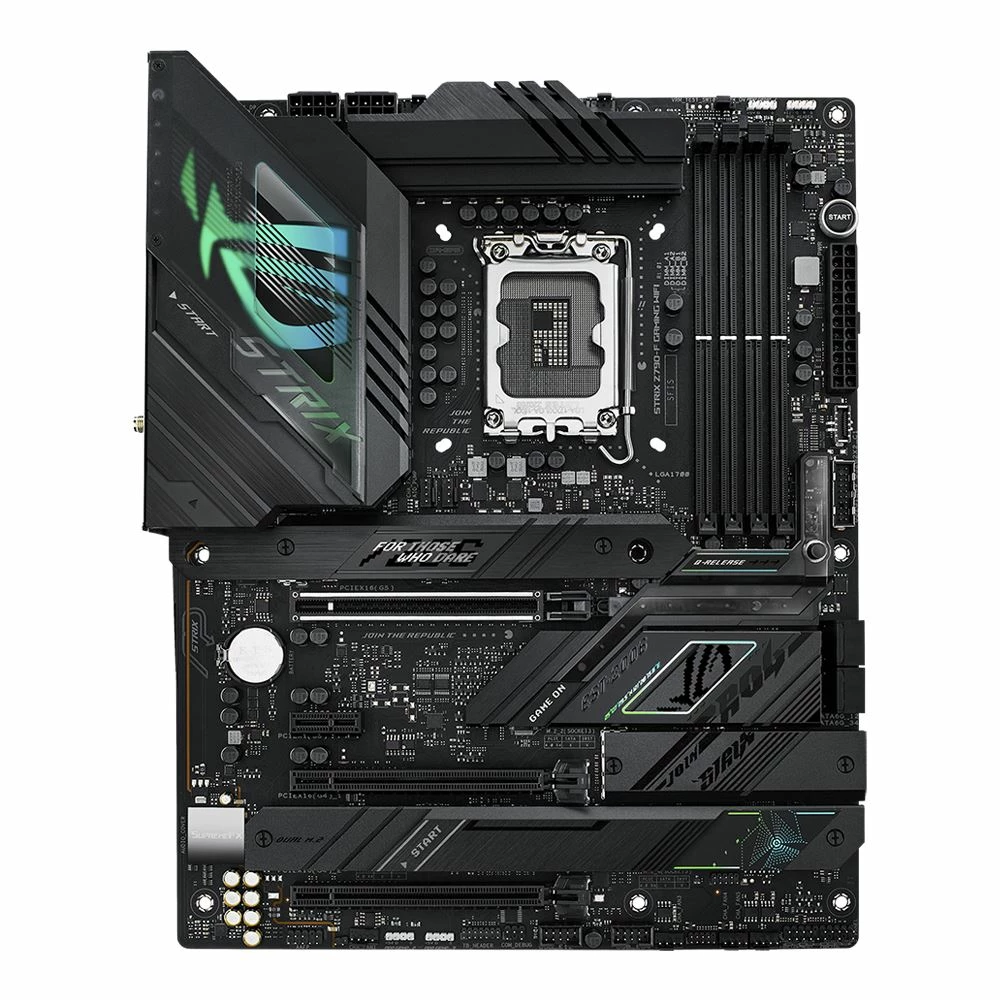

The ASUS ROG Strix Z790-F WiFi 6E Gaming motherboard is designed with boosted power delivery and optimized cooling to cope with the demands of powerful 13th Gen Intel Core processors. Along with the latest Wi-Fi 6E, DDR5 Memory and PCI Express 5.0 for superfast data transfer, memory and storage performance, ROG Strix Z790-F Gaming WiFi is unmistakably ROG with its futuristic design elements, iridescent ROG logo, monochrome finish and Aura lighting that will give your build a subtle but vibrant look.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
The ASUS ROG Strix Z790-F WiFi 6E Gaming motherboard is designed with boosted power delivery and optimized cooling to cope with the demands of powerful 13th Gen Intel Core processors. Along with the latest Wi-Fi 6E, DDR5 Memory and PCI Express 5.0 for superfast data transfer, memory and storage performance, ROG Strix Z790-F Gaming WiFi is unmistakably ROG with its futuristic design elements, iridescent ROG logo, monochrome finish and Aura lighting that will give your build a subtle but vibrant look.
| SKU | 443622 |
|---|---|
| Memory Speeds Supported | 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 |
| UPC | 195553938594 |
| Packaging | Retail |
| Manageability | WOL PXE |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| North Bridge | Intel Z790 |
| Socket Type | LGA 1700 |
| Intel CPU Support | Core i7 Core i5 Core i3 Celeron Pentium Core i9 |
| Supported Memory Technologies | Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Maximum Memory Supported Per Slot | 32GB |
| Audio Channels | 7.1 |
| Mfr Part# | STXZ790FGWF |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2242 2260 2280 22110 |
| SATA Express | 4 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 4 |
| RAID Support | RAID 0 RAID 1 RAID 10 |
| Audio Chipset | ROG SupremeFX ALC4080 |
| Memory Type | DDR5-4800 DDR5-5200 DDR5-5400 DDR5-5600 DDR5-5000 |
| WiFi Support | Onboard WiFi |
| Video Connectors | 1 x HDMI 2.1 1 x DisplayPort 1.4 |
| Digital Audio | 1 x Optical |
| Wireless Technology | 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.2 |
| PCI Express 4.0 x16 | 2 |
| PCI Express 5.0 x16 | 1 |
| PCI Express 3.0 x16 | 1 |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Line-Out |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 2.0 | 4 x USB 2.0 (Type-A) |
| USB 3.1 | 4 x USB 3.2 (Gen 1 Type-A) 1 x USB 3.2 (Gen 2 Type-C) 1 x USB 3.2 (Gen 2×2 Type-C) 2 x USB 3.2 (Gen 2 Type-A) |
| LAN Chipset | Intel 2.5Gb Ethernet |
| LAN Speed | 10/100/1000/2500Mbps |
| Headers | 1 x Water Pump Header 2 x CPU Fan Header 5 x System Fan Header |
| USB | 2 x USB 2.0 Headers (4 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) 1 x USB 3.2 Gen 2×2 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 2 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 9.60 in. (243.84 mm) |
| Form Factor | ATX |
| Parts | 3 Years |
| Labor | 3 Years |
| What's in the Box | Motherboard, 2x SATA Cables, M.2 Thermal Pad, DDR5 Fan Holder, Antenna, Cable Ties, Q-Latch Packages, Key Chain, Stickers, M.2 Rubber Packages, Documentation |
