Original price was: $89.99.$63.89Current price is: $63.89.
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
| SKU | 396945 |
|---|---|
| Maximum Memory Supported Per Slot | 32GB |
| UPC | 824142276198 |
| Packaging | Retail |
| Microsoft Certifications | Windows 11 Ready |
| Manageability | ACPI 6.4 SMBIOS 3.4 |
| BIOS | 256Mb AMI UEFI Bios |
| North Bridge | Intel B660 |
| Socket Type | LGA 1700 |
| Intel CPU Support | Core i7 Core i5 Core i3 Celeron Pentium Core i9 |
| SATA 6Gb/s | 4 |
| Mfr Part# | PROB660MGD4 |
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2666 DDR4-2933 DDR4-3200 |
| Memory Speeds Supported | 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Memory Slots | 2 x 288pin DIMM |
| Max Memory Supported | 64GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2242 2260 2280 |
| SATA Express | 2 x M.2 Socket 3 M Key |
| Supported Memory Technologies | Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Audio Chipset | Realtek ALC897 |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Line-Out |
| Headers | 1 x CPU Fan Header 2 x System Fan Header |
| LAN Speed | 10/100/1000/2500Mbps |
| PCI Express 4.0 x16 | 1 |
| PCI Express x1 | 1 |
| USB 2.0 | 2 x USB 2.0 (Type-A) |
| USB 3.1 | 4 x USB 3.2 (Gen 1 Type-A) |

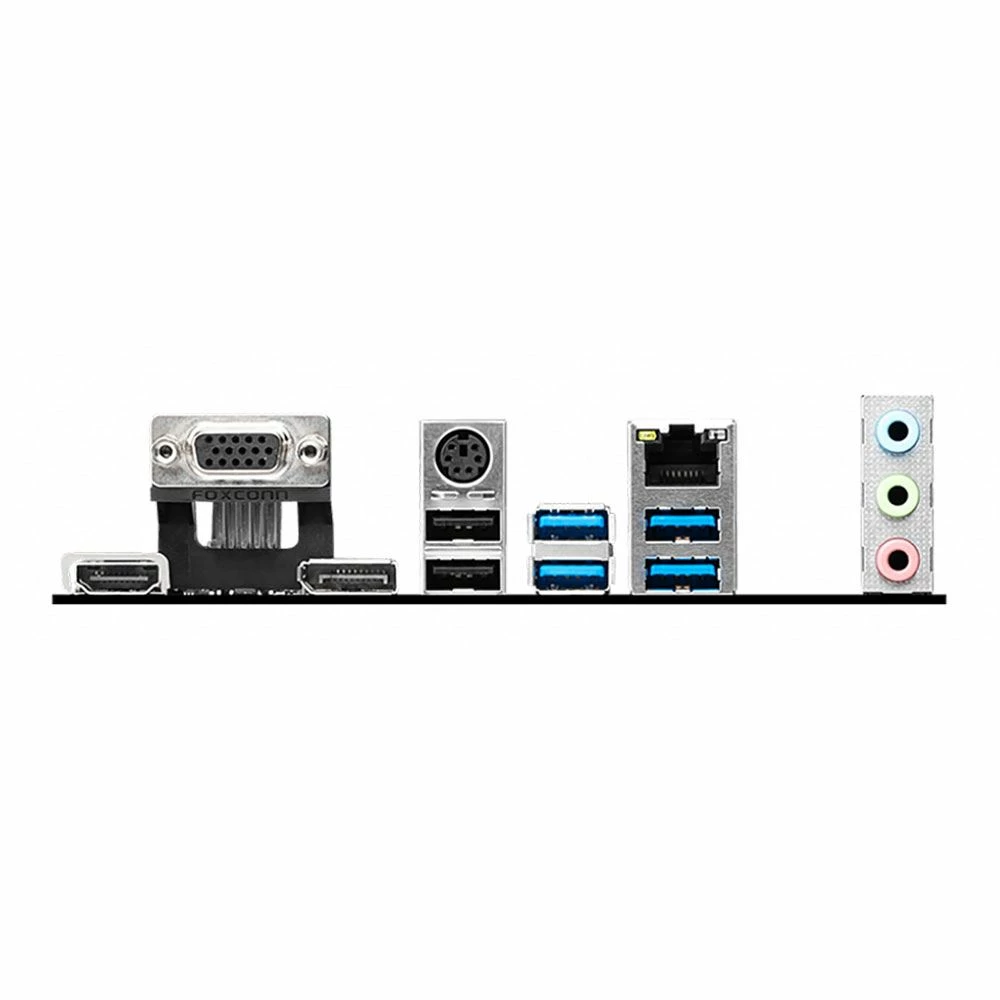

| Video Connectors | 1 x VGA 15-pin 1 x HDMI 2.1 1 x DisplayPort 1.4 |
| Legacy Ports | 1 x PS/2 |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| Audio Channels | 7.1 |
| LAN Chipset | Realtek RTL8125BG |
| USB | 2 x USB 2.0 Headers (4 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 9.61 in. (244.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | microATX |
| Parts | 3 Years |
| Labor | 3 Years |
| What's in the Box | Motherboard, M.2 Clips, SATA Cables, IO Shield, Driver Disc, Case Badge |
