Sale!
$91.99
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&N and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability for reliability even under extreme conditions.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&N and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability for reliability even under extreme conditions.
| SKU | 229385 |
|---|---|
| Max Memory Supported | 128GB |
| UPC | 824142243114 |
| Packaging | Retail |
| North Bridge | Intel Z590 |
| Socket Type | LGA 1200 |
| Intel CPU Support | Core i7 Core i5 Core i3 Celeron Pentium Core i9 |
| Maximum Memory Supported Per Slot | 32GB |
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2666 DDR4-2933 |
| Memory Speeds Supported | 5600(OC)/ 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| WiFi Support | Onboard WiFi |
| Mfr Part# | MEG Z590 GODLIK |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| Multi-GPU Support | 2-Way SLI 2-Way CrossFire |
| M.2 Port Type | 2242 2260 2280 22110 |
| SATA Express | 4 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 6 |
| RAID Support | RAID 0 RAID 1 RAID 5 RAID 10 |
| Audio Chipset | Realtek ALC4082 Codec + ESS ES9218PQ Combo DAC/HPA |
| Audio Channels | 7.1 |
| Memory Slots | 4 x 288pin DIMM |
| LAN Chipset | Aquantia AQC107 |
| Video Connectors | 2 x Mini-DisplayPort Input |
| Digital Audio | 1 x Optical |
| Wireless LAN Chipset | Intel WiFi-6E AX210 |
| Wireless Technology | 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.2 |
| PCI Express 4.0 x16 | 2 |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN 1 x 100/1000/2500/5000/10000Mbps |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Line-Out |
| Specialty Ports | 2 x WiFi Antenna Ports |
| Thunderbolt Ports | 2 x Thunderbolt 4 |
| USB 3.1 | 2 x USB 3.2 (Gen 2 Type-A) 6 x USB 3.2 (Gen 1 Type-A) |
| LAN 2 Chipset | Intel I225-V |
| LAN Speed | 100/1000/2500/5000/10000Mbps |
| Headers | 1 x CPU Fan Header 1 x Water Pump Header 8 x System Fan Header |
| USB | 2 x USB 2.0 Headers (4 Ports) 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports) 1 x USB 3.2 Gen 2 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 6-pin +12 V Connector 2 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Width | 10.90 in. (276.70 mm) |
| Depth | 12.00 in. (305.00 mm) |
| Form Factor | eATX |
| Parts | 3 Years |
| Labor | 3 Years |

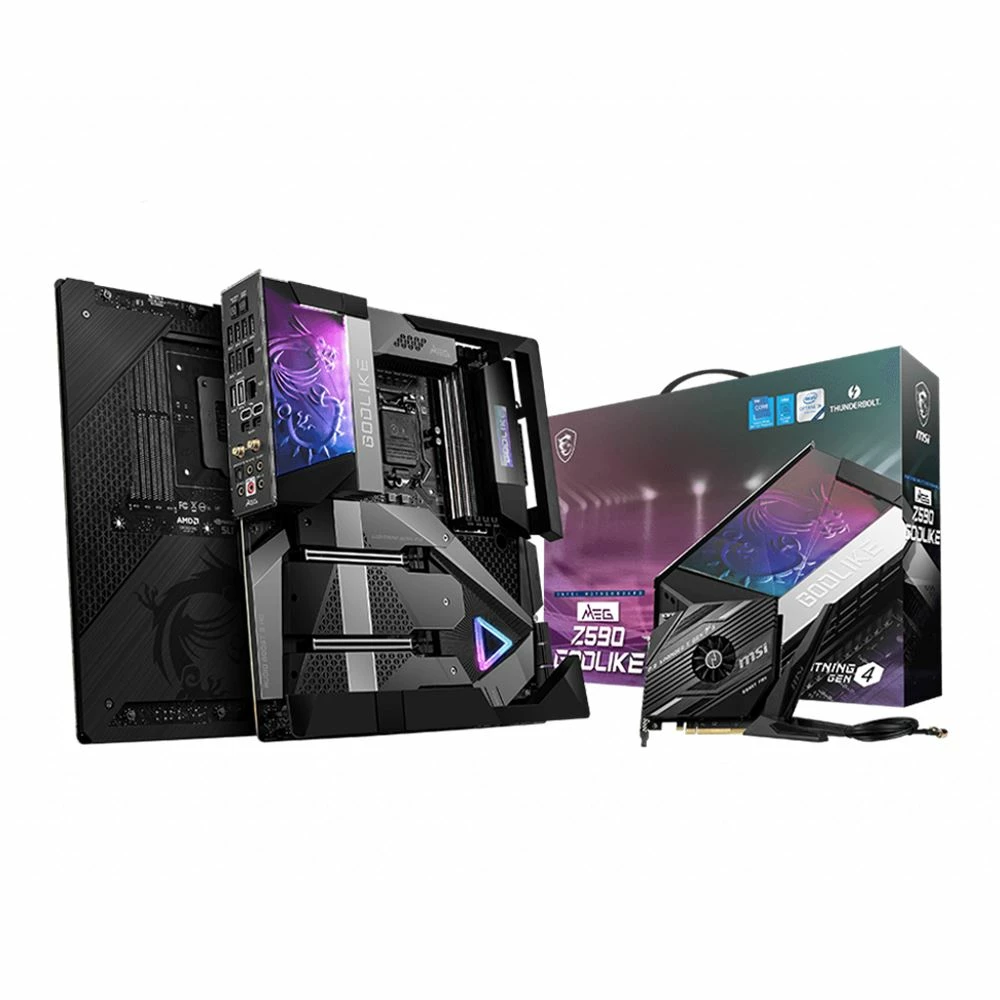

| What's in the Box | Motherboard, Manual, Install Guide, USB Drive w/ Drivers, SATA Cables, JRGB Y Cable, JCORSAIR Cable, JRAINBOW Cable, Thermistor Cable, Tuning Controller Cable, Antenna, Case Badge, M.2 Screws and Standoffs, DIY Stands Set, MEG Sticker, SATA Cable Stickers, Full Armor Kit, Registration Card, Wiping Cloth, Screwdriver Set, Small Brush |
