Original price was: $199.99.$92.99Current price is: $92.99.
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
| SKU | 353086 |
|---|---|
| Audio Chipset | Realtek ALC897 |
| Packaging | Retail |
| Microsoft Certifications | Windows 11 Ready |
| North Bridge | Intel Z690 |
| Socket Type | LGA 1700 |
| Intel CPU Support | Core i7 Core i5 Core i3 Celeron Pentium Core i9 |
| Supported Memory Technologies | Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Maximum Memory Supported Per Slot | 32GB |
| Memory Speeds Supported | 6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800 |
| Memory Slots | 4 x 288pin DIMM |
| Memory Type | DDR5-4800 |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| Multi-GPU Support | 2-Way CrossFireX |
| M.2 Port Type | 2242 2260 2280 22110 |
| SATA Express | 4 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 6 |
| RAID Support | RAID 0 RAID 1 RAID 5 RAID 10 |
| UPC | 824142270387 |
| Mfr Part# | PRO Z690-A |

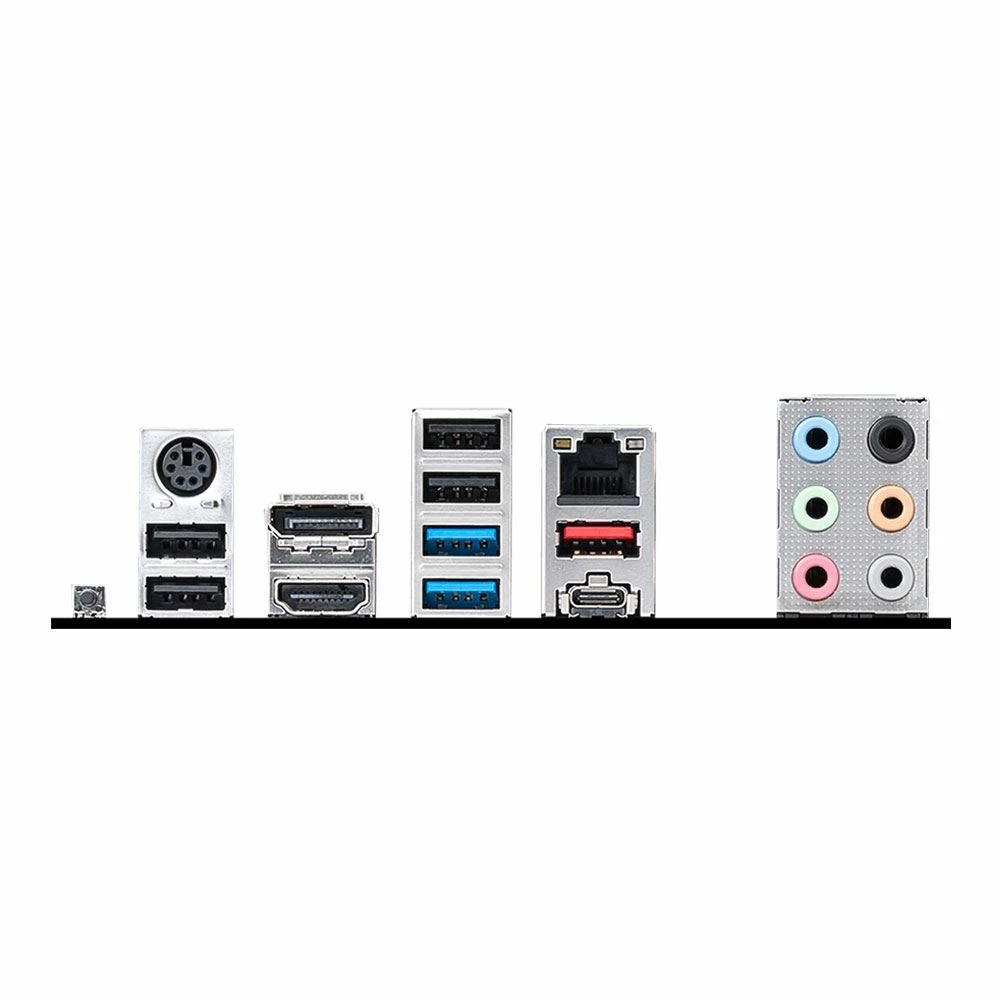

| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Side Speaker 1 x 3.5 mm Line-Out |
| Headers | 1 x CPU Fan Header 1 x Water Pump Header 6 x System Fan Header |
| PCI Express 5.0 x16 | 1 |
| PCI Express 3.0 x16 | 2 |
| PCI Express x1 | 1 |
| USB 2.0 | 4 x USB 2.0 (Type-A) |
| USB 3.1 | 1 x USB 3.2 (Gen 2×2 Type-C) 1 x USB 3.2 (Gen 2 Type-A) 2 x USB 3.2 (Gen 1 Type-A) |
| Video Connectors | 1 x HDMI 2.1 1 x DisplayPort 1.4 |
| Legacy Ports | 1 x PS/2 |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| LAN Chipset | Intel I225-V |
| Audio Channels | 7.1 |
| USB | 2 x USB 2.0 Headers (4 Ports) 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports) 1 x USB 3.2 Gen 2 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 2 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | ATX |
| Parts | 3 Years |
| Labor | 3 Years |
| LAN Speed | 10/100/1000/2500Mbps |

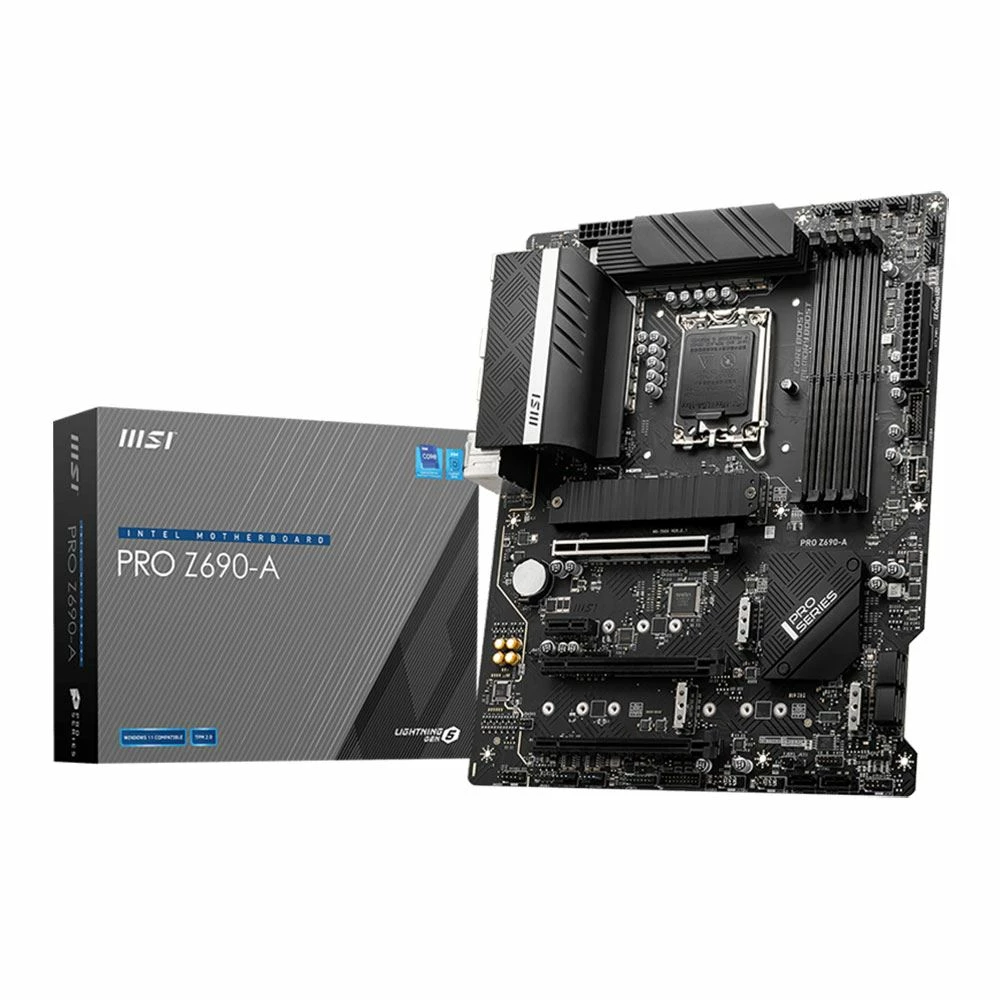

| What's in the Box | Motherboard, Install Guide, M.2 Screws and Standoffs, M.2 Clips, 2x SATA Cables, Registration Card, I/O Shield, Driver Disc |
