Sale!
$98.99
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
| SKU | 141424 |
|---|---|
| Max Memory Supported | 128GB |
| Packaging | Retail |
| North Bridge | AMD B550 |
| Socket Type | AM4 |
| AMD CPU Support | Ryzen |
| Supported Memory Technologies | ECC Memory Supported Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Maximum Memory Supported Per Slot | 32GB |
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2667 DDR4-2933 DDR4-3200 |
| Audio Channels | 7.1 |
| Memory Slots | 4 x 288pin DIMM |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| Multi-GPU Support | 2-Way CrossFire |
| M.2 Port Type | 2242 2260 2280 22110 |
| SATA Express | 2 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 6 |
| RAID Support | RAID 0 RAID 1 RAID 10 |
| Audio Chipset | Realtek ALC892 |
| UPC | 824142219362 |
| Mfr Part# | B550APRO |
| Video Connectors | 1 x DisplayPort 1.2 1 x HDMI 1.4 |
| LAN Speed | 10/100/1000Mbps |
| PCI Express 3.0 x16 | 1 |
| PCI Express x1 | 2 |

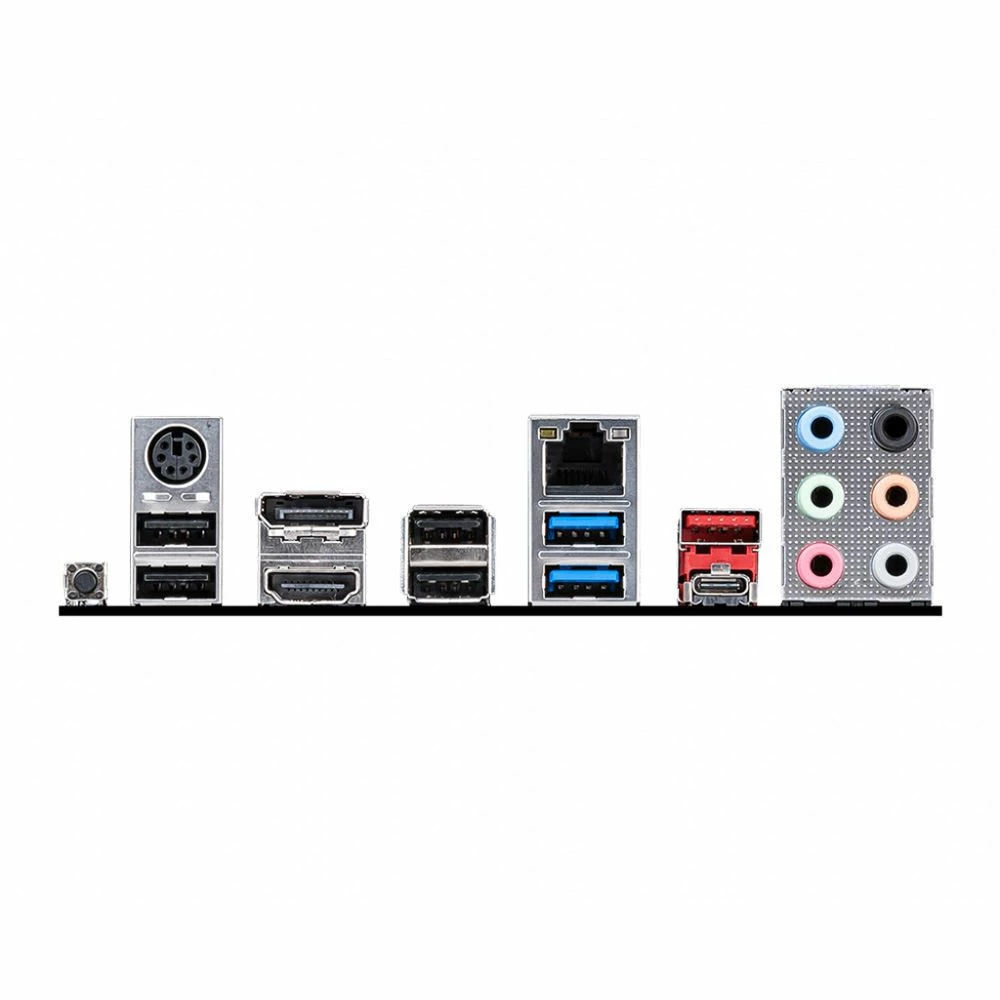

| Legacy Ports | 1 x PS/2 |
| LAN Ports | 1 x 10/100/1000 RJ-45 LAN |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Line-Out |
| USB 2.0 | 2 x USB 2.0 (Type-A) |
| USB 3.1 | 1 x USB 3.2 (Gen 2 Type-C) 1 x USB 3.2 (Gen 2 Type-A) 2 x USB 3.2 (Gen 1 Type-A) |
| Headers | 1 x CPU Fan Header 6 x System Fan Header |
| USB | 2 x USB 2.0 Headers (4 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) 1 x USB 3.2 Gen 1 Type-C Header (1 Port) |
| LAN Chipset | Realtek 8111H |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | ATX |
| Parts | 3 Years |
| Labor | 3 Years |
| PCI Express 4.0 x16 | 1 |
| What's in the Box | Motherboard, SATA Cables, M.2 Screws, Case Badge, Registration Card, Driver Disc, Install Guide |
