Dr.MOS design features the latest SPS (Smart Power Stage) technology. Its optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
Dr.MOS design features the latest SPS (Smart Power Stage) technology. Its optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
| SKU | 342113 |
|---|---|
| Memory Speeds Supported | 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 |
| UPC | 4710483936074 |
| Packaging | Retail |
| Microsoft Certifications | Windows 11 Ready |
| Manageability | SM BIOS 2.7 ACPI 6.0 |
| BIOS | 256Mb AMI UEFI Bios |
| North Bridge | Intel Z690 |
| Socket Type | LGA 1700 |
| Intel CPU Support | Core i7 Core i5 Core i3 Celeron Pentium Core i9 |
| Supported Memory Technologies | ECC Memory Supported Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Maximum Memory Supported Per Slot | 32GB |
| Audio Channels | 7.1 |
| Mfr Part# | MBZ690EXTREMEWI |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| Multi-GPU Support | 2-Way CrossFireX |
| M.2 Port Type | 2242 2260 2280 22110 |
| SATA Express | 3 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 8 |
| RAID Support | RAID 0 RAID 1 RAID 5 RAID 10 |
| Audio Chipset | Realtek ALC1220 |
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2666 DDR4-2933 DDR4-3200 DDR4-2800 |
| WiFi Support | Onboard WiFi |
| LAN Ports | 1 x 10/100/1000 RJ-45 LAN 1 x 10/100/1000/2500 RJ-45 LAN |

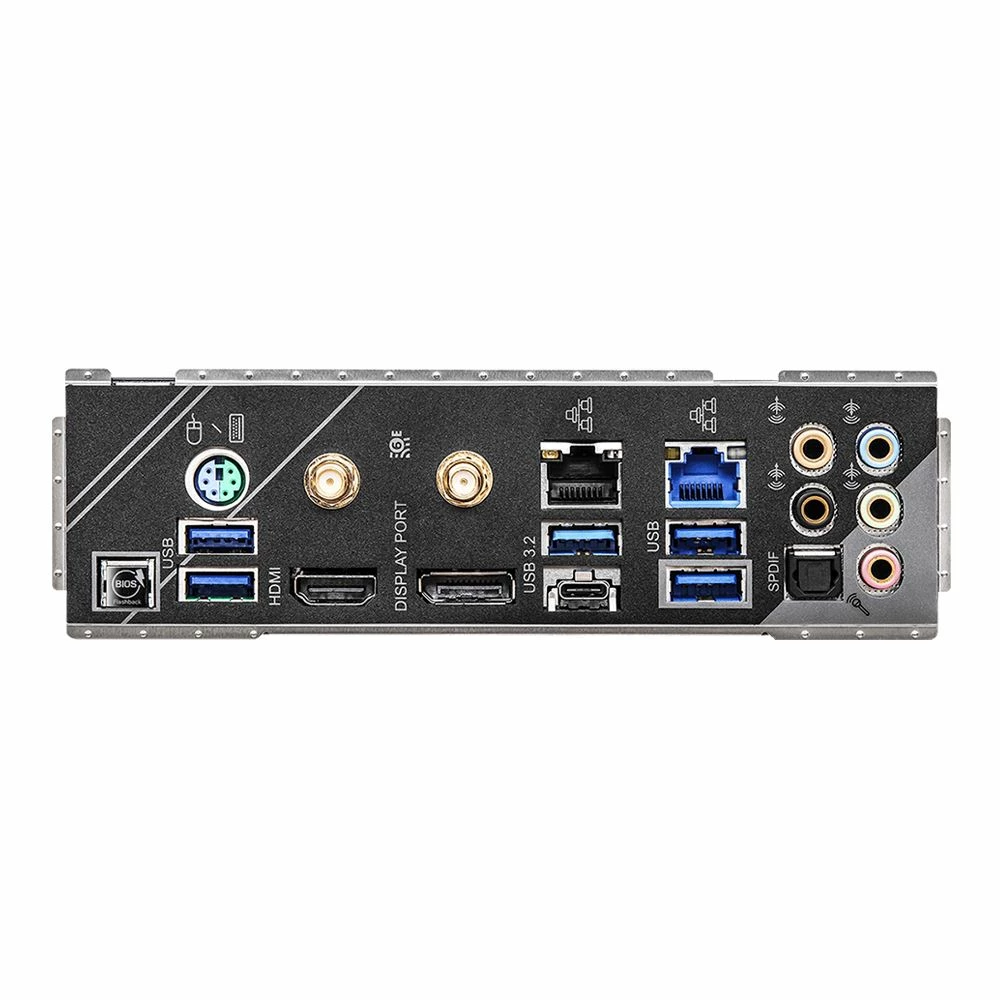

| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Line-Out |
| LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN Chipset | Intel Wi-Fi 6E |
| Wireless Technology | 802.11b 802.11g 802.11a Bluetooth v5.0 WiFi 4 (802.11n) WiFi 6 (802.11ax) |
| PCI Express 4.0 x16 | 1 |
| PCI Express 5.0 x16 | 1 |
| PCI Express 3.0 x16 | 1 |
| PCI Express x1 | 1 |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 3.1 | 4 x USB 3.2 (Gen 1 Type-A) 1 x USB 3.2 (Gen 2 Type-C) 1 x USB 3.2 (Gen 2 Type-A) |
| Video Connectors | 1 x HDMI 2.1 1 x DisplayPort 1.4 |
| LAN Chipset | Realtek RTL8125B-CG 2.5G LAN |
| LAN 2 Chipset | Intel I219V |
| Digital Audio | 1 x Optical |
| Headers | 1 x CPU Fan Header 1 x Water Pump Header 5 x System Fan Header |
| USB | 2 x USB 2.0 Headers (4 Ports) 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports) 1 x USB 3.2 Gen 2×2 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 2 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | ATX |
| Parts | 3 Years |
| Labor | 3 Years |
| What's in the Box | Motherboard, Install Guide, Driver Disc, 4x SATA Cables, Antenna, M.2 Screws and Standoffs, Graphics Card Holder |
