Sale!
$93.99
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
| SKU | 342097 |
|---|---|
| Audio Chipset | Realtek ALC897 |
| Packaging | Retail |
| Microsoft Certifications | Windows 11 Ready |
| Manageability | SM BIOS 2.7 ACPI 6.0 |
| BIOS | 128Mb AMI UEFI Bios |
| North Bridge | Intel Z690 |
| Socket Type | LGA 1700 |
| Intel CPU Support | Core i7 Core i5 Core i3 Celeron Pentium Core i9 |
| Supported Memory Technologies | ECC Memory Supported Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2666 DDR4-2933 |
| Memory Speeds Supported | 5000(OC)/4800(OC)/4600(OC)/4533(OC)/4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) |
| Maximum Memory Supported Per Slot | 32GB |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| Multi-GPU Support | 2-Way CrossFireX |
| M.2 Port Type | 2260 2280 22110 |
| SATA Express | 3 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 8 |
| RAID Support | RAID 0 RAID 1 RAID 5 RAID 10 |
| UPC | 4710483935985 |
| Mfr Part# | MB-Z690PRORS |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Line-Out |
| LAN Speed | 10/100/1000/2500Mbps |
| PCI Express 4.0 x16 | 1 |
| PCI Express 5.0 x16 | 1 |
| PCI Express 3.0 x16 | 1 |
| PCI Express x1 | 2 |
| USB 2.0 | 2 x USB 2.0 (Type-A) |
| USB 3.1 | 2 x USB 3.2 (Gen 1 Type-A) 2 x USB 3.2 (Gen 2 Type-A) |
| Video Connectors | 1 x HDMI 2.1 1 x DisplayPort 1.4 |
| Legacy Ports | 1 x PS/2 |
| WiFi Support | V-M.2 Slot |
| Audio Channels | 7.1 |
| Headers | 1 x CPU Fan Header 4 x System Fan Header 1 x Water Pump Header |
| USB | 2 x USB 2.0 Headers (4 Ports) 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector 1 x 4-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | ATX |
| Parts | 3 Years |
| Labor | 3 Years |
| LAN Chipset | Realtek RTL8125BG |

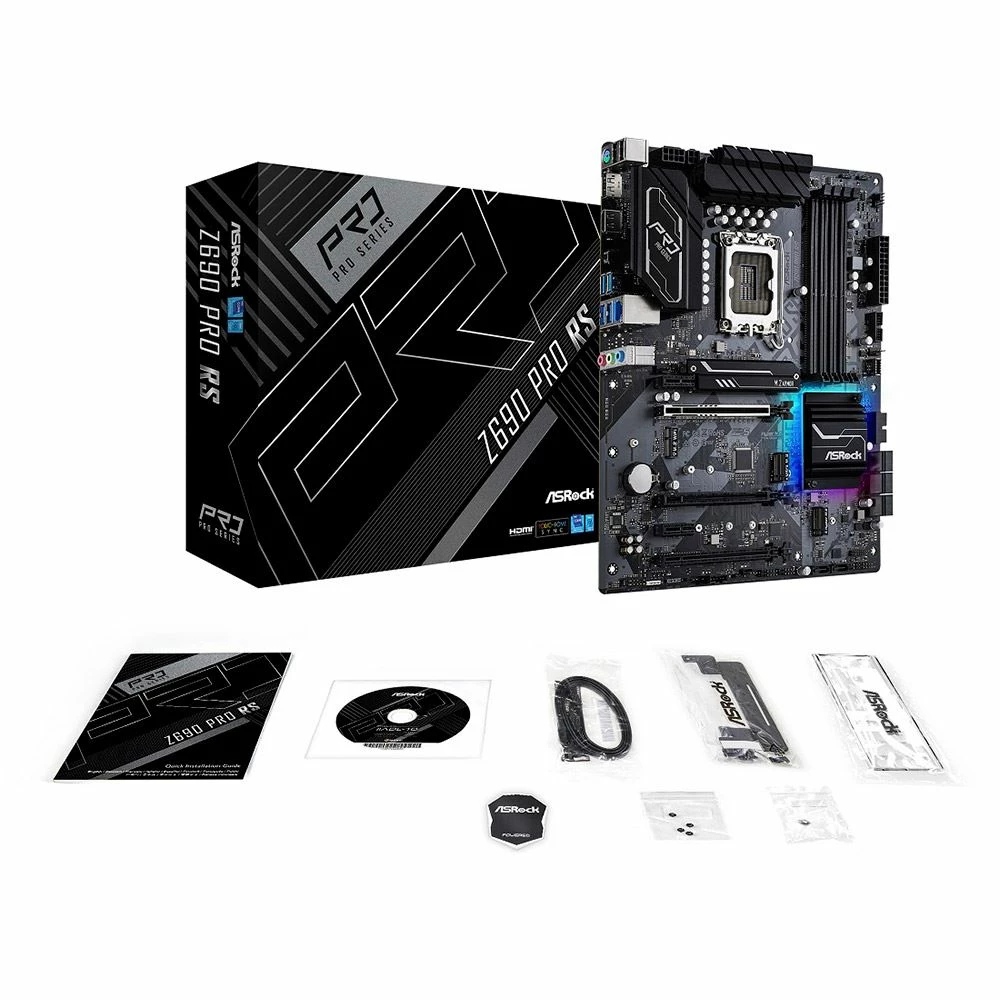

| What's in the Box | Motherboard, Install Guide, Support CD, 2x SATA Data Cables, M.2 Screws and Standoffs, Graphics Card Holder, I/O Shield |
