$96.99

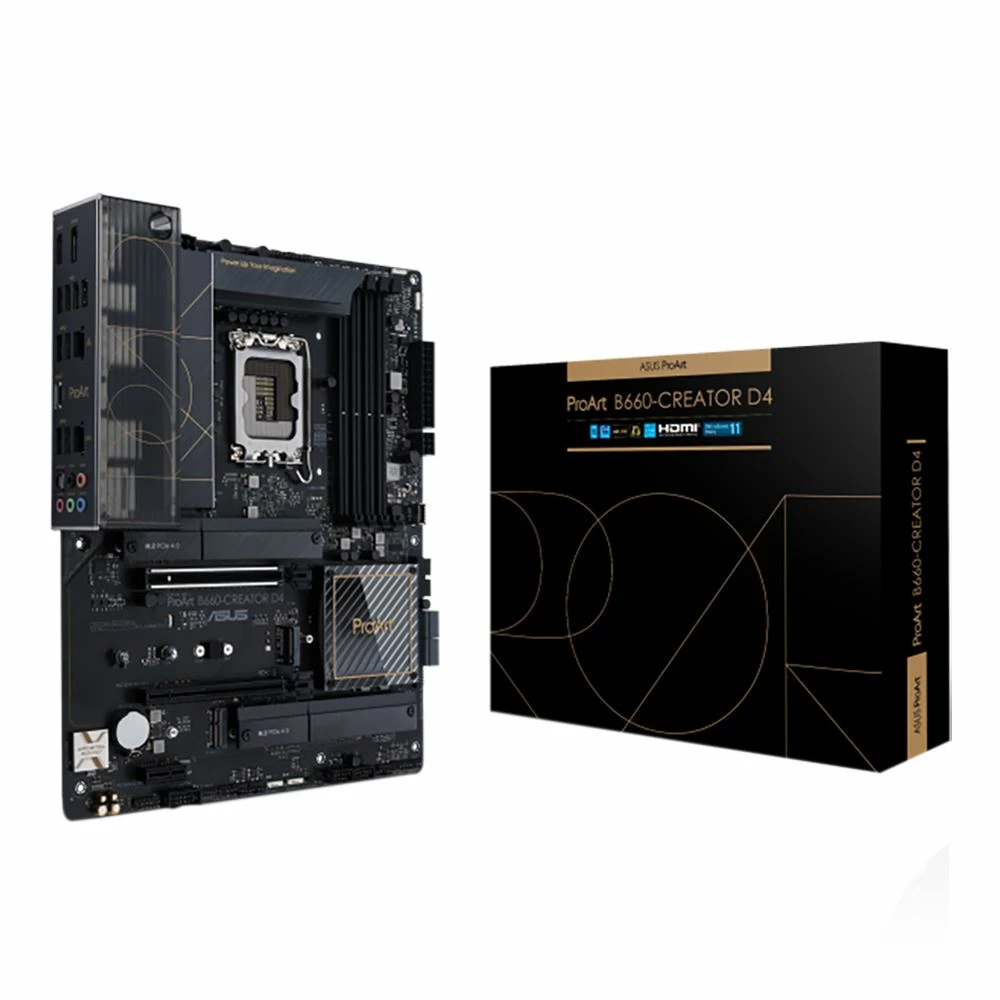

The ASUS ProArt B660-Creator D4 perfects the art of performance, empowering creativity and maximizing the computing power of the latest 12th Generation Intel Core processors with powerful hardware and software, efficient cooling and lightning-fast connectivity.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
The ASUS ProArt B660-Creator D4 perfects the art of performance, empowering creativity and maximizing the computing power of the latest 12th Generation Intel Core processors with powerful hardware and software, efficient cooling and lightning-fast connectivity.
| SKU | 367920 |
|---|---|
| RAID Support | RAID 0 RAID 1 RAID 5 RAID 10 |
| Packaging | Retail |
| Microsoft Certifications | Windows 11 Ready |
| Manageability | WOL PXE |
| BIOS | 128Mb AMI UEFI Bios |
| North Bridge | Intel B660 |
| Socket Type | LGA 1700 |
| Intel CPU Support | Core i7 Core i5 Core i3 Celeron Pentium Core i9 |
| Maximum Memory Supported Per Slot | 32GB |
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2666 DDR4-2933 DDR4-3200 DDR4-2800 DDR4-3000 |
| Supported Memory Technologies | Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Memory Speeds Supported | 5333(OC) /5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2242 2260 2280 22110 |
| SATA Express | 3 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 4 |
| UPC | 195553518512 |
| Mfr Part# | B660-CREATOR D4 |
| Digital Audio | 1 x Optical |
| Headers | 4 x System Fan Header 1 x Water Pump Header 2 x CPU Fan Header |
| PCI Express 5.0 x16 | 1 |
| PCI Express 3.0 x16 | 1 |
| PCI Express x1 | 1 |
| USB 2.0 | 4 x USB 2.0 (Type-A) |
| USB 3.1 | 4 x USB 3.2 (Gen 1 Type-A) 1 x USB 3.2 (Gen 2 Type-C) |
| Video Connectors | 1 x HDMI 2.1 1 x DisplayPort In |
| LAN Ports | 1 x 10/100/1000 RJ-45 LAN 1 x 10/100/1000/2500 RJ-45 LAN |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Line-Out |
| WiFi Support | V-M.2 Slot |
| Audio Channels | 7.1 |
| USB | 2 x USB 2.0 Headers (4 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) 1 x USB 3.2 Gen 2×2 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector 1 x 4-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | ATX |
| Parts | 3 Years |
| Labor | 3 Years |
| LAN Speed | 10/100/1000/2500Mbps |
| What's in the Box | Motherboard, 2x SATA Cables, DisplayPort Cable, M.2 Rubber Packages, Driver Disc, Guide |
