$97.99

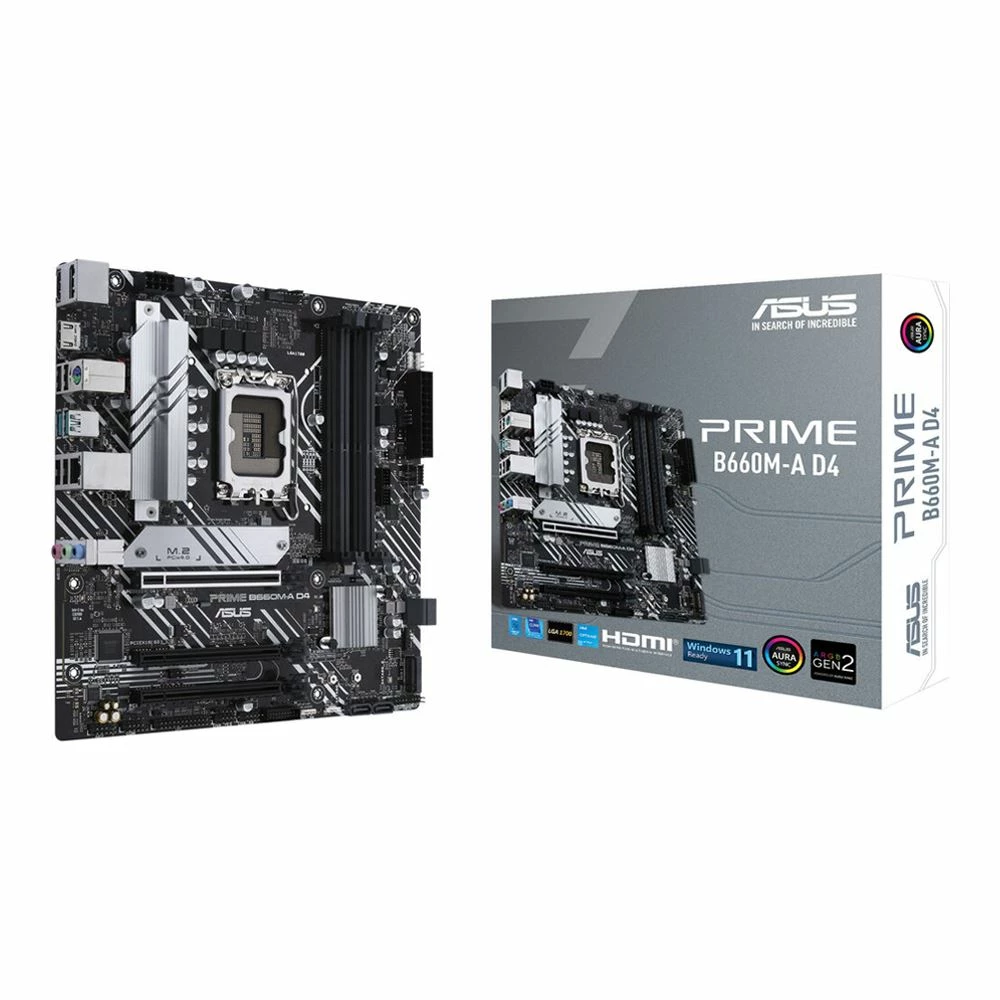

The ASUS PRIME B660M-A D4 is expertly engineered to unleash the full potential of 12th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, ASUS PRIME B660M-A D4 provides daily users and DIY PC builders a range of performance tuning options via included software and hardware.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
The ASUS PRIME B660M-A D4 is expertly engineered to unleash the full potential of 12th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, ASUS PRIME B660M-A D4 provides daily users and DIY PC builders a range of performance tuning options via included software and hardware.
| SKU | 367912 |
|---|---|
| Supported Memory Technologies | Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| UPC | 195553508018 |
| Packaging | Retail |
| Microsoft Certifications | Windows 11 Ready |
| BIOS | 128Mb AMI UEFI Bios |
| Manageability | WOL PXE |
| North Bridge | Intel B660 |
| Socket Type | LGA 1700 |
| M.2 Port Type | 2242 2260 2280 |
| Mfr Part# | PRIMEB660M-A D4 |
| Maximum Memory Supported Per Slot | 32GB |
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2666 DDR4-2933 DDR4-3200 DDR4-2800 DDR4-3000 |
| Memory Speeds Supported | 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| Intel CPU Support | Core i7 Core i5 Core i3 Celeron Pentium Core i9 |
| SATA Express | 2 x M.2 Socket 3 M Key |
| LAN Ports | 1 x 10/100/1000 RJ-45 LAN |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Line-Out |
| Audio Channels | 7.1 |
| LAN Speed | 10/100/1000Mbps |
| PCI Express 4.0 x16 | 1 |
| PCI Express 3.0 x16 | 2 |
| USB 2.0 | 4 x USB 2.0 (Type-A) |
| USB 3.1 | 2 x USB 3.2 (Gen 2 Type-A) |
| Video Connectors | 1 x DisplayPort 1.4 2 x HDMI 2.1 |
| SATA 6Gb/s | 4 |
| RAID Support | RAID 0 RAID 1 RAID 5 RAID 10 |
| Headers | 2 x System Fan Header 2 x CPU Fan Header |
| USB | 2 x USB 2.0 Headers (4 Ports) 2 x USB 3.2 Gen 2 Type-A Headers (4 Ports) 1 x USB 2.0 Header (1 Port) 1 x USB 3.2 Gen 1 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Form Factor | microATX |
| Parts | 3 Years |
| Labor | 3 Years |
| What's in the Box | Motherboard, 2x SATA Cables, I/O Shield, M.2 Rubber Package, M.2 Screws, Driver Disc, User Guide |
