Sale!
$94.99

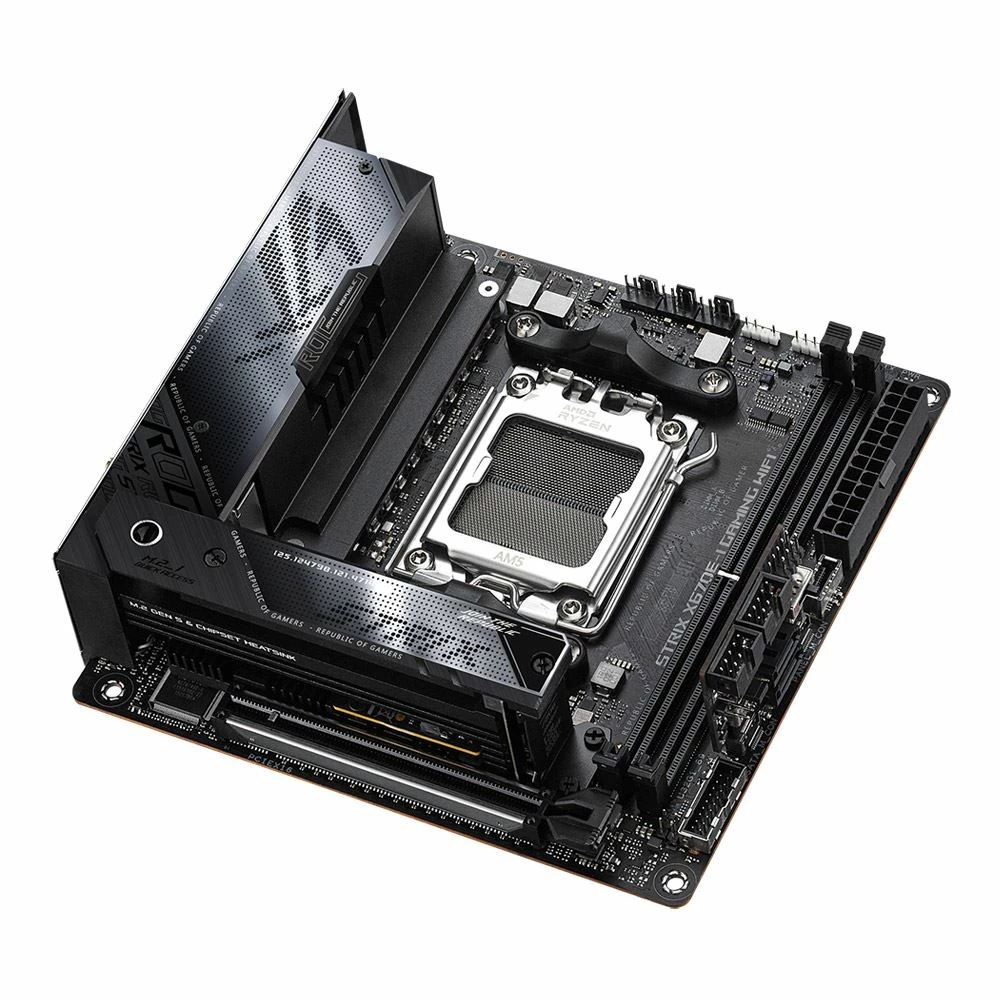

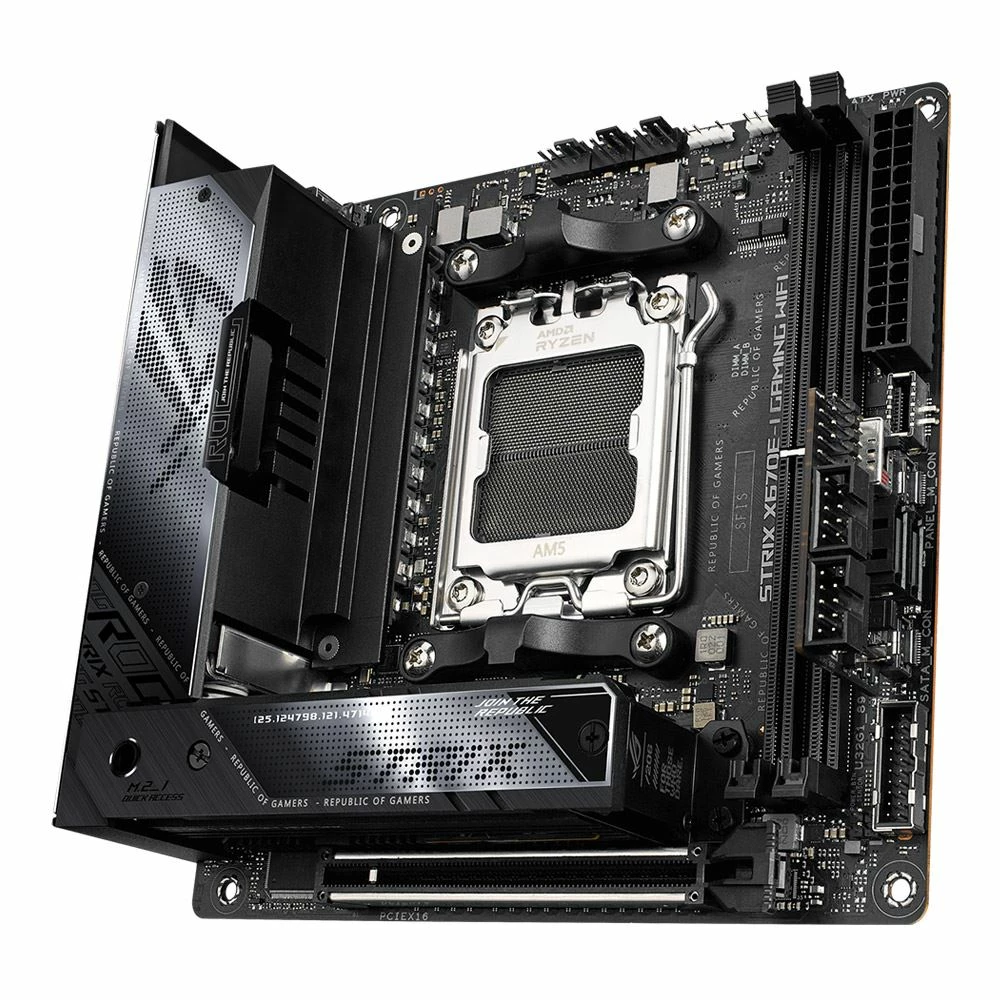

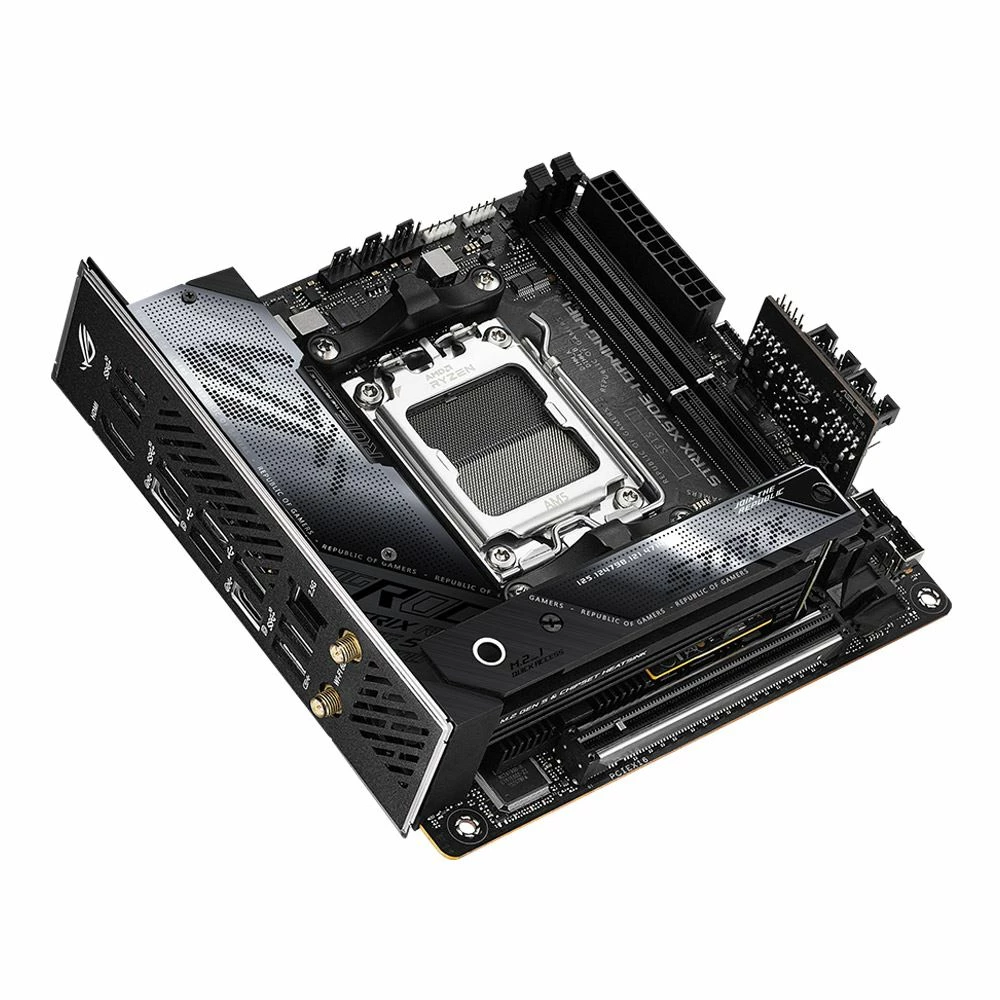

The ROG Strix X670E-I Gaming WiFi crams the latest tech into the diminutive mini-ITX footprint and then branches out with the ROG Hive to put vital controls and I/O at your fingertips. At motherboard level, PCIe 5.0 slots for graphics and storage ride alongside dual-channel DDR5 to bring large-scale bandwidth to games and CPU-intensive workloads. Heavyweight power delivery and vertically-stacked heatsinks crush thermals and lay a potent foundation for exclusive ROG overclocking tools to push performance boundaries. With all this and more, this tiny titan dishes up a space-saving AM5 build that allows you to comfortably host larger displays and a spread of ROG gaming peripherals on your desktop.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
The ROG Strix X670E-I Gaming WiFi crams the latest tech into the diminutive mini-ITX footprint and then branches out with the ROG Hive to put vital controls and I/O at your fingertips. At motherboard level, PCIe 5.0 slots for graphics and storage ride alongside dual-channel DDR5 to bring large-scale bandwidth to games and CPU-intensive workloads. Heavyweight power delivery and vertically-stacked heatsinks crush thermals and lay a potent foundation for exclusive ROG overclocking tools to push performance boundaries. With all this and more, this tiny titan dishes up a space-saving AM5 build that allows you to comfortably host larger displays and a spread of ROG gaming peripherals on your desktop.
| SKU | 438986 |
|---|---|
| Memory Type | DDR5-4800 DDR5-5200 DDR5-5000 |
| UPC | 195553905572 |
| Packaging | Retail |
| Manageability | WOL PXE |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| North Bridge | AMD X670E |
| Socket Type | AM5 |
| AMD CPU Support | Ryzen |
| Supported Memory Technologies | ECC Memory Supported Non-ECC Memory Supported Extreme Memory Profile (XMP) Extended Profiles for Overclocking (EXPO) |
| RAID Support | RAID 0 RAID 1 |
| Mfr Part# | STXX670EIWF |
| Memory Speeds Supported | 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz |
| Memory Slots | 2 x 288pin DIMM |
| Max Memory Supported | 64GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2242 2260 2280 |
| SATA Express | 2 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 2 |
| Maximum Memory Supported Per Slot | 32GB |
| Audio Chipset | ROG SupremeFX ALC4050 |
| Specialty Ports | 2 x WiFi Antenna Ports |
| Headers | 1 x CPU Fan Header 1 x Water Pump Header 1 x System Fan Header |
| LAN Speed | 10/100/1000/2500Mbps |
| Wireless Technology | 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.2 |
| PCI Express 5.0 x16 | 1 |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| USB 2.0 | 3 x USB 2.0 (Type-A) |
| USB 3.1 | 5 x USB 3.2 (Gen 2 Type-A) |
| Video Connectors | 1 x HDMI 2.1 |
| Thunderbolt Ports | 2 x Thunderbolt 4 |
| Audio Channels | 7.1 |
| WiFi Support | Onboard WiFi |
| USB | 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) 1 x USB 3.2 Gen 2 Type-A Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 6.70 in. (170.00 mm) |
| Width | 6.70 in. (170.00 mm) |
| Form Factor | Mini-ITX |
| Parts | 3 Years |
| Labor | 3 Years |

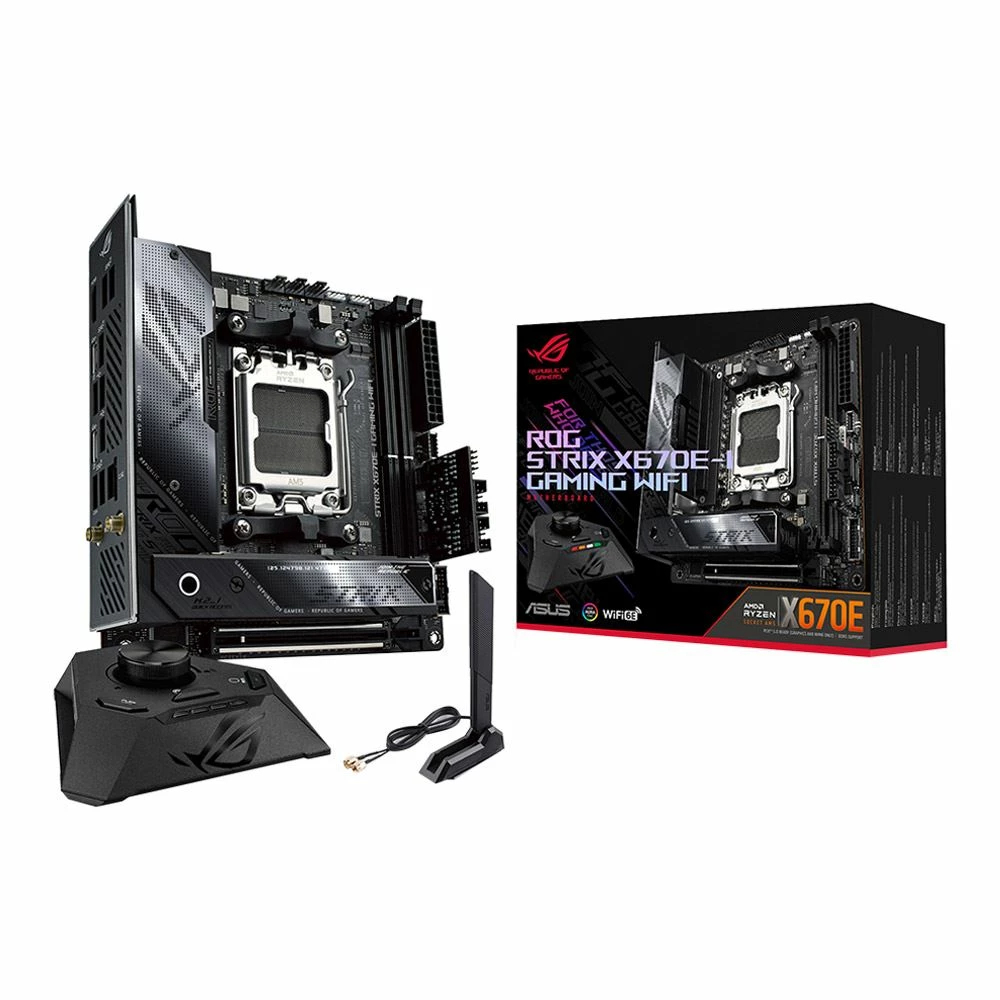

| What's in the Box | 2x SATA 6Gb/s cables, 1x ROG USB2.0 splitter cable, 1x Panel Cable, 1x ROG FPS-II Card, 1x ROG STRIX HIVE, 1x USB Type-C power connection cable, 1x Thermal pad for M.2, 1x ASUS Wi-Fi moving antennas, 1x Cable ties pack, 1x Rubber Package(s) for M.2, 1x Q-Latch package(s) for M.2, 1x ROG key chain, 1x ROG Strix stickers, 1x ROG Strix thank you card, 1x User guide |
