Original price was: $219.99.$97.99Current price is: $97.99.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-P WIFI provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-P WIFI provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
| SKU | 337188 |
|---|---|
| Memory Type | DDR5-4800 |
| UPC | 195553469616 |
| Packaging | Retail |
| Microsoft Certifications | Windows 11 Ready |
| Manageability | WOL PXE |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| North Bridge | Intel Z690 |
| Socket Type | LGA 1700 |
| Intel CPU Support | Core i7 Core i5 Core i3 Celeron Pentium Core i9 |
| Supported Memory Technologies | ECC Memory Supported Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| WiFi Support | Onboard WiFi |
| Mfr Part# | PRIMEZ690PWIFID |
| Memory Speeds Supported | 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 |

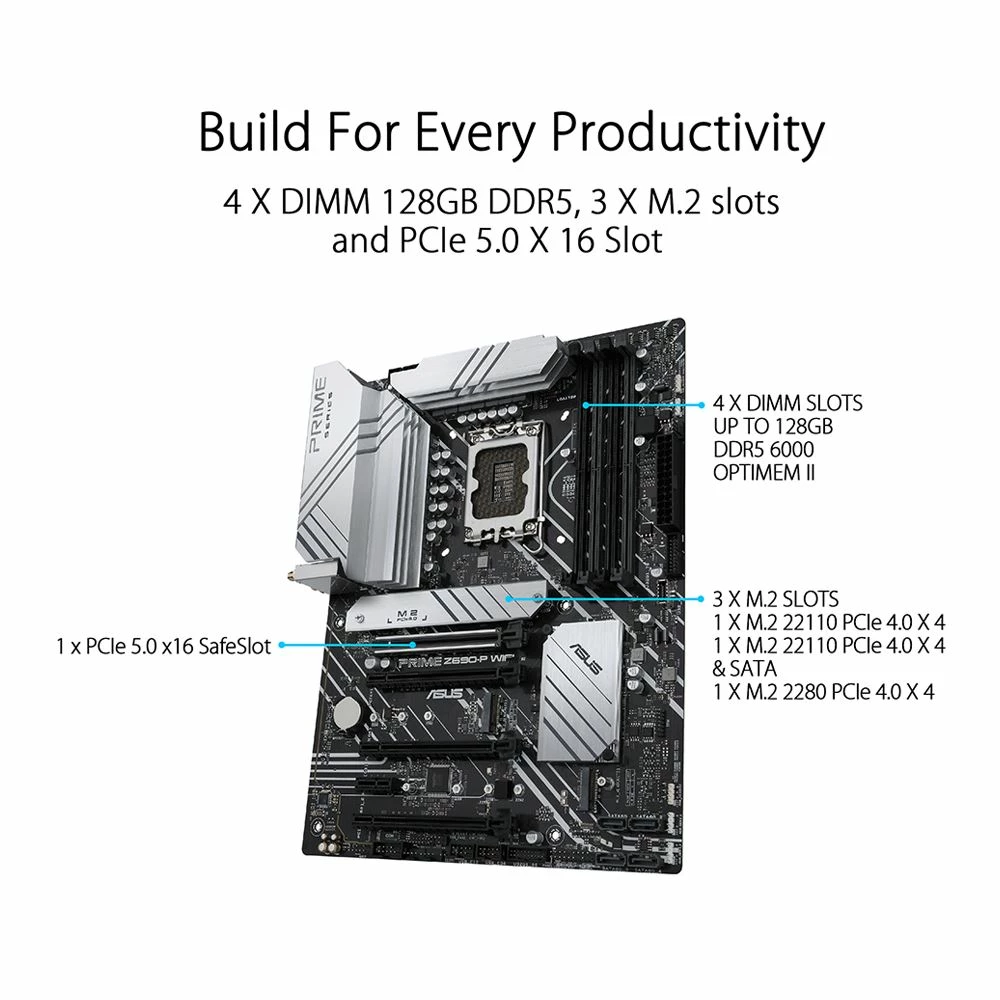

| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2242 2260 2280 22110 |
| SATA Express | 3 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 4 |
| RAID Support | RAID 0 RAID 1 RAID 5 RAID 10 |
| Audio Channels | 7.1 |
| Maximum Memory Supported Per Slot | 32GB |
| LAN Speed | 10/100/1000/2500Mbps |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Line-Out |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| PCI Express 4.0 x16 | 1 |
| PCI Express 5.0 x16 | 1 |
| PCI Express 3.0 x16 | 2 |
| PCI Express x1 | 1 |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 2.0 | 2 x USB 2.0 (Type-A) |
| USB 3.1 | 1 x USB 3.2 (Gen 2×2 Type-C) 1 x USB 3.2 (Gen 2 Type-A) 2 x USB 3.2 (Gen 1 Type-A) |

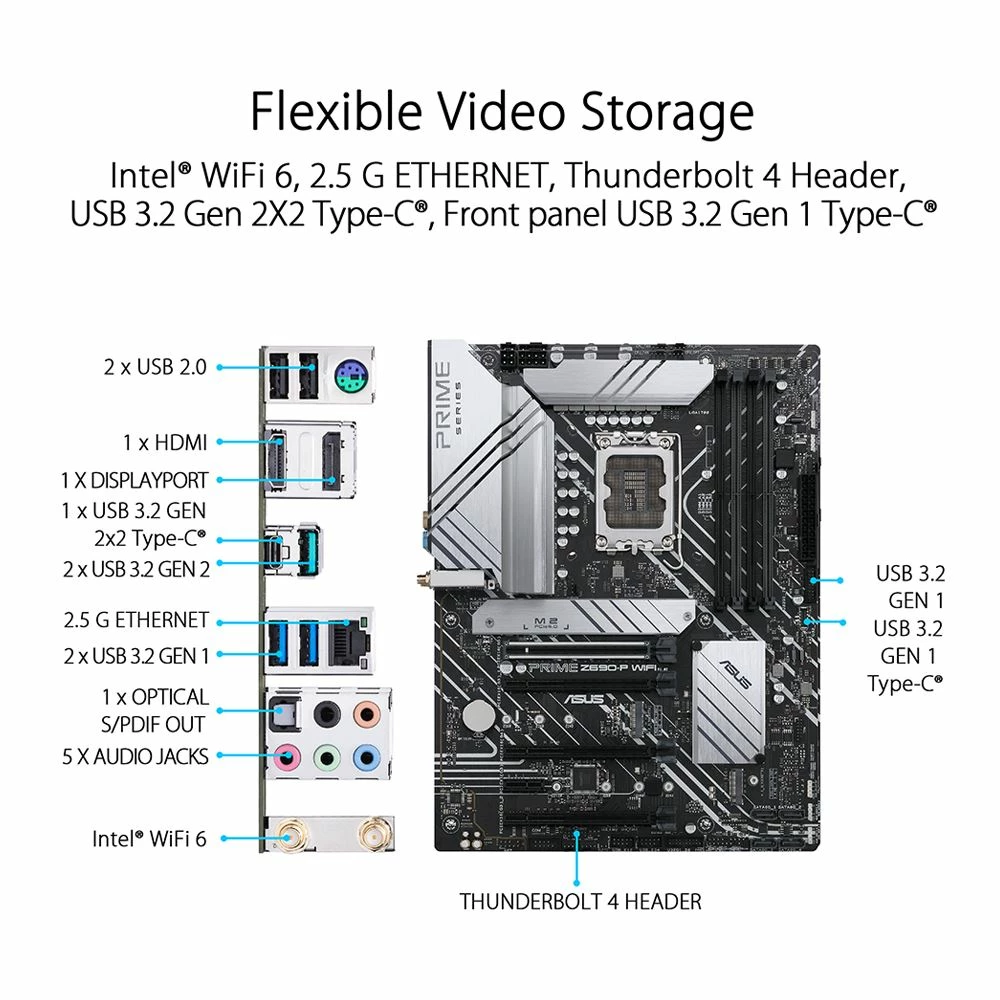

| Video Connectors | 1 x HDMI 2.1 1 x DisplayPort 1.4 |
| Legacy Ports | 1 x PS/2 |
| Wireless LAN Chipset | Intel Wi-Fi 6 |
| Wireless Technology | 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.2 |
| Digital Audio | 1 x Optical |
| Headers | 1 x Water Pump Header 3 x System Fan Header 2 x CPU Fan Header |
| USB | 2 x USB 2.0 Headers (4 Ports) 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports) 1 x USB 3.2 Gen 1 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector 1 x 4-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 9.20 in. (234.00 mm) |
| Form Factor | ATX |
| Parts | 3 Years |
| Labor | 3 Years |

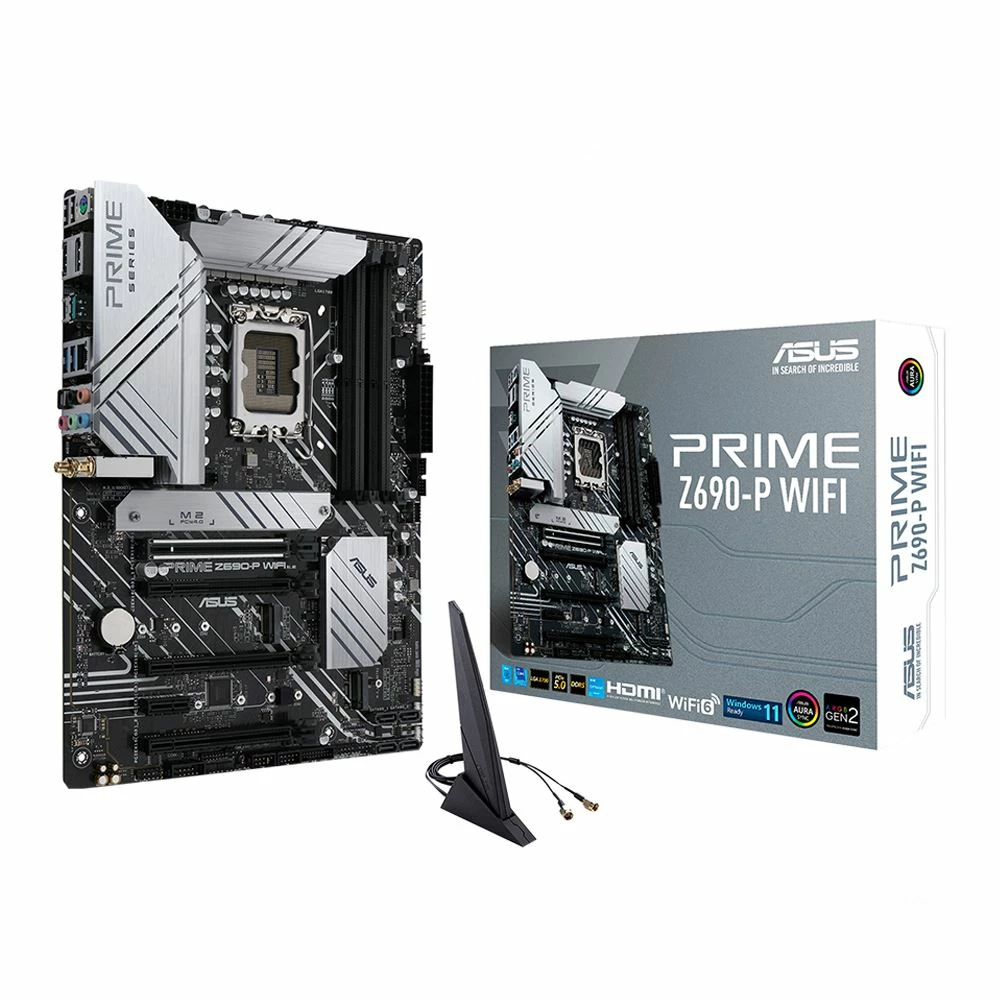

| What's in the Box | Motherboard, SATA Cables, Antennas, I/O Shield, M.2 Rubber Packages, M.2 Screws, Driver Disc, Guide |
