Sale!
$97.99

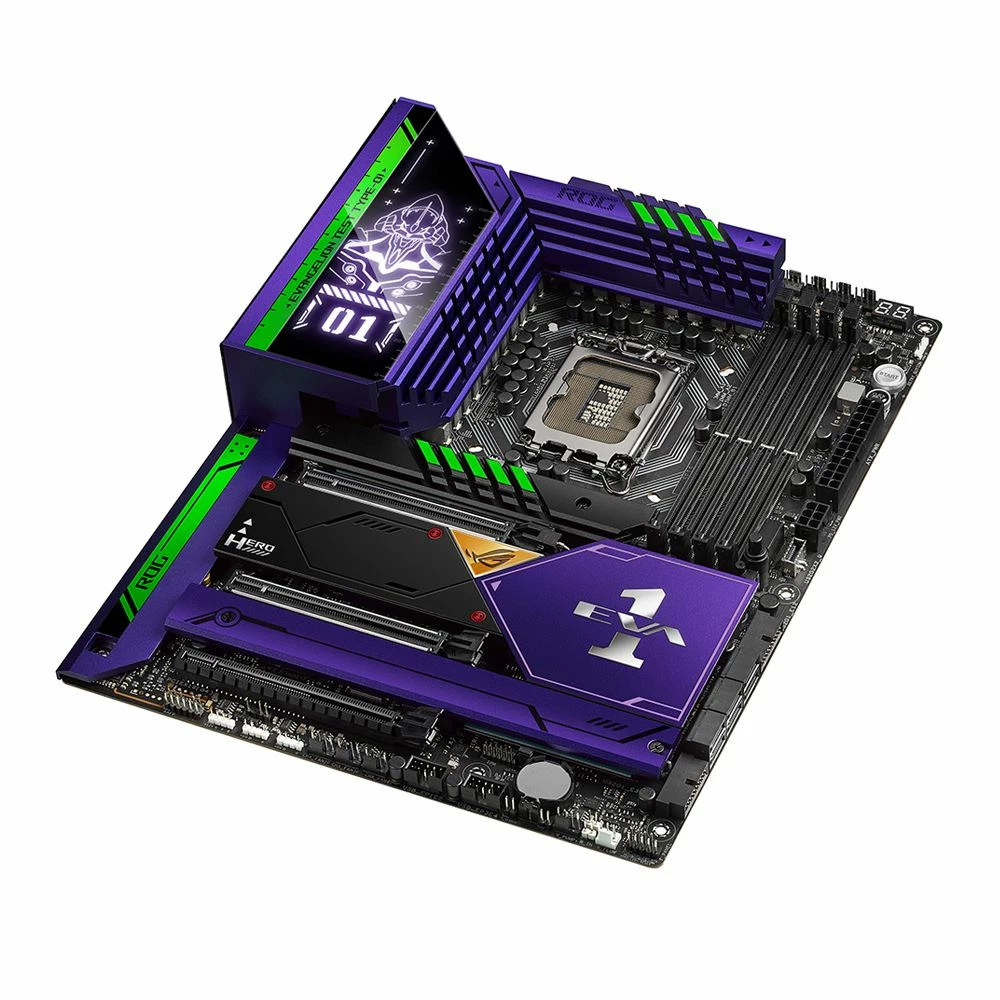

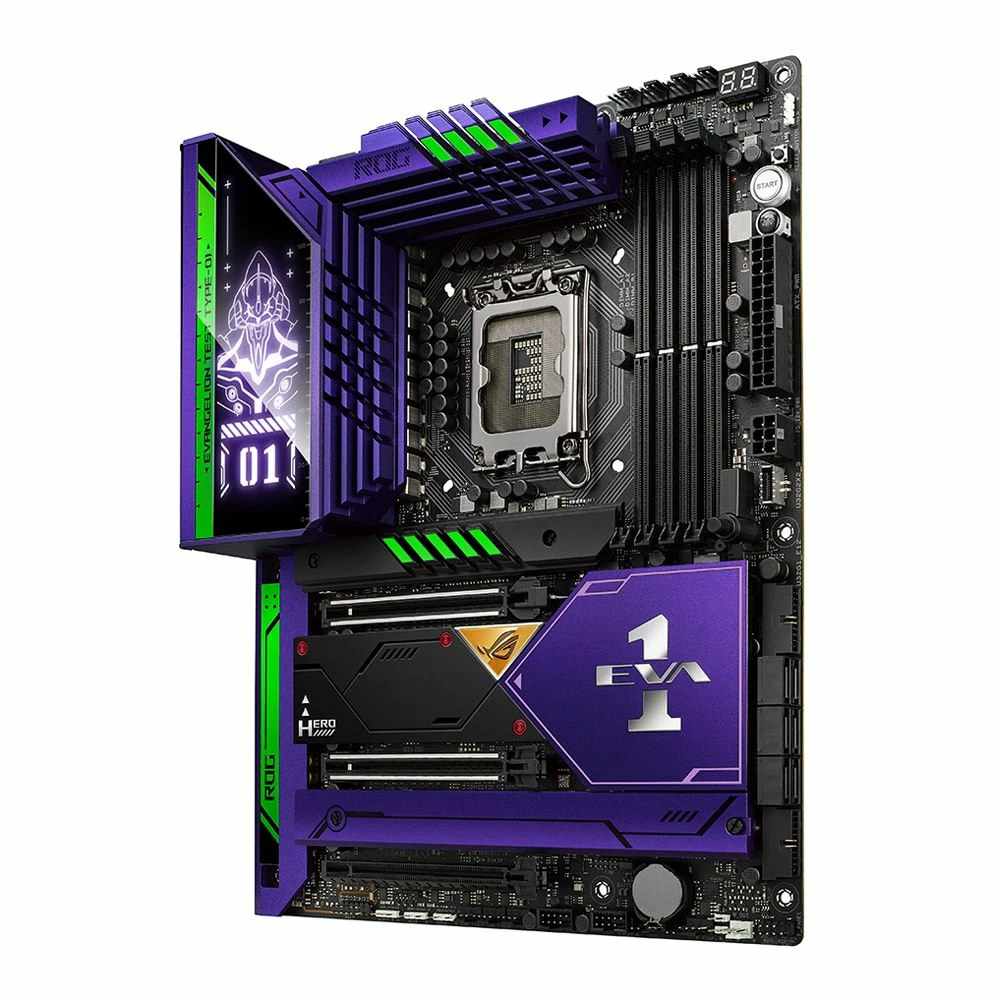

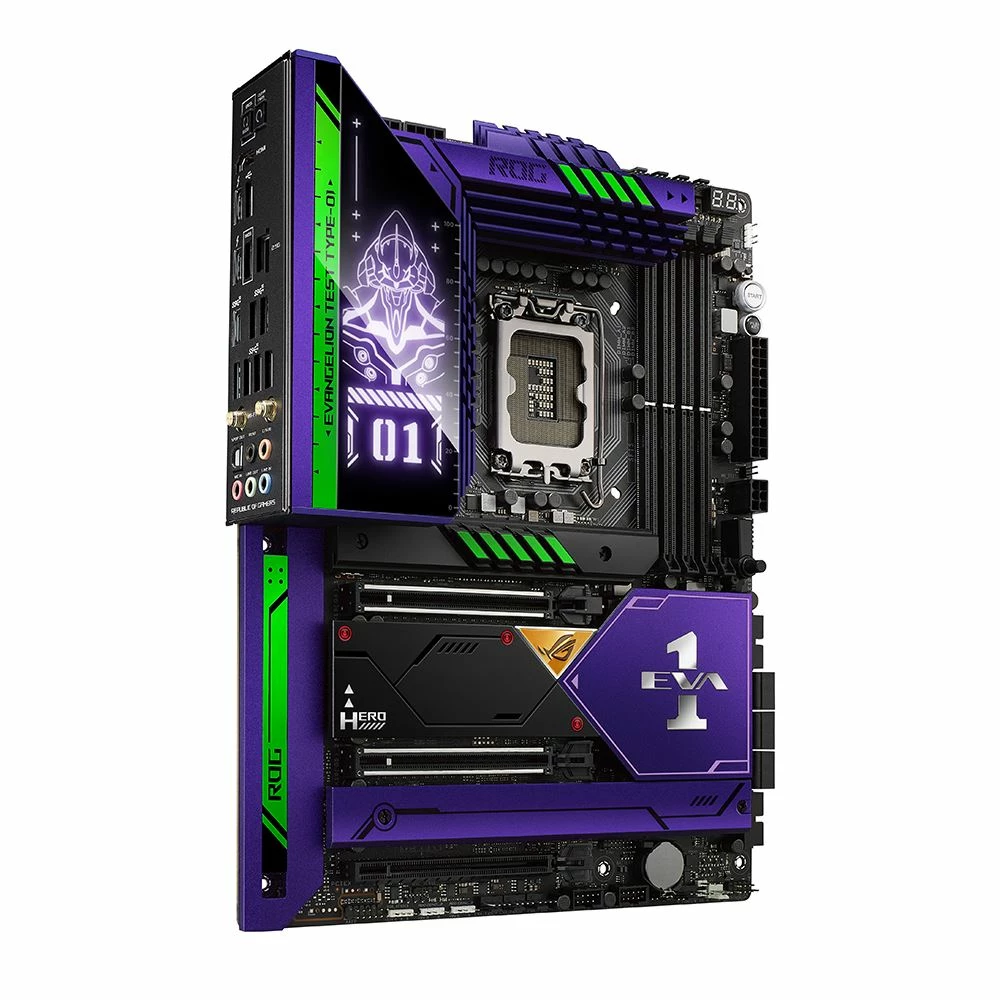

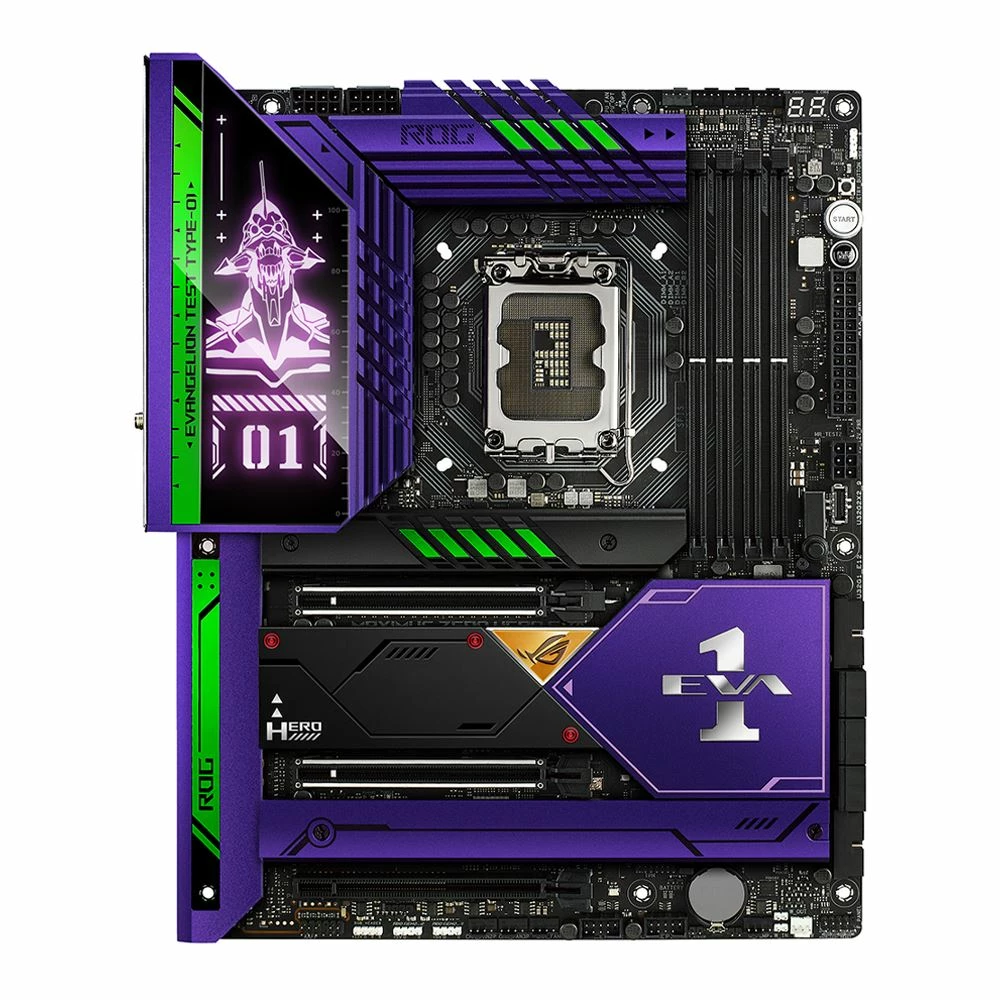

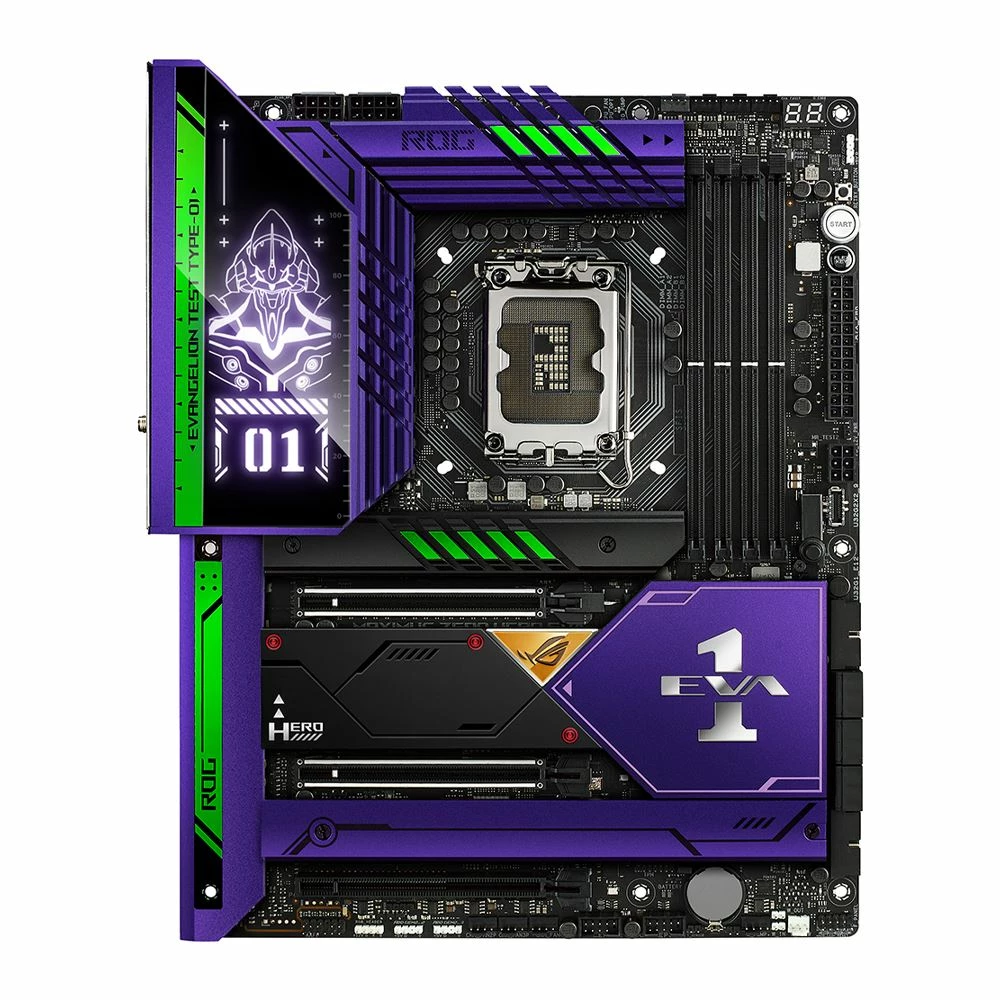

Its 2022. The Republic of Gamers is launching new equipment for the EVANGELION project. The ROG Maximus Z690 Hero EVA Edition is covered in the classic purple and green of the EVA-01 and is similarly well-equipped. Robust cooling and power delivery are poised to push the latest 12th Gen Intel Core processors to the max. An A.T. Field design around the CPU socket and polymo-lighting on the I/O cover that switches between EVA-01 normal and berserk modes is a further aesthetic treat.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
Its 2022. The Republic of Gamers is launching new equipment for the EVANGELION project. The ROG Maximus Z690 Hero EVA Edition is covered in the classic purple and green of the EVA-01 and is similarly well-equipped. Robust cooling and power delivery are poised to push the latest 12th Gen Intel Core processors to the max. An A.T. Field design around the CPU socket and polymo-lighting on the I/O cover that switches between EVA-01 normal and berserk modes is a further aesthetic treat.
| SKU | 408443 |
|---|---|
| Memory Type | DDR5-4800 |
| UPC | 195553762458 |
| Packaging | Retail |
| Microsoft Certifications | Windows 11 Ready |
| Manageability | WOL PXE |
| BIOS | 256Mb AMI UEFI Bios |
| North Bridge | Intel Z690 |
| Socket Type | LGA 1700 |
| Intel CPU Support | Core i7 Core i5 Core i3 Celeron Pentium Core i9 |
| Supported Memory Technologies | Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Audio Channels | 7.1 |
| Mfr Part# | MAXZ690HEROEVA |
| Memory Speeds Supported | 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Mhz |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2242 2260 2280 22110 |
| SATA Express | 5 x M.2 Socket 3 M key |
| SATA 6Gb/s | 6 |
| RAID Support | RAID 0 RAID 1 RAID 5 RAID 10 |
| Audio Chipset | ROG SupremeFX ALC4082 |
| Maximum Memory Supported Per Slot | 32GB |
| WiFi Support | Onboard WiFi |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Line-Out |
| Wireless LAN Chipset | 2×2 Wi-Fi 6E |
| Wireless Technology | 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.2 |
| PCI Express 4.0 x16 | 1 |
| PCI Express 5.0 x16 | 2 |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 2.0 | 2 x USB 2.0 (Type-A) |
| USB 3.1 | 1 x USB 3.2 (Gen 2 Type-C) 6 x USB 3.2 (Gen 2 Type-A) |
| Video Connectors | 1 x HDMI 2.1 |
| Thunderbolt Ports | 2 x Thunderbolt 4 |
| LAN Chipset | Intel 2.5Gb Ethernet |
| LAN Speed | 10/100/1000/2500Mbps |
| Digital Audio | 1 x Optical |
| Headers | 4 x System Fan Header 1 x Water Pump Header 2 x CPU Fan Header |
| USB | 2 x USB 2.0 Headers (4 Ports) 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports) 1 x USB 3.2 Gen 2×2 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 6-pin +12 V Connector 2 x 6-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | ATX |
| Parts | 2 Years |
| Labor | 2 Years |

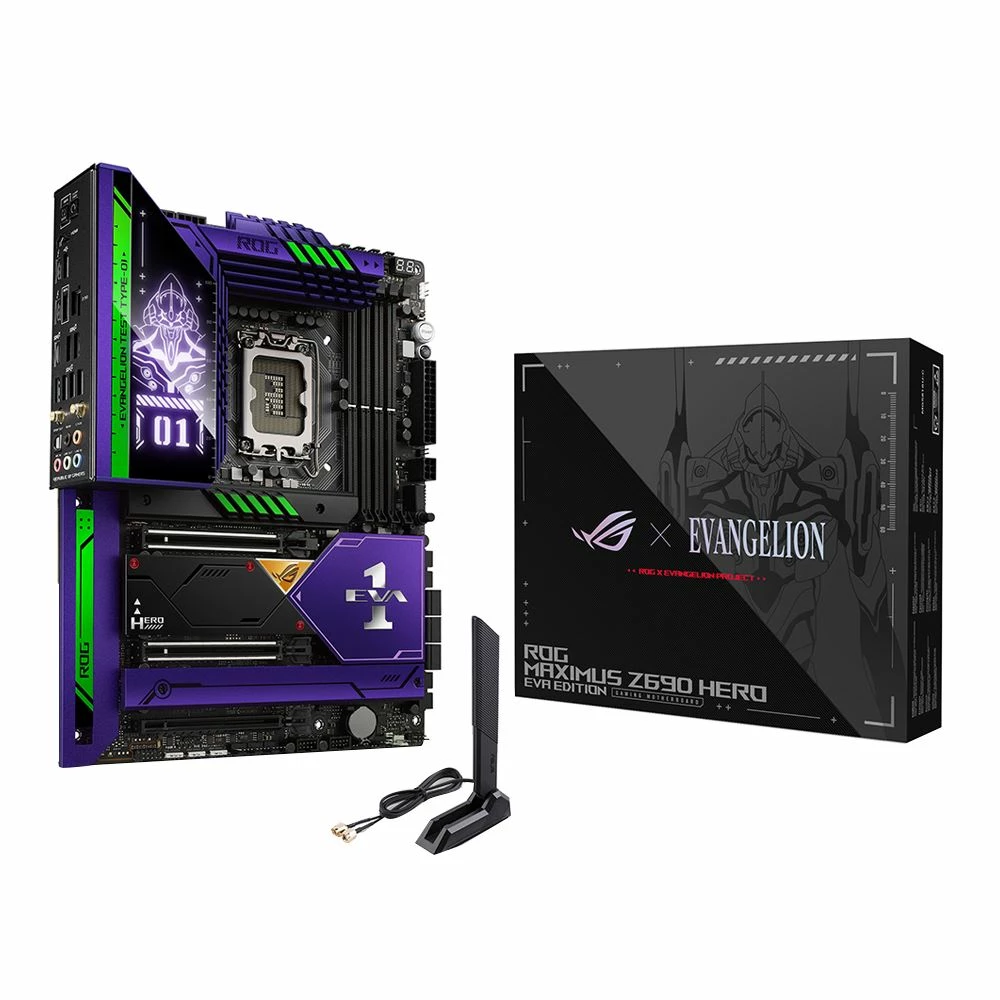

| What's in the Box | Motherboard, RGB Extension Cables, 4x SATA Cables, ROG Hyper M.2 Card, M.2 Screws, Antennas, M.2 Q-Latch Packages, M.2 Rubber Package, Q Connector, ROG Graphics Card Holder, ROG Stickers, ROG Key Chain, Driver USB, User Guide |
