$91.99

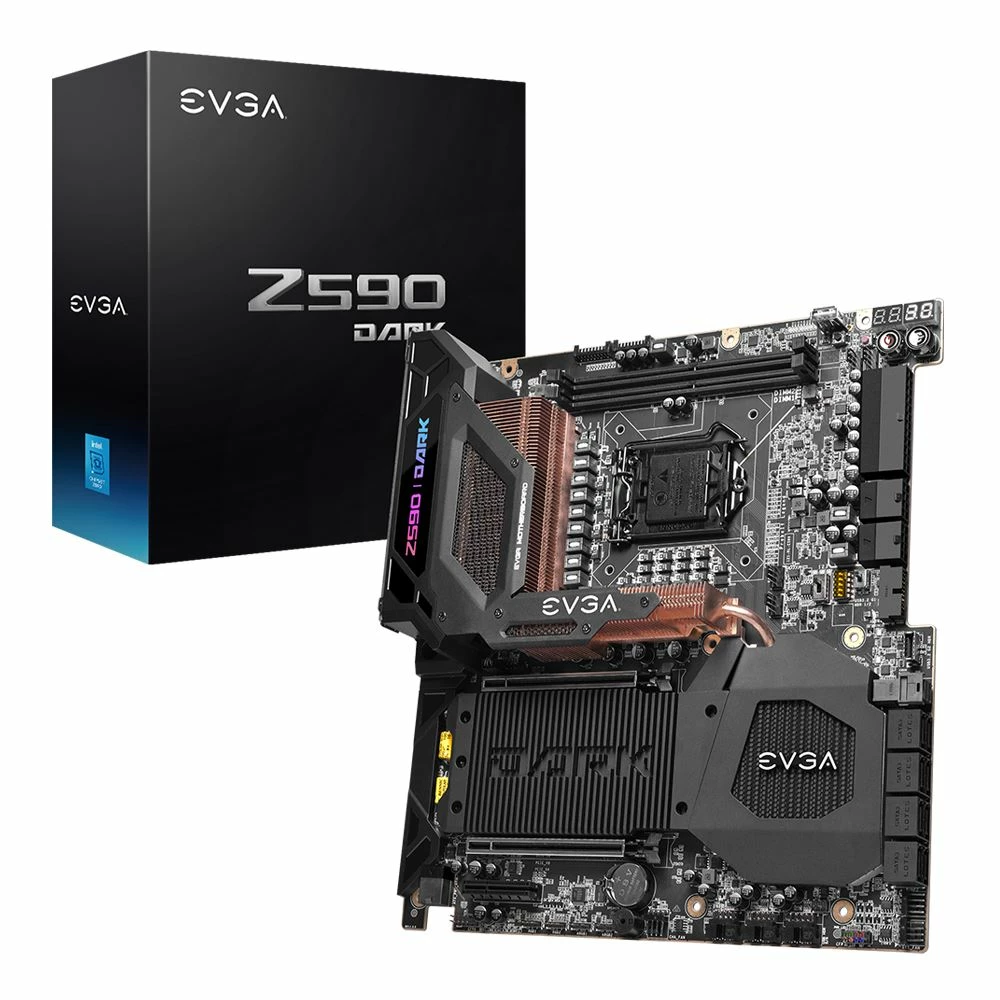

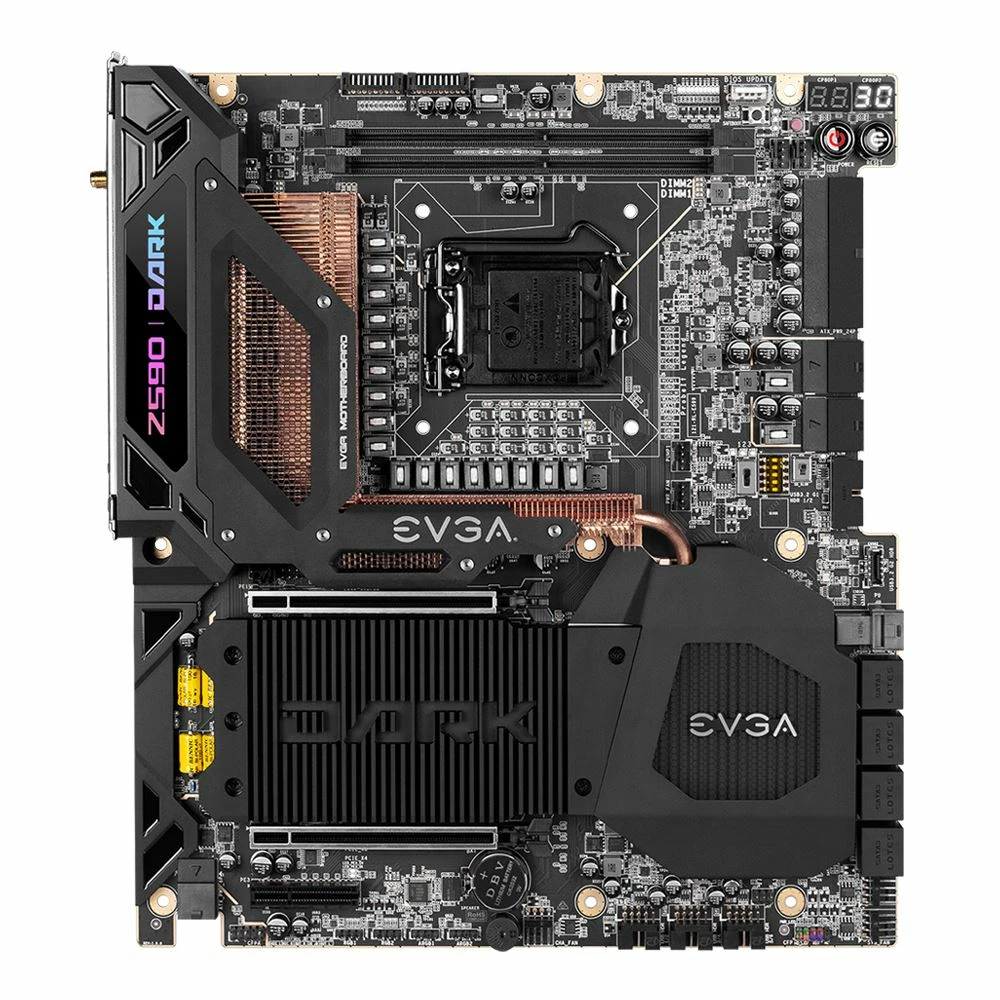

The EVGA Z590 DARK fully unleashes the power of 11th Gen Intel Core processors: which now support PCIe Gen4 graphics cards and NVMe SSDs. This armed and fully operational motherboard is born from a 10-layer PCB and powered by a 21-Phase VRM tailor-made for bleeding-edge performance with 5333MHz (OC) memory support. With a 100% copper heatsink and two built-in fans that enhance heat dissipation for the VRM: CPU: and memory: you can bring it in warm: or you can bring it in cold. For everyone else: he DARK is loaded with three M.2 Key-M slots: HDMI 2.0 and DP1.4a: eight SATA ports: 7.1 Channel HD Audio: ARGB/RGB headers: and two 3A pump fan headers. Two 2.5Gbs NICs are paired with an exclusive antenna to boost your WiFi 6/BT 5.2 performance. Enhanced with EVGA Eleet X1 for overclocking and customization: the Z590 DARK will ensure that you don’t leave your fate to chance.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
The EVGA Z590 DARK fully unleashes the power of 11th Gen Intel Core processors: which now support PCIe Gen4 graphics cards and NVMe SSDs. This armed and fully operational motherboard is born from a 10-layer PCB and powered by a 21-Phase VRM tailor-made for bleeding-edge performance with 5333MHz (OC) memory support. With a 100% copper heatsink and two built-in fans that enhance heat dissipation for the VRM: CPU: and memory: you can bring it in warm: or you can bring it in cold. For everyone else: he DARK is loaded with three M.2 Key-M slots: HDMI 2.0 and DP1.4a: eight SATA ports: 7.1 Channel HD Audio: ARGB/RGB headers: and two 3A pump fan headers. Two 2.5Gbs NICs are paired with an exclusive antenna to boost your WiFi 6/BT 5.2 performance. Enhanced with EVGA Eleet X1 for overclocking and customization: the Z590 DARK will ensure that you don’t leave your fate to chance.
| SKU | 346692 |
|---|---|
| WiFi Support | Onboard WiFi |
| Packaging | Retail |
| North Bridge | Intel Z590 |
| Socket Type | LGA 1200 |
| Intel CPU Support | Core i7 Core i5 Core i3 Celeron Pentium Core i9 |
| Maximum Memory Supported Per Slot | 32GB |
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2666 DDR4-2933 DDR4-3200 DDR4-2800 DDR4-3000 |
| Memory Speeds Supported | DDR4 5333MHz+(OC) |
| Max Memory Supported | 64GB |
| Memory Channel Support | Dual Channel |
| Memory Slots | 2 x 288pin DIMM |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| Multi-GPU Support | 2-Way SLI |
| M.2 Port Type | 2280 |
| SATA Express | 3 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 6 |
| RAID Support | RAID 0 RAID 1 RAID 5 RAID 10 |
| Audio Chipset | Realtek 1220 |
| Audio Channels | 7.1 |
| UPC | 843368070410 |
| Mfr Part# | 121-RL-E599-KR |
| Digital Audio | 1 x Optical |
| Headers | 4 x System Fan Header 2 x CPU Fan Header 2 x Water Pump Header |
| Wireless Technology | 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.2 |
| PCI Express 4.0 x16 | 2 |
| Legacy Ports | 1 x PS/2 |
| LAN Ports | 2 x 10/100/1000/2500 RJ-45 LAN |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Line-Out |
| USB 3.1 | 1 x USB 3.2 (Gen 2×2 Type-C) 2 x USB 3.2 (Gen 1 Type-A) 4 x USB 3.2 (Gen 2 Type-A) |
| Video Connectors | 1 x HDMI 2.0 1 x DisplayPort 1.4 |
| Specialty Ports | 2 x WiFi Antenna Ports |
| LAN Speed | 10/100/1000/2500Mbps |
| LAN Chipset | Intel I225V Gigabit NICs |
| USB | 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) 1 x USB 3.2 Gen 2 Type-C Header (1 Port) 3 x USB 3.2 Gen 1 Type-A Headers (6 Ports) |
| Power Connectors | 1 x 24-pin ATX Connector 2 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 10.89 in. (276.61 mm) |
| Form Factor | eATX |
| Parts | 3 Years |
| Labor | 3 Years |
| Wireless LAN Chipset | Intel AX201 Wi-Fi 6 |
| What's in the Box | Motherboard, SATA Data Cables, M.2 Thermal Pads, Wi-Fi Antenna, Probelt Cable, Baseplate, Screws and Standoffs, Case Badge, USB Flash Drive w/ Drivers and Manual |
