Sale!
$47.39
GIGABYTE UD series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen CPUs by offering incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
GIGABYTE UD series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen CPUs by offering incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
| SKU | 168070 |
|---|---|
| Maximum Memory Supported Per Slot | 32GB |
| UPC | 889523023372 |
| Packaging | Retail |
| Manageability | PnP 1.0a WfM 2.0 SM BIOS 2.7 ACPI 5.0 DMI 2.7 |
| BIOS | 128Mb AMI UEFI Bios |
| North Bridge | AMD A520 |
| Socket Type | AM4 |
| AMD CPU Support | Ryzen |
| SATA 6Gb/s | 4 |
| Mfr Part# | A520M DS3H |
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2667 DDR4-2933 DDR4-3200 |
| Memory Speeds Supported | 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2242 2260 2280 |
| SATA Express | 1 x M.2 Socket 3 M Key |
| Supported Memory Technologies | ECC Memory Supported Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| RAID Support | RAID 0 RAID 1 RAID 10 |

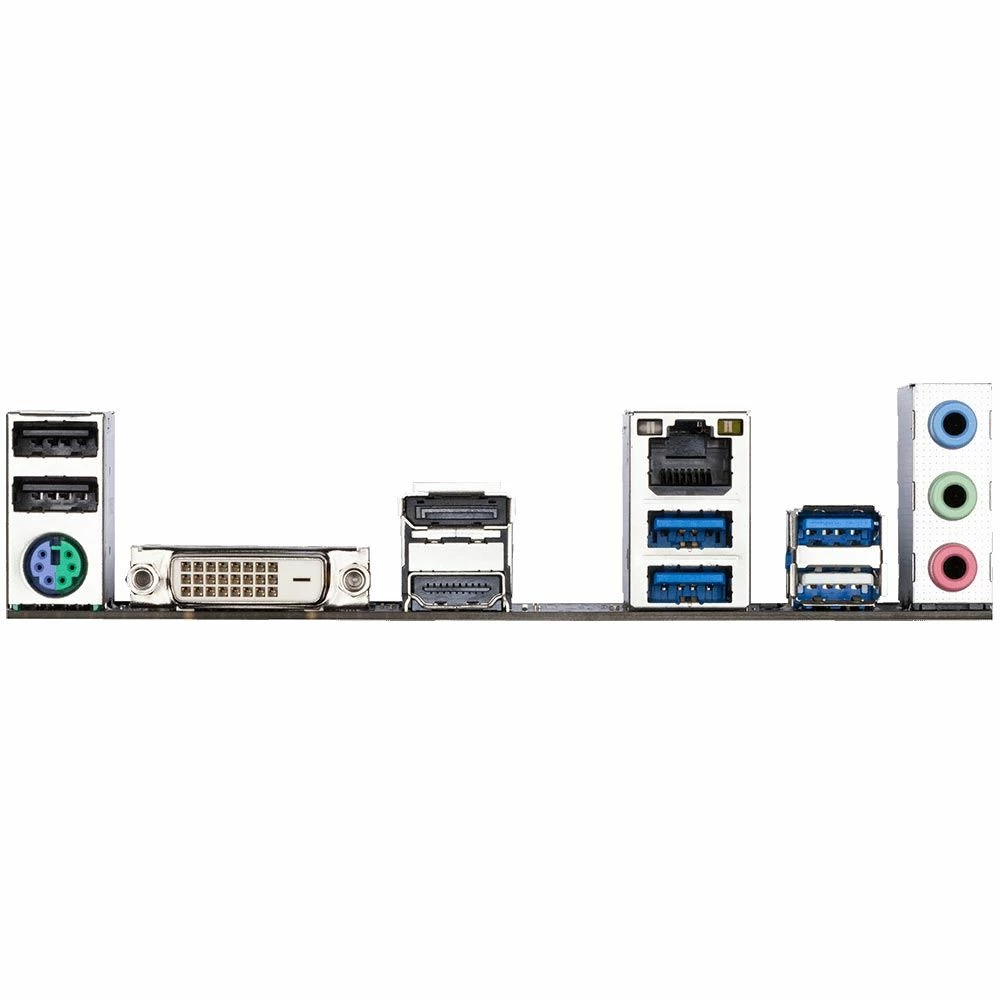

| Video Connectors | 1 x DisplayPort 1.2 1 x DVI-D 1 x HDMI 1.4 |
| Headers | 1 x CPU Fan Header 2 x System Fan Header |
| PCI Express 3.0 x16 | 1 |
| PCI Express x1 | 2 |
| Legacy Ports | 1 x PS/2 |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Line-Out |
| LAN Ports | 1 x 10/100/1000 RJ-45 LAN |
| USB 2.0 | 2 x USB 2.0 (Type-A) |
| USB 3.1 | 4 x USB 3.2 (Gen 1 Type-A) |
| LAN Chipset | Realtek GbE LAN |
| LAN Speed | 10/100/1000Mbps |
| USB | 1 x USB 2.0 Header (2 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 9.61 in. (244.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | microATX |
| Parts | 3 Years |
| Labor | 3 Years |
| What's in the Box | Motherboard, Driver Disc, Manual, Antennas, 2x SATA Cable, I/O Shield |
