Sale!
$91.99

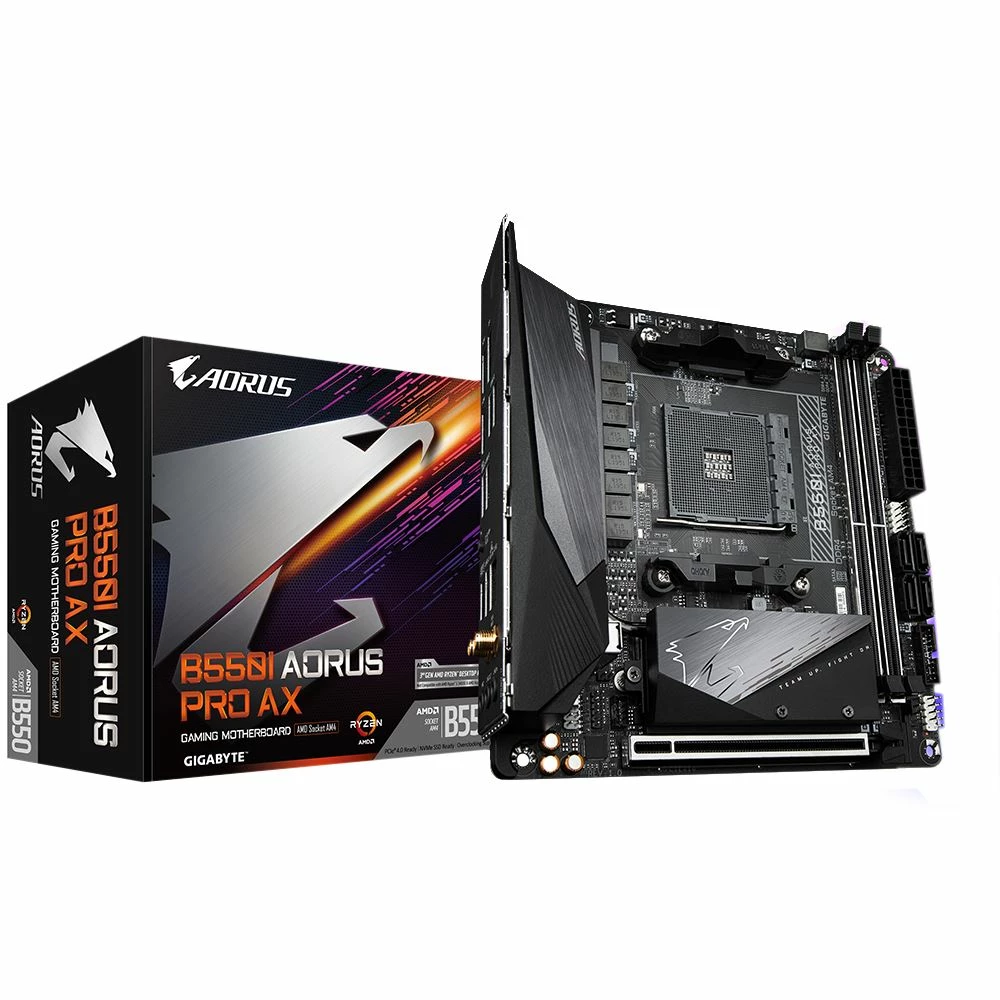

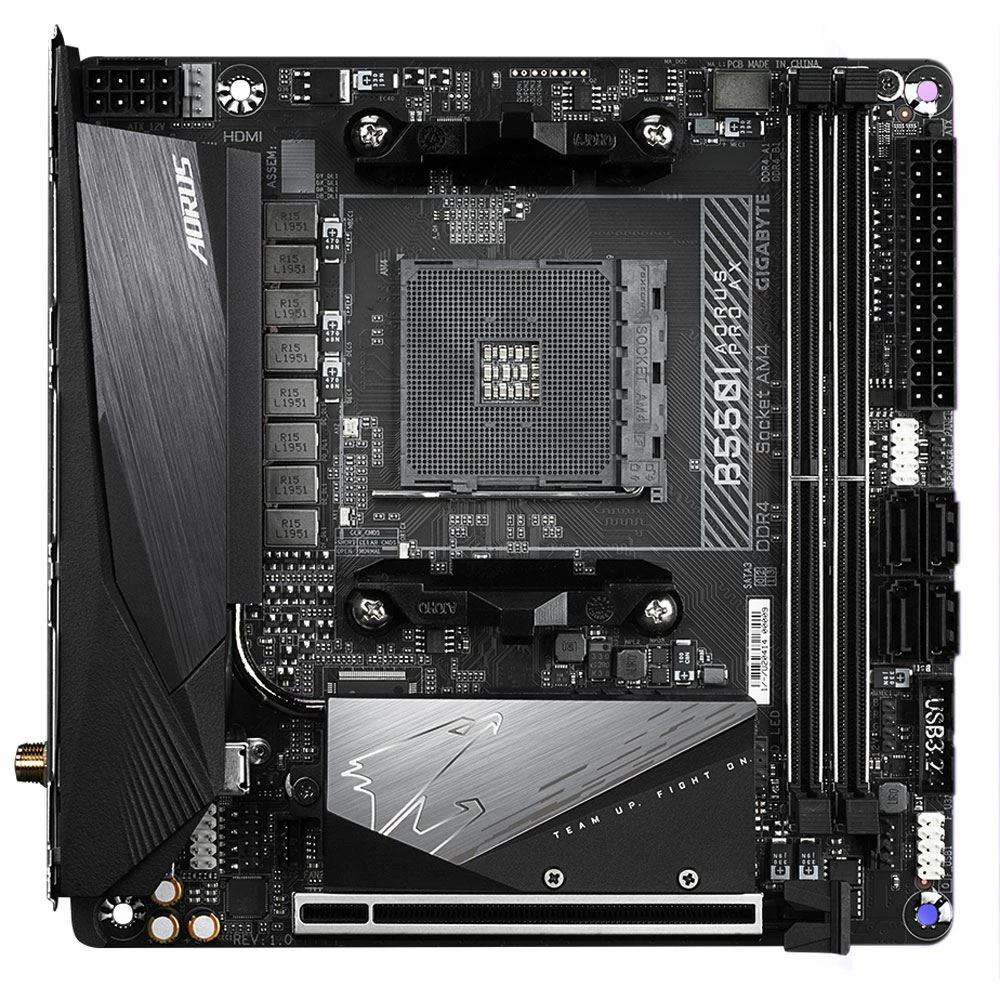

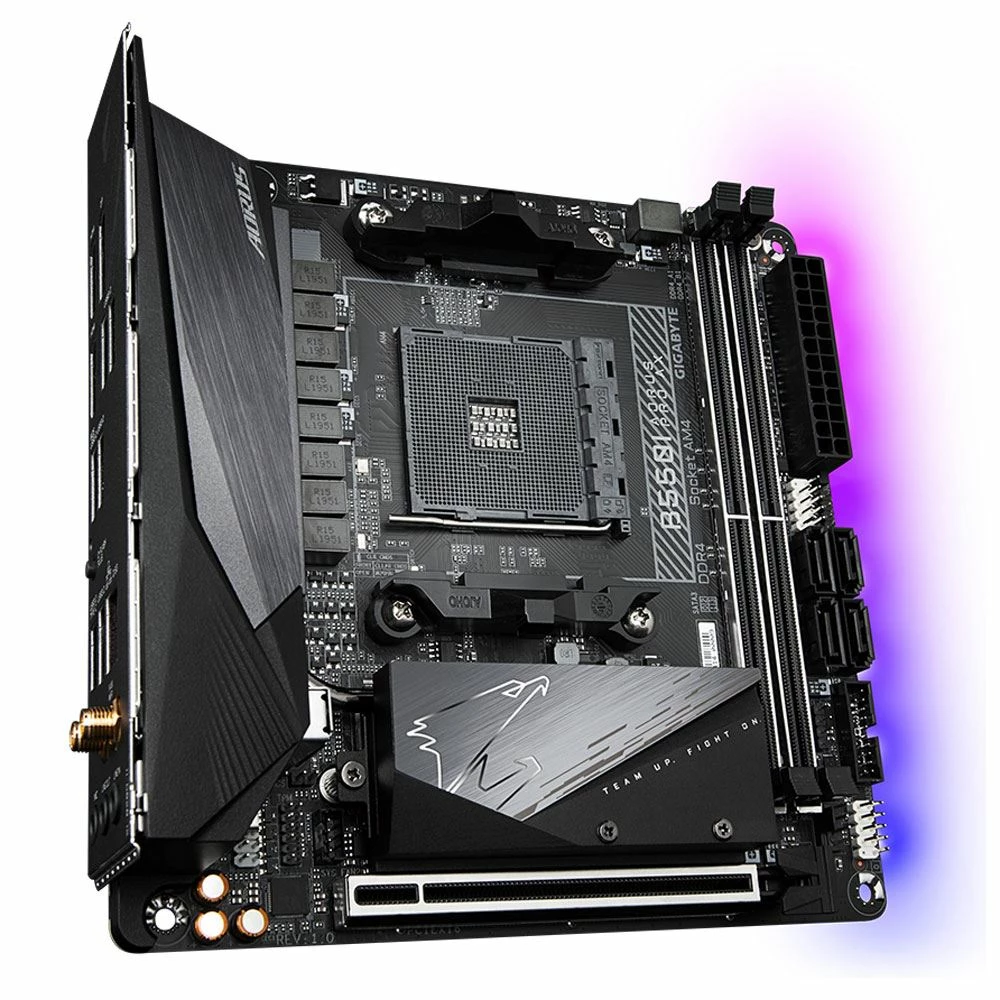

B550I AORUS PRO AX is a mini-ITX motherboard perfect for building a small form factor PC for people who demands higher performance but also cares about aesthetics. The compact yet powerful pc delivers amazing performance with the latest CPU, graphic card and blazing fast connectivity. It also equips with comprehensive thermal solution to keep it cool under heavy workload. Performance is not compromised by its size.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
B550I AORUS PRO AX is a mini-ITX motherboard perfect for building a small form factor PC for people who demands higher performance but also cares about aesthetics. The compact yet powerful pc delivers amazing performance with the latest CPU, graphic card and blazing fast connectivity. It also equips with comprehensive thermal solution to keep it cool under heavy workload. Performance is not compromised by its size.
| SKU | 137950 |
|---|---|
| Audio Chipset | Realtek ALC1220-VB |
| Packaging | Retail |
| Manageability | PnP 1.0a WfM 2.0 SM BIOS 2.7 ACPI 5.0 DMI 2.7 |
| BIOS | 256Mb AMI UEFI Bios |
| North Bridge | AMD B550 |
| Socket Type | AM4 |
| AMD CPU Support | Ryzen |
| Supported Memory Technologies | ECC Memory Supported Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2667 DDR4-2933 DDR4-3200 |
| Memory Speeds Supported | 4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 |
| Maximum Memory Supported Per Slot | 32GB |
| Memory Slots | 2 x 288pin DIMM |
| Max Memory Supported | 64GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2260 2280 |
| SATA Express | 2 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 4 |
| RAID Support | RAID 0 RAID 1 RAID 10 |
| UPC | 889523022986 |
| Mfr Part# | B550IAORUSPROAX |

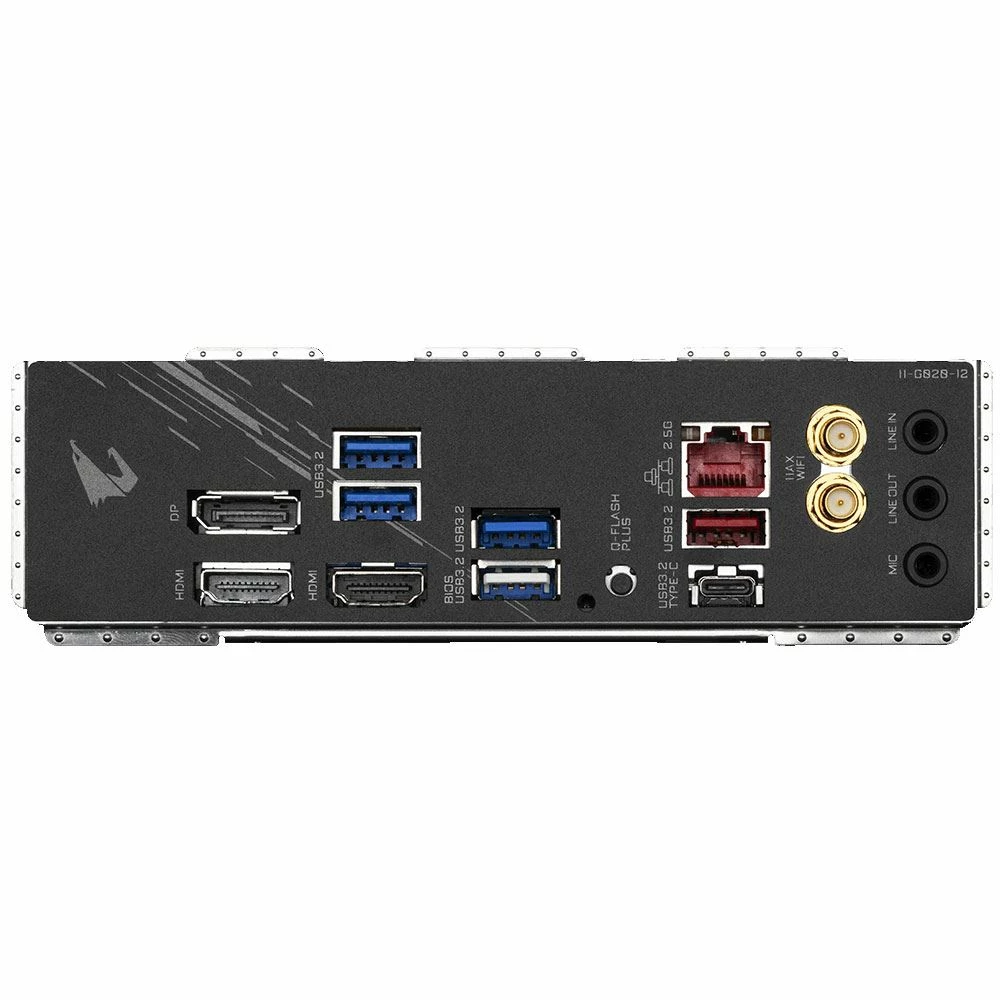

| Video Connectors | 1 x DisplayPort 1.2 2 x HDMI 1.4 |
| Headers | 1 x CPU Fan Header 2 x System Fan Header |
| LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN Chipset | Intel Wi-Fi 6 AX200 |
| Wireless Technology | 802.11b 802.11g 802.11a Bluetooth v5.0 WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) |
| PCI Express 4.0 x16 | 1 |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Line-Out |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 3.1 | 4 x USB 3.2 (Gen 1 Type-A) 1 x USB 3.2 (Gen 2 Type-C) 1 x USB 3.2 (Gen 2 Type-A) |
| WiFi Support | Onboard WiFi |
| Audio Channels | 7.1 |
| USB | 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) 1 x USB 2.0 Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 6.70 in. (170.00 mm) |
| Width | 6.70 in. (170.00 mm) |
| Form Factor | Mini-ITX |
| Parts | 3 Years |
| Labor | 3 Years |
| LAN Chipset | Realtek 2.5GbE |
| What's in the Box | Motherboard, Driver Disc, Manual, 2x SATA Cables, M.2 Screws and Standoffs, Antenna, Fan Power Extension Cable, RGB LED Extension Cable |
