$75.89
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading. GIGABYTE B660 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading. GIGABYTE B660 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
| SKU | 367805 |
|---|---|
| Maximum Memory Supported Per Slot | 32GB |
| Packaging | Retail |
| Microsoft Certifications | Windows 11 Ready |
| Manageability | PnP 1.0a WfM 2.0 SM BIOS 2.7 ACPI 5.0 DMI 2.7 |
| BIOS | 256Mb AMI UEFI Bios |
| North Bridge | Intel B660 |
| Socket Type | LGA 1700 |
| Intel CPU Support | Core i7 Core i5 Core i3 Celeron Pentium Core i9 |
| SATA 6Gb/s | 4 |
| Supported Memory Technologies | ECC Memory Supported Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2666 DDR4-2933 DDR4-3200 DDR4-3000 |
| Memory Speeds Supported | 3200/3000/2933/2666/2400/2133 MHz |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2260 2280 |
| SATA Express | 2 x M.2 Socket 3 M Key |
| UPC | 889523030523 |
| Mfr Part# | B660M DS3H DDR4 |

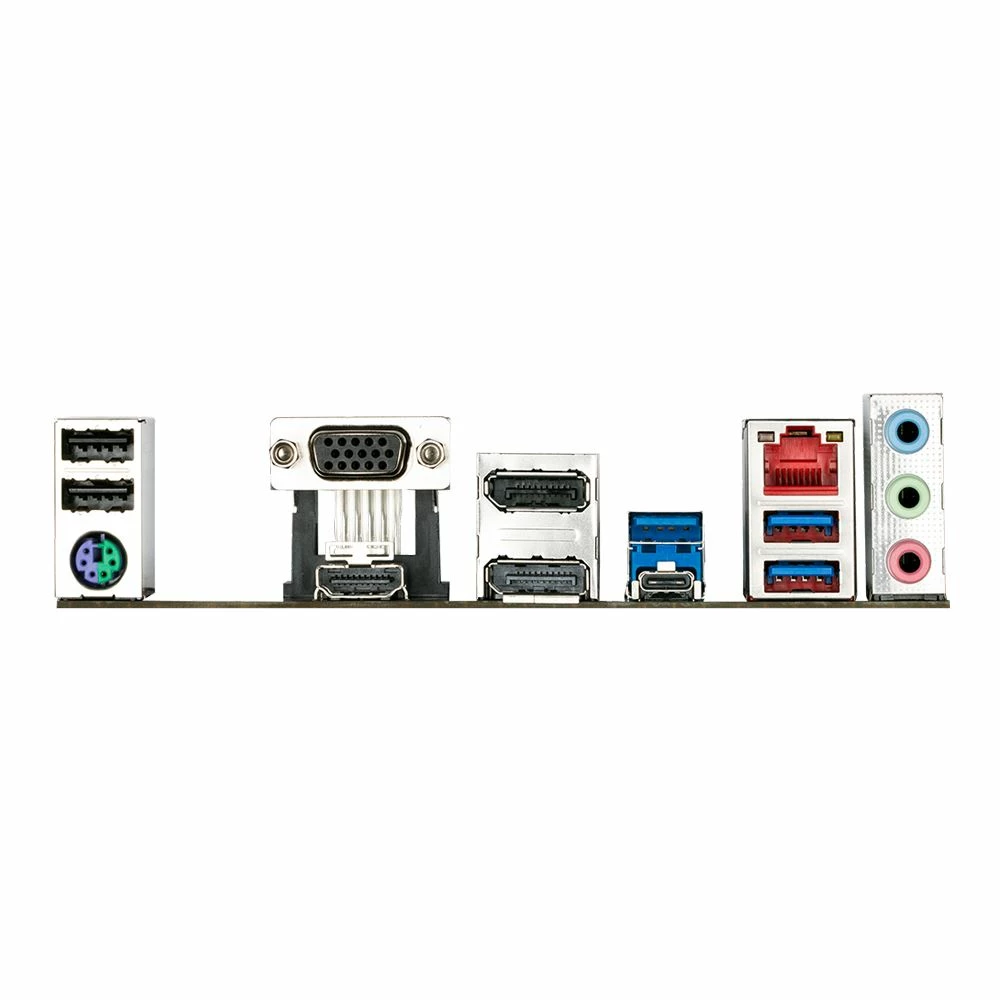

| Video Connectors | 1 x VGA 15-pin 2 x DisplayPort 1.2 1 x HDMI 2.0 |
| Audio Channels | 7.1 |
| PCI Express 4.0 x16 | 1 |
| PCI Express x1 | 1 |
| Legacy Ports | 1 x PS/2 |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Line-Out |
| USB 2.0 | 2 x USB 2.0 (Type-A) |
| USB 3.1 | 1 x USB 3.2 (Gen 2 Type-C) 3 x USB 3.2 (Gen 1 Type-A) |
| Headers | 1 x CPU Fan Header 3 x System Fan Header |
| USB | 2 x USB 2.0 Headers (4 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) |
| RAID Support | RAID 0 RAID 1 RAID 5 RAID 10 |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 9.61 in. (244.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | microATX |
| Parts | 3 Years |
| Labor | 3 Years |
| LAN Speed | 10/100/1000/2500Mbps |
| What's in the Box | Motherboard, Manual, I/O Shield, M.2 Screws |
