$94.99
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
| SKU | 332072 |
|---|---|
| WiFi Support | Onboard WiFi |
| Packaging | Retail |
| North Bridge | AMD X570 |
| Socket Type | AM4 |
| AMD CPU Support | Ryzen |
| Supported Memory Technologies | ECC Memory Supported Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Maximum Memory Supported Per Slot | 32GB |
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2667 DDR4-2933 DDR4-3200 DDR4-2800 DDR4-3000 |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Speeds Supported | 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4866/ 5000/ 5100/ 5200/ 5300+Mhz by JEDEC and A-XMP OC MODE |
| Memory Channel Support | Dual Channel |
| Multi-GPU Support | 2-Way SLI 2-Way CrossFire |
| M.2 Port Type | 2280 22110 |
| SATA Express | 4 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 8 |
| RAID Support | RAID 0 RAID 1 RAID 10 |
| Audio Chipset | Realtek ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA |
| Audio Channels | 7.1 |
| UPC | 824142266021 |
| Mfr Part# | MEG X570S ACE M |
| Digital Audio | 1 x Optical |
| Headers | 1 x CPU Fan Header 1 x Water Pump Header 6 x System Fan Header |
| Wireless Technology | 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.2 |
| PCI Express 4.0 x16 | 3 |
| PCI Express x1 | 1 |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Line-Out |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 2.0 | 4 x USB 2.0 (Type-A) |
| USB 3.1 | 4 x USB 3.2 (Gen 1 Type-A) 1 x USB 3.2 (Gen 2×2 Type-C) 3 x USB 3.2 (Gen 2 Type-A) |
| LAN Speed | 10/100/1000/2500Mbps |
| LAN Chipset | Realtek RTL8125B |
| USB | 2 x USB 2.0 Headers (4 Ports) 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports) 1 x USB 3.2 Gen 2 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 2 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | ATX |
| Parts | 3 Years |
| Labor | 3 Years |
| Wireless LAN Chipset | Intel Wi-Fi 6E AX210 |

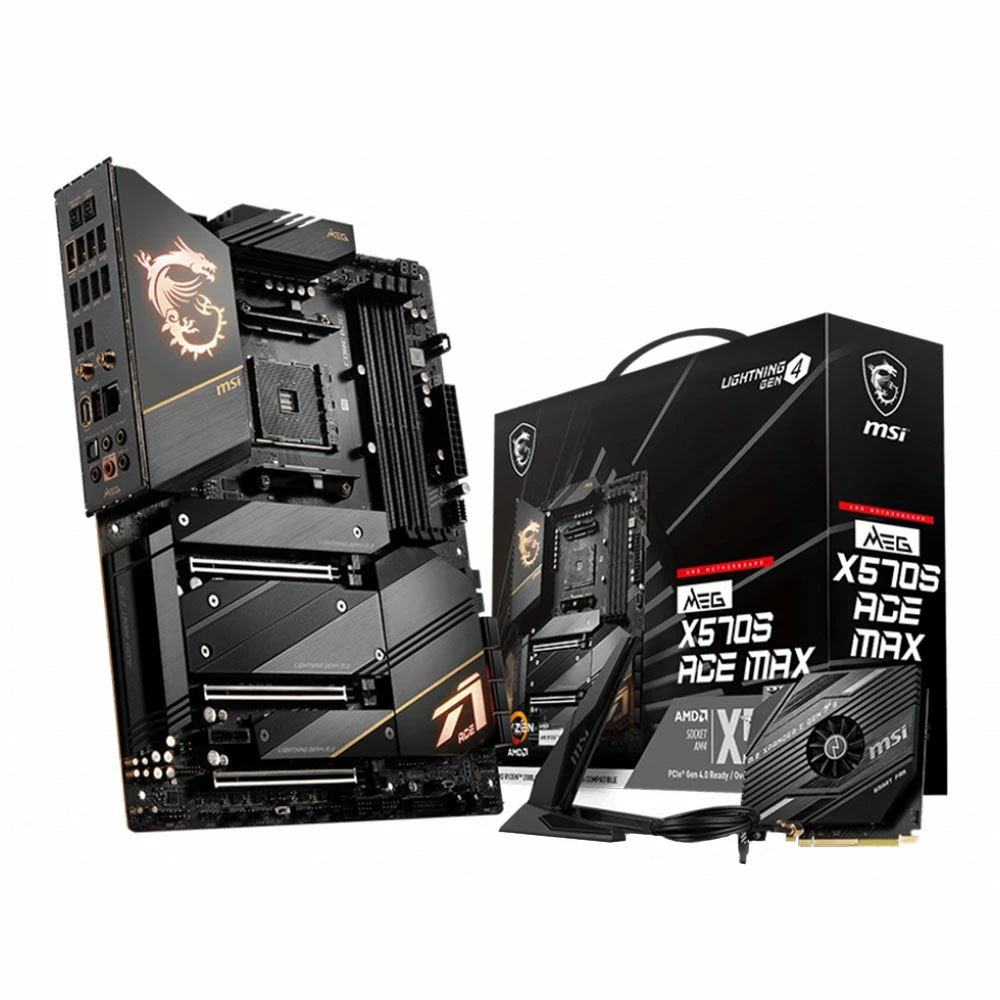

| What's in the Box | Motherboard, Manual, Install Guide, USB Drive w/ Driver, 4x SATA Cables, JRGB Y Cable, JCORSAIR Cable, JRAINBOW Cable, Thermistor Cables, Antenna, M.2 XPANDER-Z GEN 4 S Card, M.2 Screws and Standoffs, Case Badge, MEG Sticker, SATA Cable Labels, Registration Card, Screwdriver Set, Small Brush |
