Sale!
$93.99
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
| SKU | 332122 |
|---|---|
| Memory Channel Support | Dual Channel |
| Packaging | Retail |
| North Bridge | AMD X570 |
| Socket Type | AM4 |
| AMD CPU Support | Ryzen |
| Maximum Memory Supported Per Slot | 32GB |
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2667 DDR4-2933 DDR4-3200 DDR4-2800 DDR4-3000 |
| Memory Speeds Supported | 5300(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)/ 1866(JEDEC) MHz |
| Memory Slots | 4 x 288pin DIMM |
| LAN Chipset | Realtek RTL8125B |
| Max Memory Supported | 128GB |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| Multi-GPU Support | 2-Way CrossFire |
| M.2 Port Type | 2242 2260 2280 22110 |
| SATA Express | 4 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 8 |
| RAID Support | RAID 0 RAID 1 RAID 10 |
| Audio Chipset | Realtek ALC4080 |
| Audio Channels | 7.1 |
| WiFi Support | Onboard WiFi |
| UPC | 824142267837 |
| Mfr Part# | MPGX570SCARBONE |

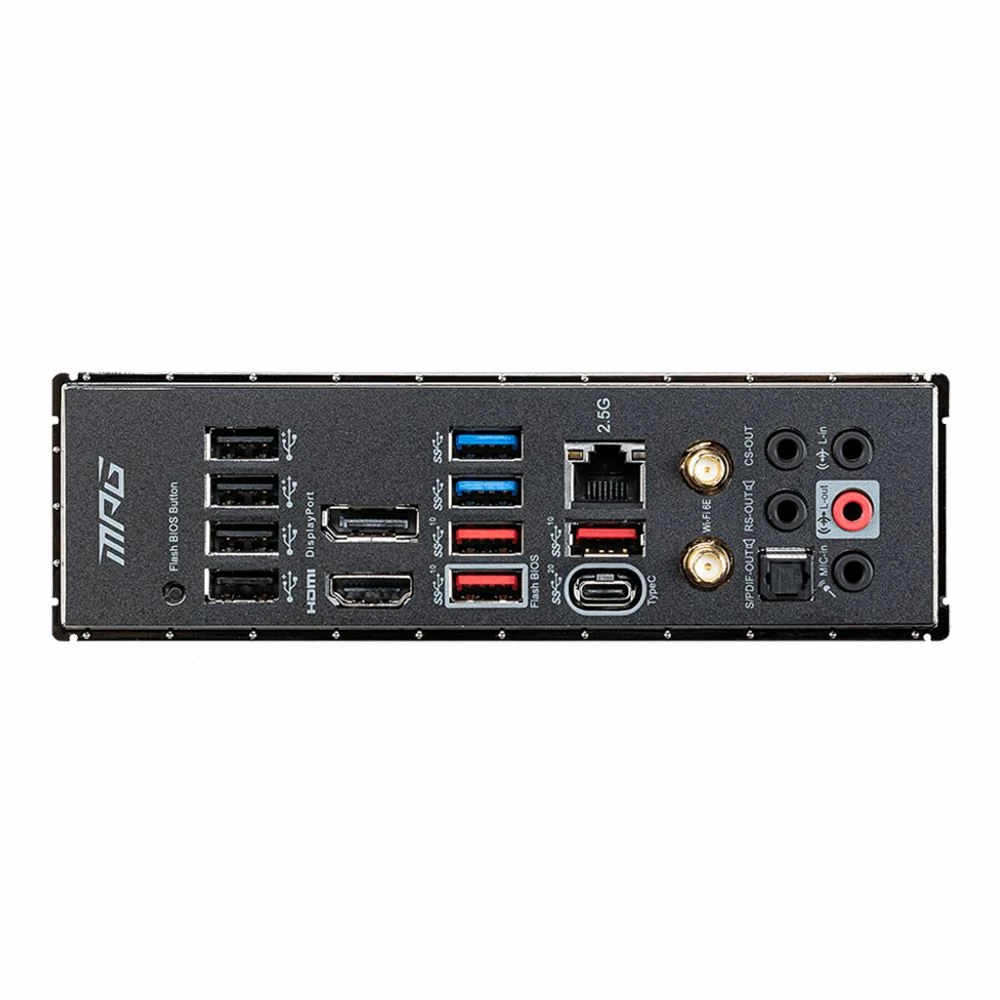

| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Line-Out |
| Wireless LAN Chipset | Intel Wi-Fi 6E AX210 |
| PCI Express 4.0 x16 | 2 |
| PCI Express x1 | 2 |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 2.0 | 2 x USB 2.0 (Type-A) |
| USB 3.1 | 4 x USB 3.2 (Gen 1 Type-A) 1 x USB 3.2 (Gen 2×2 Type-C) 3 x USB 3.2 (Gen 2 Type-A) |
| Video Connectors | 1 x HDMI 2.1 |
| Legacy Ports | 1 x PS/2 |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| Digital Audio | 1 x Optical |
| Headers | 1 x CPU Fan Header |
| LAN Speed | 10/100/1000/2500Mbps |
| USB | 2 x USB 2.0 Headers (4 Ports) 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports) 1 x USB 3.2 Gen 2 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector 1 x 4-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | ATX |
| Parts | 3 Years |
| Labor | 3 Years |
| Wireless Technology | 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.2 |

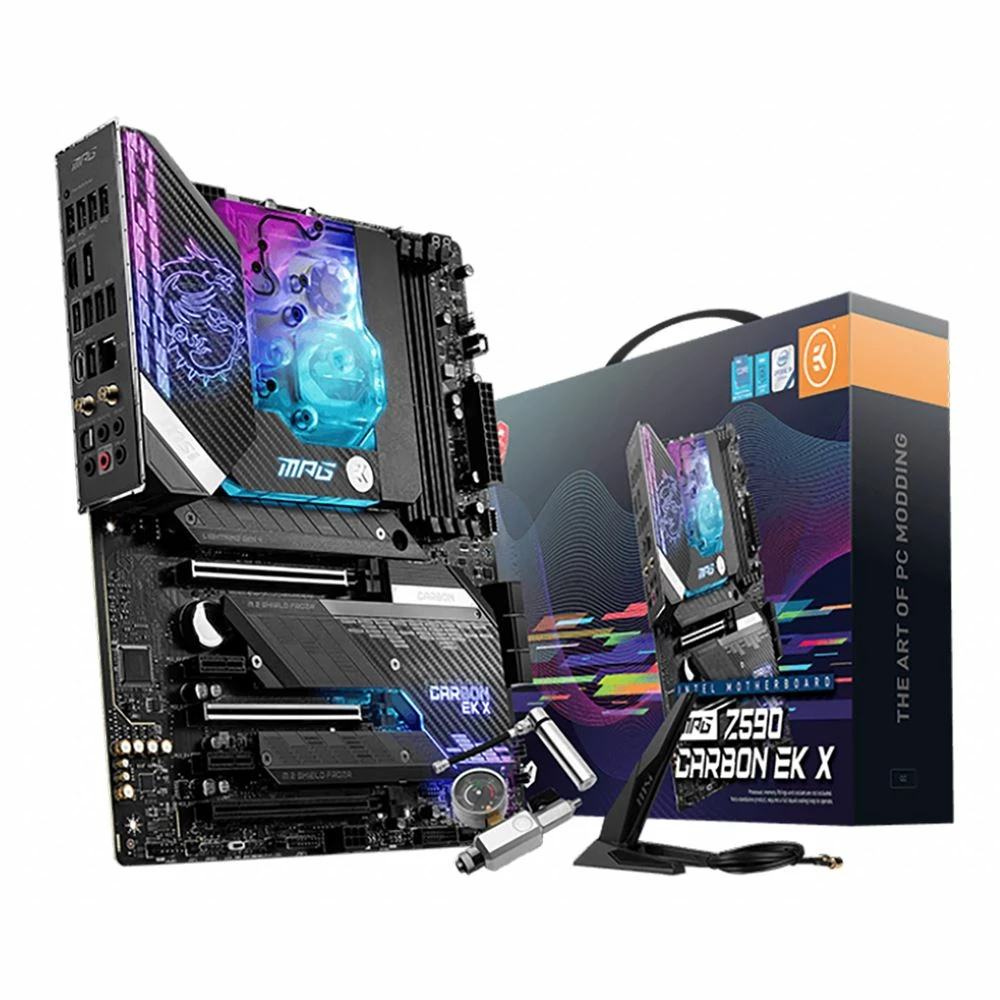

| What's in the Box | Motherboard, USB Drive w/ Drivers, Antenna, EK Leak Tester, Manual, Install Guide, M.2 Screws and Standoffs, Screwdrivers, Thermistor Cable, 2x SATA Cables, RGB LED Extension Y Cable, CORSAIR RGB Extension Cable, Rainbow RGB Extension Cable, Cable Stickers, MPG Stickers, Case Badge, Cleaning Brush, Registration Card |
