Original price was: $499.00.$91.99Current price is: $91.99.

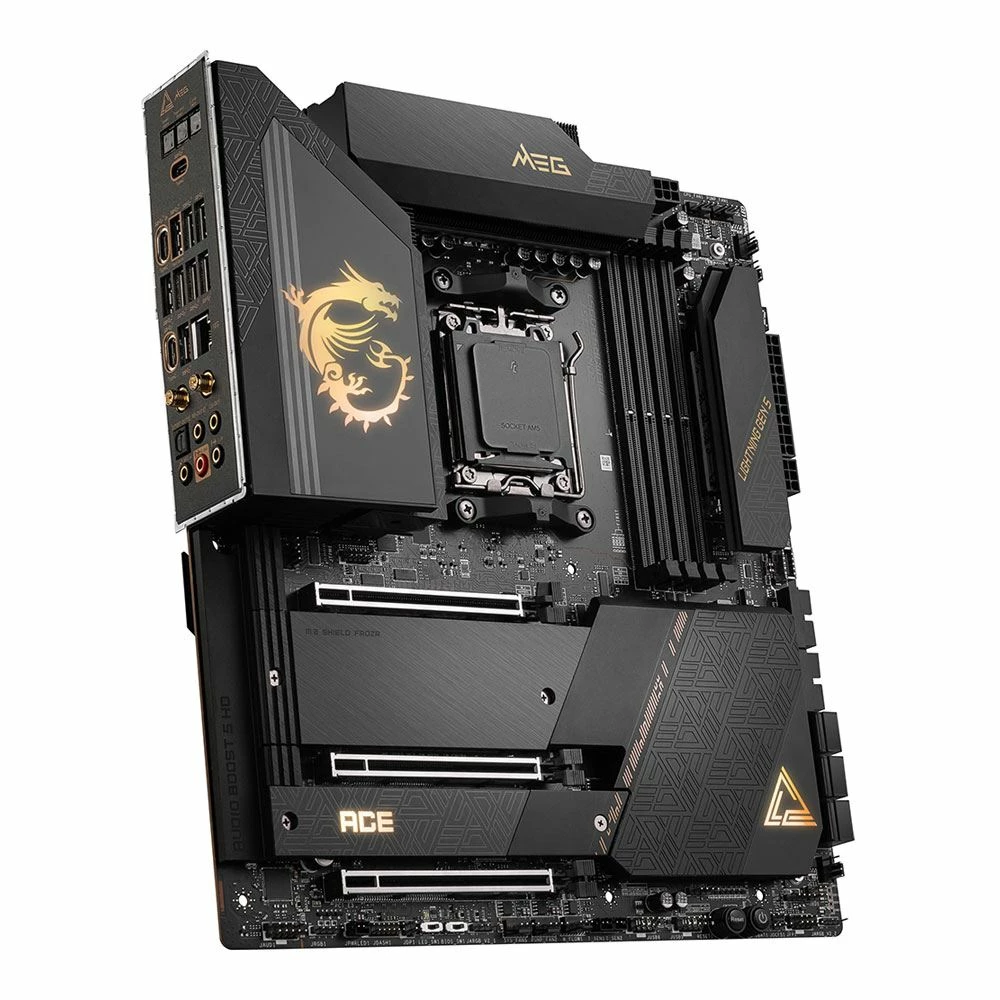

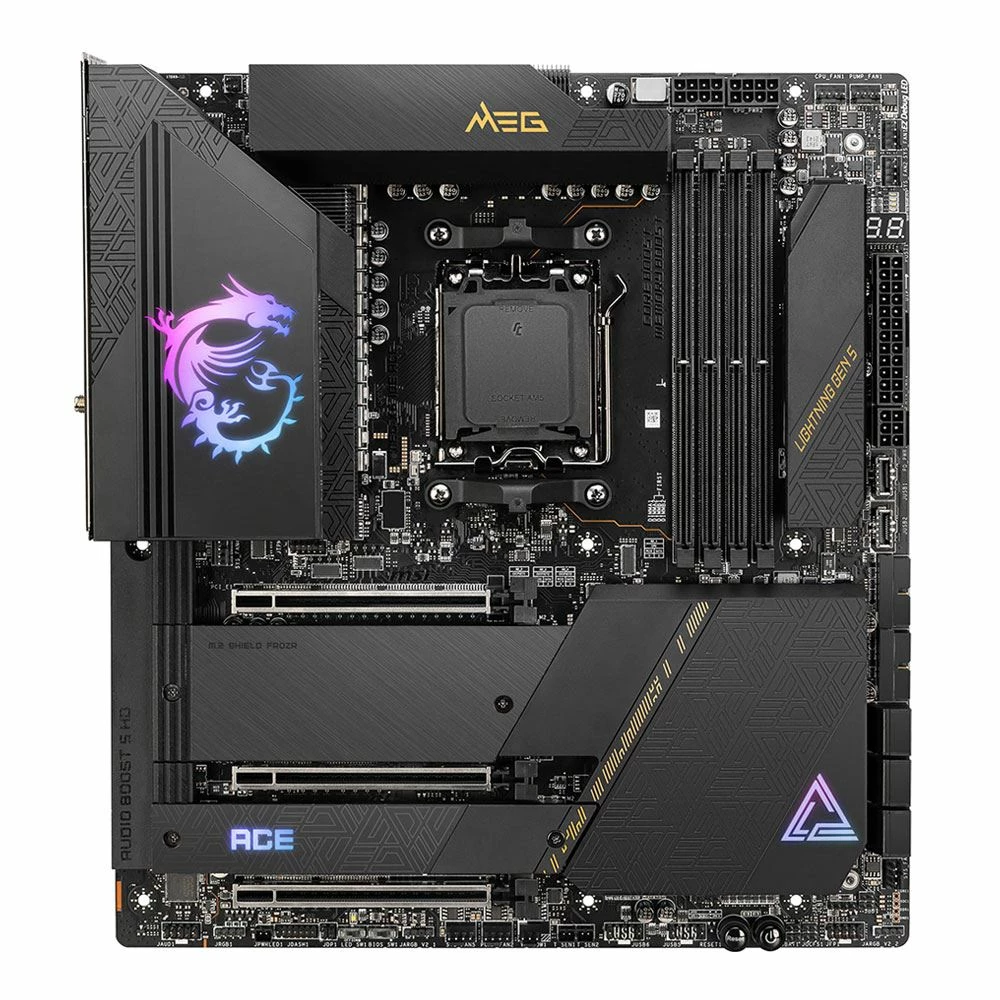

The MEG X670E ACE furnished premium aesthetics with its dark black finish and gold embellishes. Developed to unlock the full gaming potential of the AMD X670 chipset by combining elite hardware system support and premium durability, the MEG X670E ACE is an outstanding E-ATX platform for extreme settings in terms of overclocking memory, processor, and graphic card at the highest level.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
The MEG X670E ACE furnished premium aesthetics with its dark black finish and gold embellishes. Developed to unlock the full gaming potential of the AMD X670 chipset by combining elite hardware system support and premium durability, the MEG X670E ACE is an outstanding E-ATX platform for extreme settings in terms of overclocking memory, processor, and graphic card at the highest level.
| SKU | 433078 |
|---|---|
| Max Memory Supported | 128GB |
| UPC | 824142299180 |
| Packaging | Retail |
| North Bridge | AMD X670E |
| Socket Type | AM5 |
| AMD CPU Support | Ryzen |
| Supported Memory Technologies | ECC Memory Supported Non-ECC Memory Supported Extreme Memory Profile (XMP) Extended Profiles for Overclocking (EXPO) |
| Maximum Memory Supported Per Slot | 32GB |
| Memory Type | DDR5-4800 |
| Audio Channels | 7.1 |
| Mfr Part# | MEGX670EACE |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| Multi-GPU Support | 2-Way CrossFireX |
| M.2 Port Type | 2260 2280 22110 |
| SATA Express | 4 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 6 |
| RAID Support | RAID 0 RAID 1 RAID 10 |
| Audio Chipset | Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA |
| Memory Slots | 4 x 288pin DIMM |
| WiFi Support | V-M.2 Slot |
| Digital Audio | 1 x Optical |
| Headers | 1 x CPU Fan Header 5 x System Fan Header 2 x Water Pump Header |
| Wireless LAN Chipset | AMD Wi-Fi 6E |
| Wireless Technology | 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.2 |
| PCI Express 5.0 x16 | 3 |
| LAN Ports | 1 x 100/1000/2500/5000/10000Mbps |

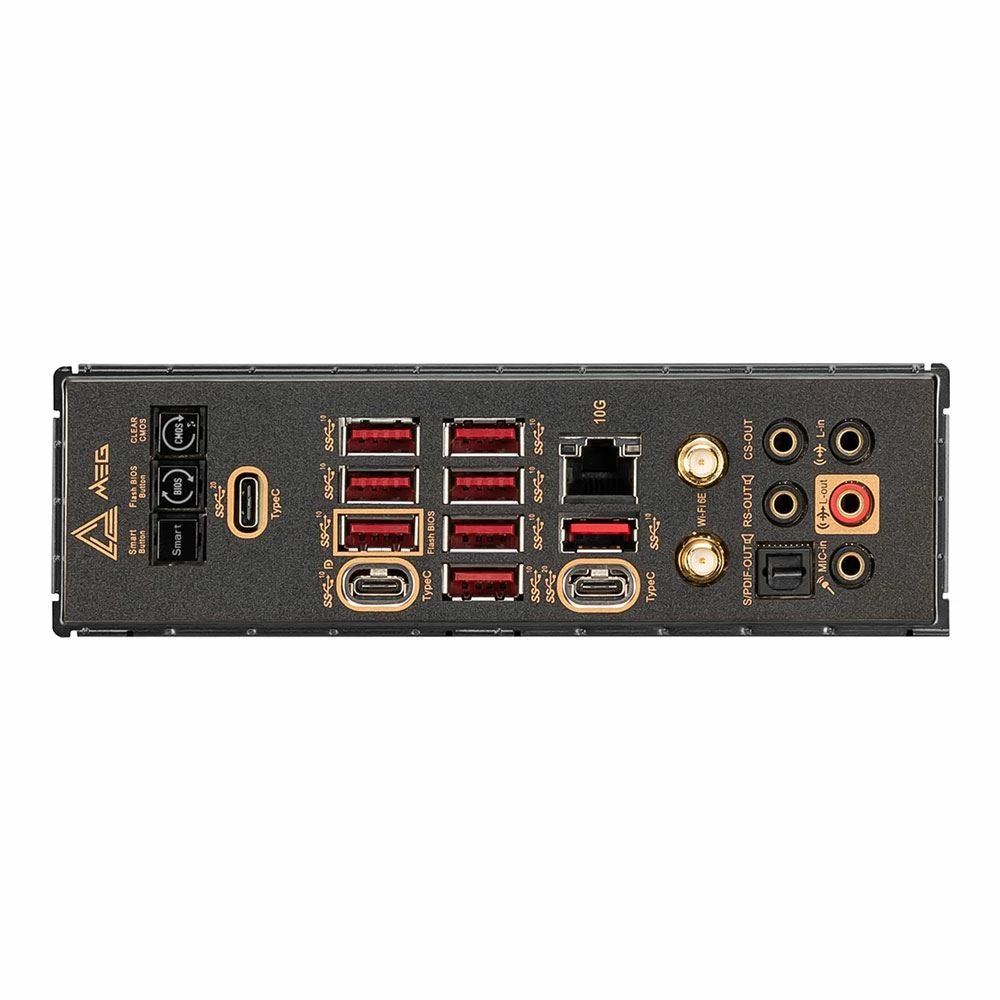

| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Line-Out |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 3.1 | 8 x USB 3.2 (Gen 2 Type-A) 1 x USB 3.2 (Gen 2 Type-C) 2 x USB 3.2 (Gen 2×2 Type-C) |
| Video Connectors | 1 x USB 3.2 Gen 2 (DisplayPort 1.4) |
| LAN Chipset | Marvell AQC113-B1-C 10Gbps LAN |
| LAN Speed | 100/1000/2500/5000/10000Mbps |
| USB | 4 x USB 2.0 Headers (4 Ports) 1 x USB 3.2 Gen 2 Type-C Header (1 Port) 4 x USB 3.2 Gen 1 Type-A Headers (4 Ports) 1 x USB 3.2 Gen 2×2 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 6-pin +12 V Connector 2 x 8-pin +12 V Connector |
| ATX Connector | 24-pin |
| Depth | 12.00 in. (305.00 mm) |
| Width | 10.91 in. (277.00 mm) |
| Form Factor | eATX |
| Parts | 3 Years |
| Labor | 3 Years |

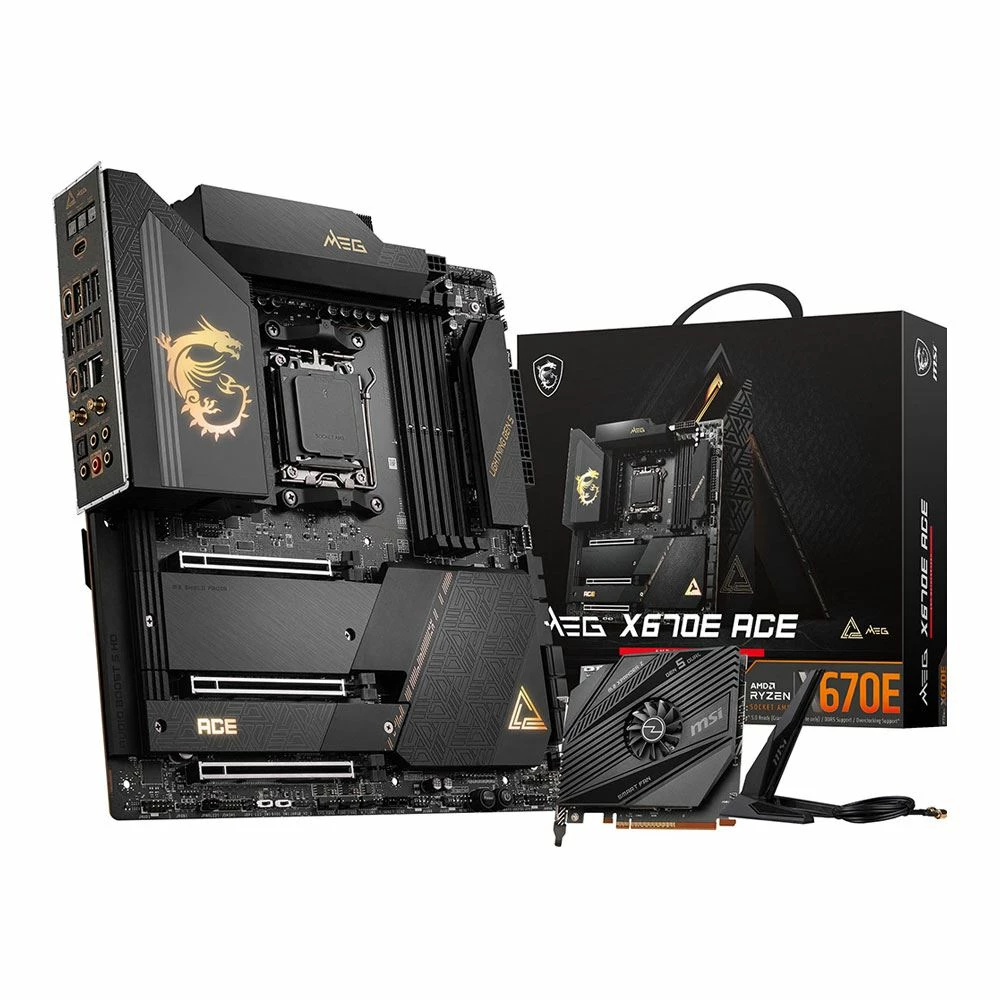

| What's in the Box | Motherboard, M.2 XPANDER-Z GEN5 Dual, WiFi Antenna, USB Drive, M.2 Screws and Clips, 4x SATA Cables, 2x Thermistor Cables, RGB Y Extension Cable, Rainbow RGB Extension Cable, EZ Front Panel Cable, Cable Stickers, Install Guide |
