Original price was: $62.99.$47.87Current price is: $47.87.
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
| SKU | 166173 |
|---|---|
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2667 DDR4-2933 DDR4-3200 |
| Packaging | Retail |
| Manageability | SM BIOS 2.3 ACPI 5.1 |
| BIOS | 128Mb AMI UEFI Bios |
| North Bridge | AMD A520 |
| Socket Type | AM4 |
| AMD CPU Support | Ryzen |
| Supported Memory Technologies | ECC Memory Supported Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| RAID Support | RAID 0 RAID 1 RAID 10 |
| Maximum Memory Supported Per Slot | 32GB |
| Memory Speeds Supported | 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 |
| Memory Slots | 2 x 288pin DIMM |
| Max Memory Supported | 64GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2242 2260 2280 |
| SATA Express | 1 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 4 |
| UPC | 4710483932267 |
| Mfr Part# | MB-A520M-HDV |

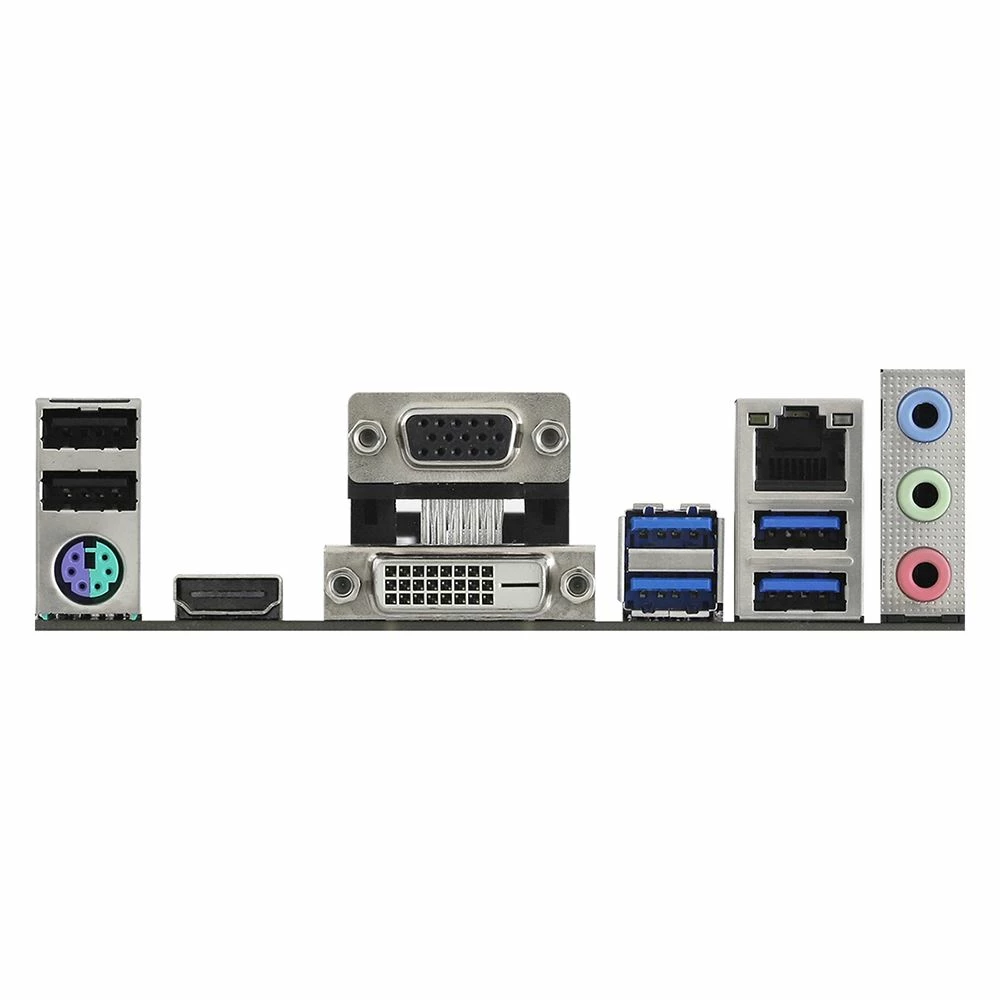

| Video Connectors | 1 x VGA 15-pin 1 x DVI-D 1 x HDMI 1.4 |
| Audio Channels | 7.1 |
| LAN Speed | 10/100/1000Mbps |
| PCI Express 3.0 x16 | 1 |
| PCI Express x1 | 1 |
| LAN Ports | 1 x 10/100/1000 RJ-45 LAN |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Line-Out |
| USB 2.0 | 2 x USB 2.0 (Type-A) |
| USB 3.1 | 4 x USB 3.2 (Gen 1 Type-A) |
| Headers | 1 x CPU Fan Header 2 x System Fan Header |
| USB | 2 x USB 2.0 Headers (4 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) |
| Audio Chipset | Realtek ALC887 |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 4-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 9.00 in. (229.00 mm) |
| Width | 7.90 in. (201.00 mm) |
| Form Factor | microATX |
| Parts | 3 Years |
| Labor | 3 Years |
| LAN Chipset | Realtek RTL8111H |

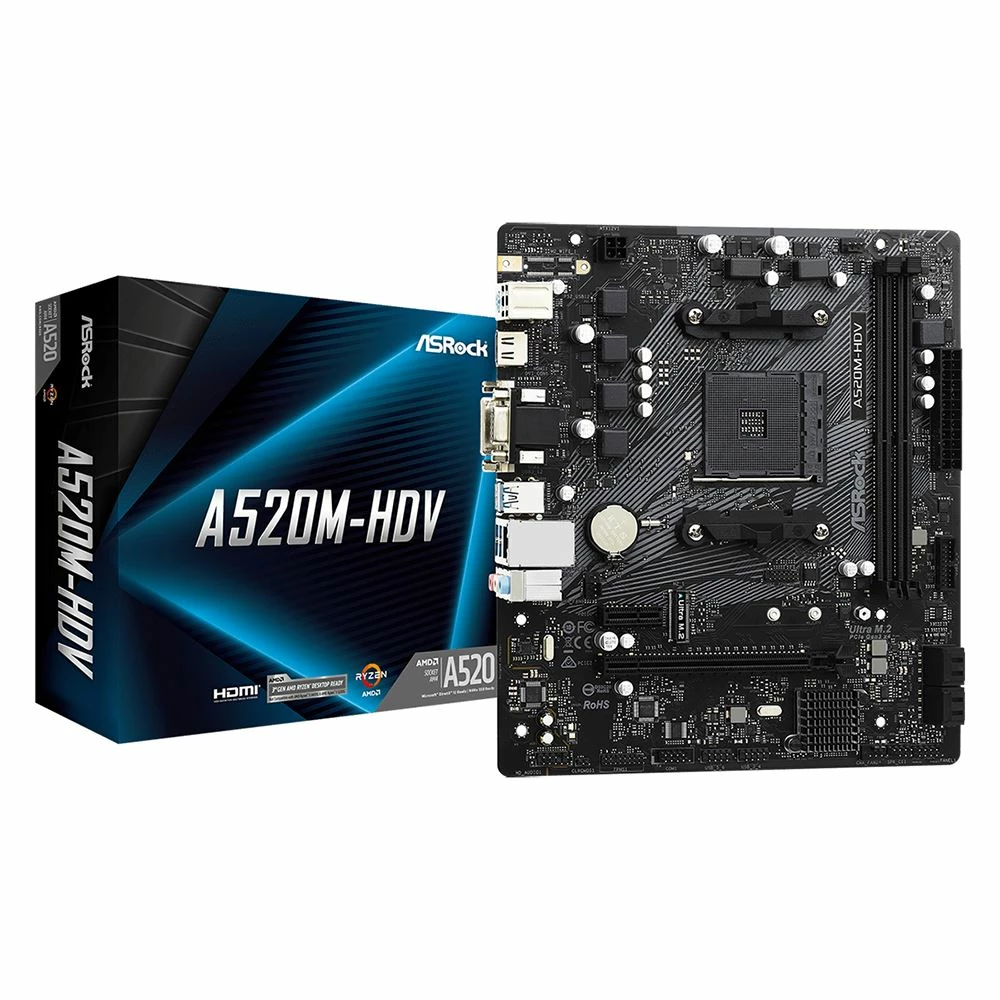

| What's in the Box | Motherboard, Install Guide, Support CD, I/O Shield, 2x SATA Data Cables, M.2 Screw |
