$81.39
Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors. 8 Power Phase design. Supports DDR4 4733+ (OC). 1 x PCIe 4.0 x16, 3 x PCIe 3.0 x16. Graphics Output Options: HDMI. 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec). 6 x SATA3, 1 x Hyper M.2(PCIe Gen4 x4). 1 x M.2(PCIe Gen3 x2 & SATA3). Rear USB 3.2 Gen2 Type A+C (10Gb/s). 8 x USB 3.2 Gen1 (4 Front, 4 Rear). 6 x USB 2.0 (4 Front, 2 Rear). Realtek Gigabit LAN. Intel 802.11ac WiFi + BT 5.1. CEC High Expandability Category.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors. 8 Power Phase design. Supports DDR4 4733+ (OC). 1 x PCIe 4.0 x16, 3 x PCIe 3.0 x16. Graphics Output Options: HDMI. 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec). 6 x SATA3, 1 x Hyper M.2(PCIe Gen4 x4). 1 x M.2(PCIe Gen3 x2 & SATA3). Rear USB 3.2 Gen2 Type A+C (10Gb/s). 8 x USB 3.2 Gen1 (4 Front, 4 Rear). 6 x USB 2.0 (4 Front, 2 Rear). Realtek Gigabit LAN. Intel 802.11ac WiFi + BT 5.1. CEC High Expandability Category.
| SKU | 426247 |
|---|---|
| Memory Speeds Supported | 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 |
| UPC | 4710483934339 |
| Packaging | Retail |
| Manageability | SM BIOS 2.3 ACPI 5.1 |
| BIOS | 128Mb AMI UEFI Bios |
| North Bridge | AMD B550 |
| Socket Type | AM4 |
| AMD CPU Support | Ryzen |
| Supported Memory Technologies | Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Maximum Memory Supported Per Slot | 32GB |
| Audio Chipset | Realtek ALC897 |
| Mfr Part# | MB-B550M-C/B |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| Multi-GPU Support | 2-Way CrossFireX |
| M.2 Port Type | 2280 |
| SATA Express | 2 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 6 |
| RAID Support | RAID 0 RAID 1 RAID 10 |
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2667 DDR4-2933 DDR4-3200 |
| Audio Channels | 7.1 |
| LAN Ports | 1 x 10/100/1000 RJ-45 LAN |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Line-Out |
| LAN Speed | 10/100/1000Mbps |
| Wireless Technology | 802.11b 802.11g 802.11a Bluetooth v4.2 WiFi 4 (802.11n) WiFi 5 (802.11ac) |
| PCI Express 4.0 x16 | 2 |
| PCI Express 3.0 x16 | 2 |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 2.0 | 2 x USB 2.0 (Type-A) |
| USB 3.1 | 4 x USB 3.2 (Gen 1 Type-A) 1 x USB 3.2 (Gen 2 Type-C) 1 x USB 3.2 (Gen 2 Type-A) |
| Video Connectors | 1 x HDMI 2.1 |
| Legacy Ports | 1 x PS/2 |
| WiFi Support | Onboard WiFi |
| LAN Chipset | Realtek RTL8111H |
| Headers | 1 x CPU Fan Header 3 x System Fan Header 2 x RGB Header |
| USB | 2 x USB 2.0 Headers (4 Ports) 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 9.61 in. (244.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | microATX |
| Parts | 3 Years |
| Labor | 3 Years |

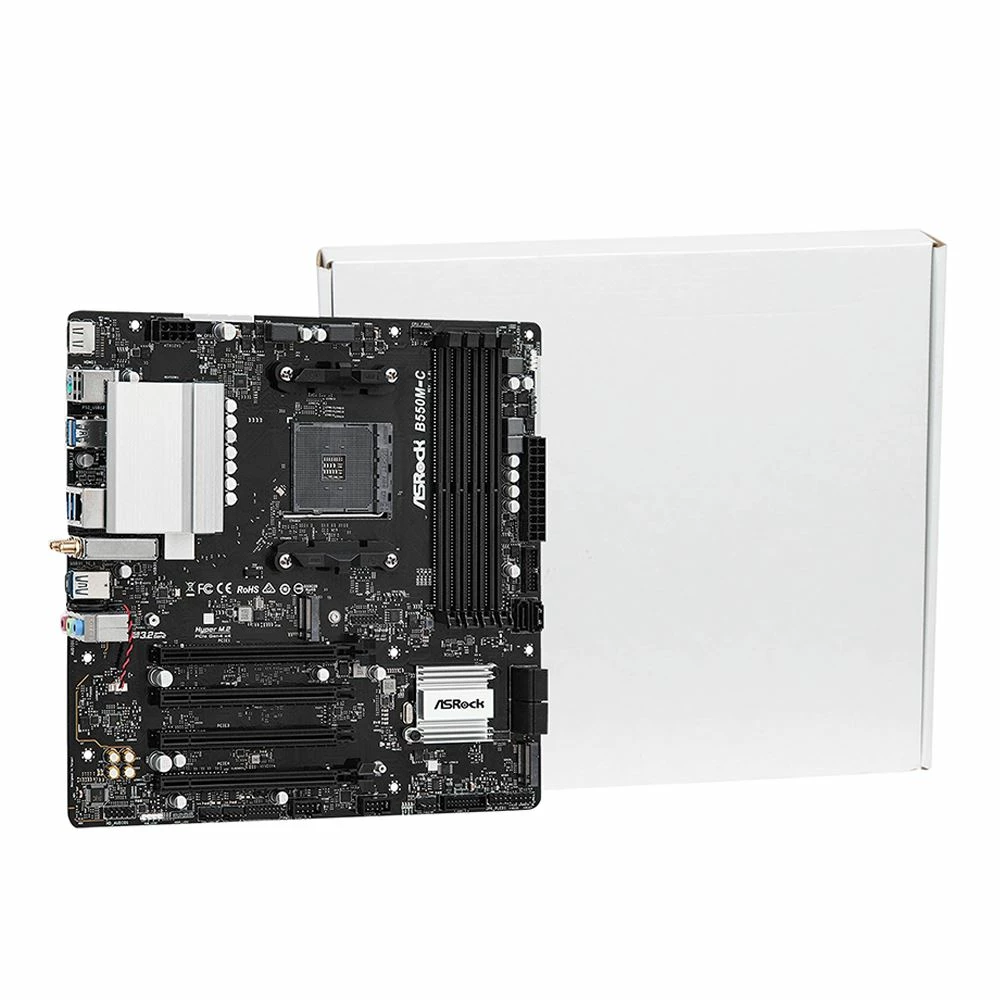

| What's in the Box | Motherboard, I/O Shield, SATA Cables, WiFi Antennas, M.2 Screws |
