Original price was: $149.99.$94.99Current price is: $94.99.

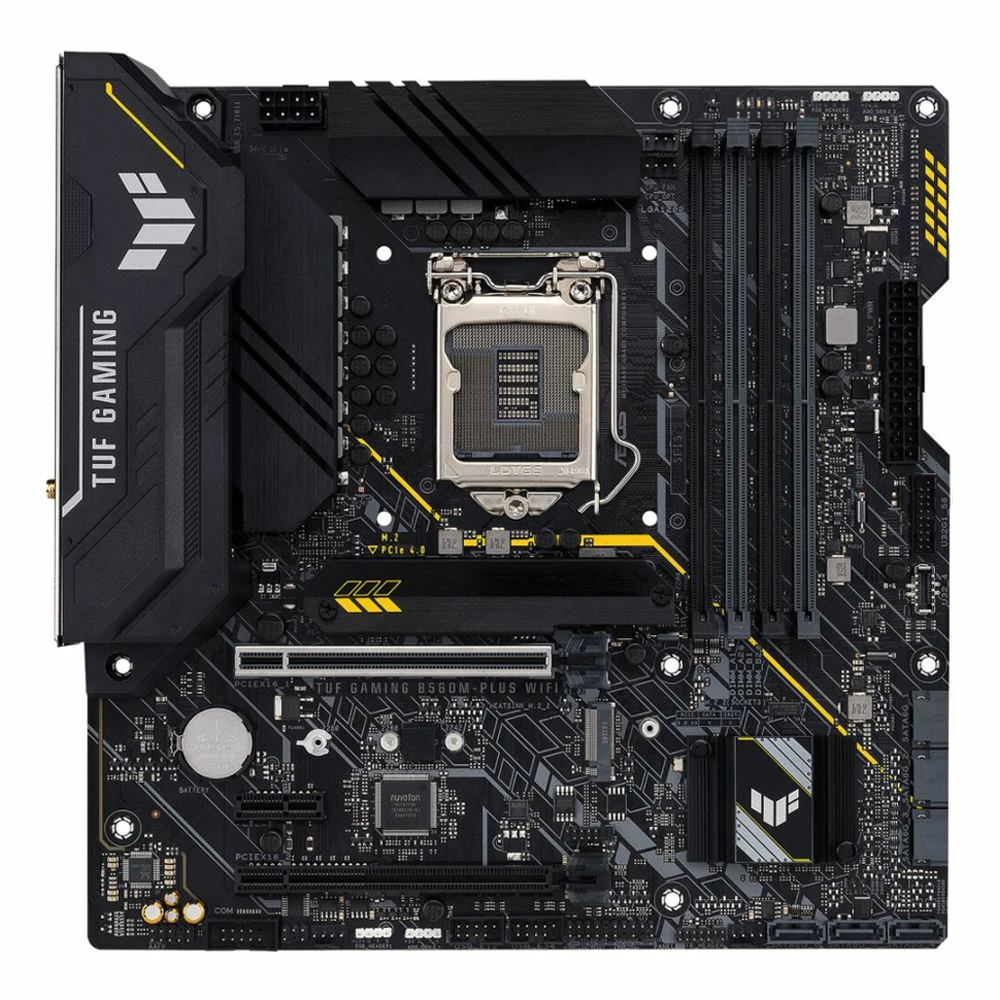

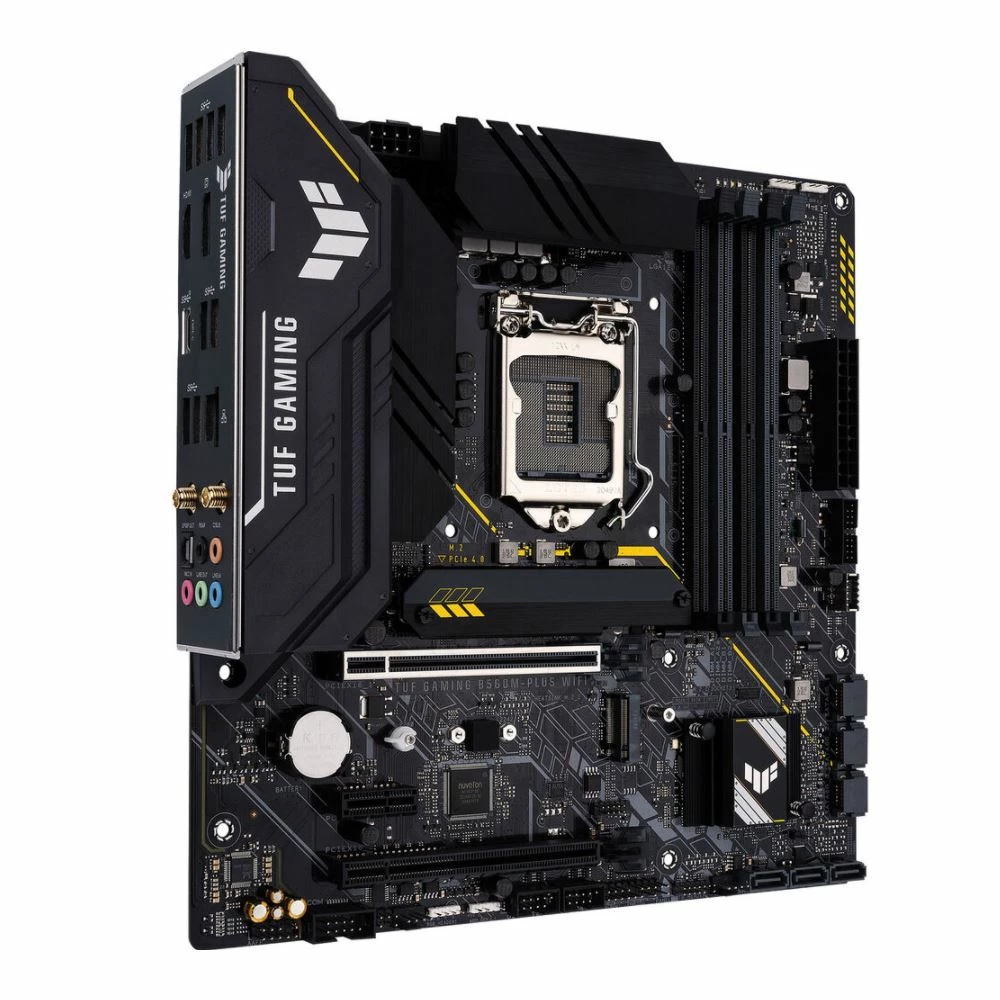

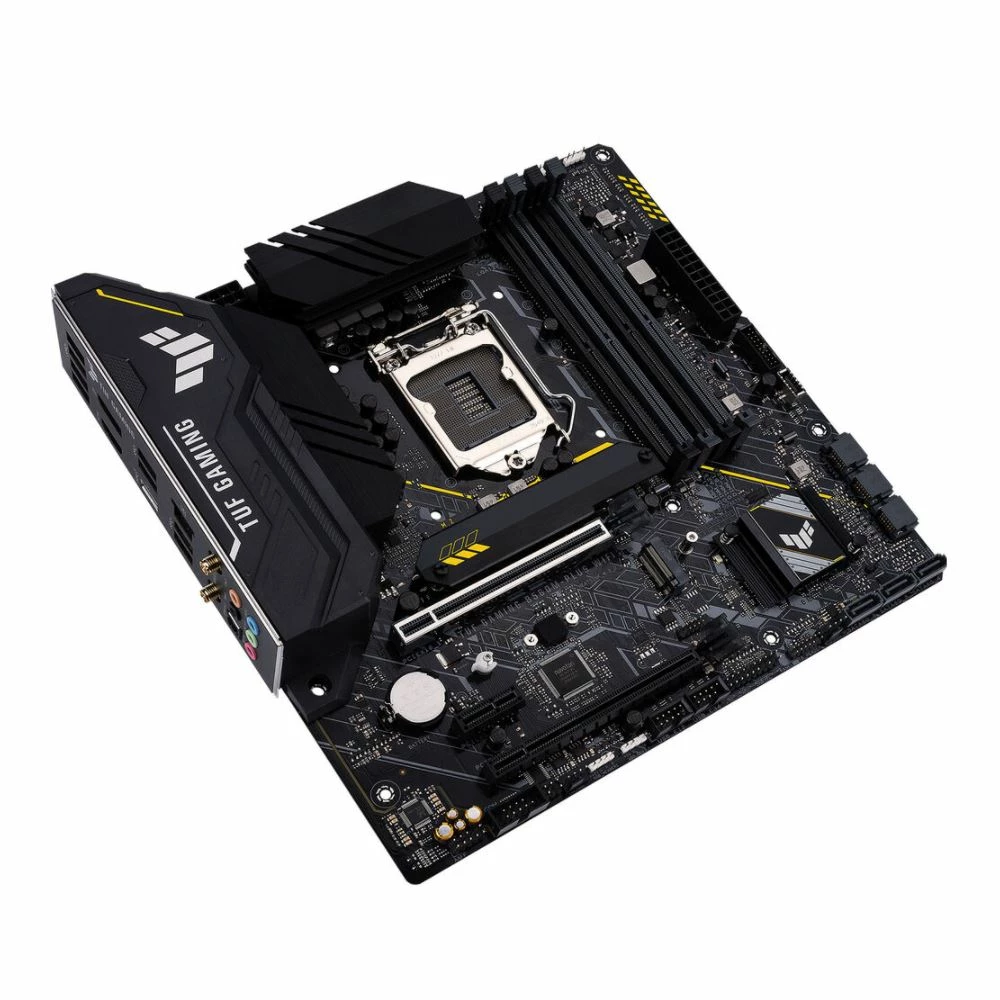

ASUS TUF GAMING B560M-PLUS WIFI takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid, stable performance for marathon gaming. Aesthetically, TUF GAMING B560M-PLUS WIFI sports the new TUF Gaming logo, and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
ASUS TUF GAMING B560M-PLUS WIFI takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid, stable performance for marathon gaming. Aesthetically, TUF GAMING B560M-PLUS WIFI sports the new TUF Gaming logo, and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
| SKU | 232165 |
|---|---|
| WiFi Support | Onboard WiFi |
| Packaging | Retail |
| Manageability | WOL |
| BIOS | 256Mb AMI UEFI Bios |
| North Bridge | Intel B560 |
| Socket Type | LGA 1200 |
| Intel CPU Support | Core i7 Core i5 Core i3 Celeron Pentium Core i9 |
| Supported Memory Technologies | Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2666 DDR4-2933 DDR4-3200 DDR4-2800 |
| Memory Speeds Supported | 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz |
| Maximum Memory Supported Per Slot | 32GB |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2242 2260 2280 |
| SATA Express | 2 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 6 |
| Audio Channels | 7.1 |
| UPC | 195553125284 |
| Mfr Part# | TUFB560M-PLUSWF |

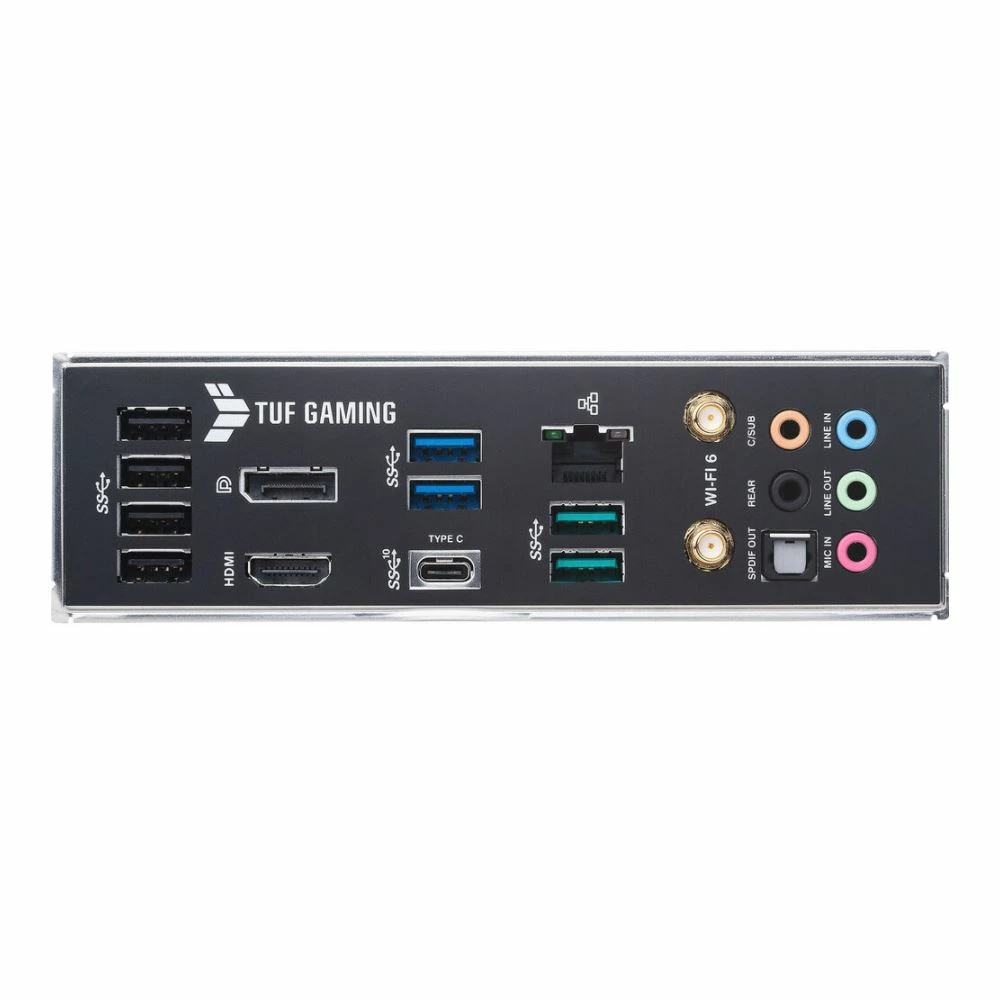

| USB 3.1 | 2 x USB 3.2 (Gen 1 Type-A) 2 x USB 3.2 (Gen 2 Type-A) 1 x USB 3.2 (Gen 1 Type-A) |
| Video Connectors | 1 x HDMI 2.0 1 x DisplayPort 1.4 |
| Wireless Technology | 802.11b 802.11g 802.11a Bluetooth v5.0 WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) |
| PCI Express 4.0 x16 | 1 |
| PCI Express 3.0 x16 | 1 |
| PCI Express x1 | 1 |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Line-Out |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 2.0 | 4 x USB 2.0 (Type-A) |
| LAN Speed | 10/100/1000/2500Mbps |
| LAN Chipset | Realtek 2.5Gb |
| Digital Audio | 1 x Optical |
| Headers | 2 x System Fan Header 2 x CPU Fan Header |
| USB | 2 x USB 2.0 Headers (4 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) 1 x USB 3.2 Gen 1 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Form Factor | microATX |
| Parts | 3 Years |
| Labor | 3 Years |
| Wireless LAN Chipset | Intel 2×2 Wi-Fi 6 |

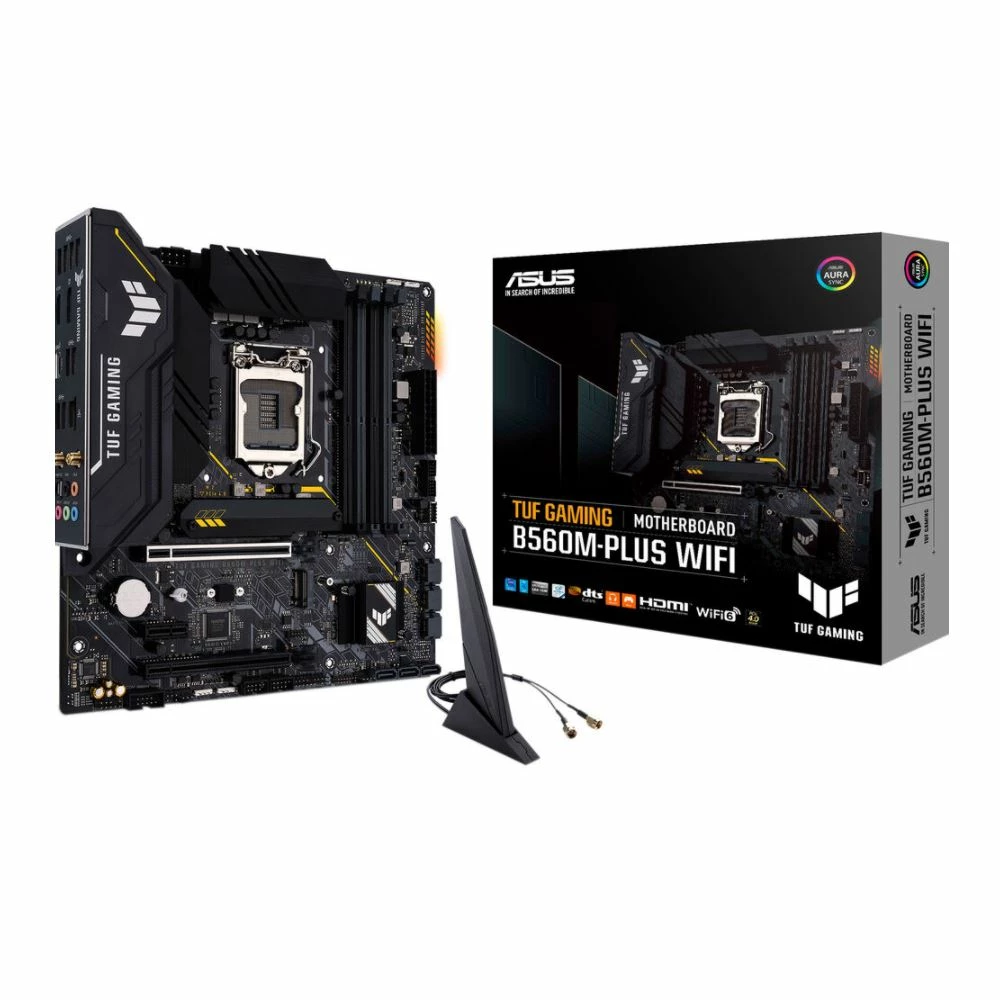

| What's in the Box | Motherboard, SATA Cables, Antennas, M.2 Rubber Package, M.2 Screws, TUF Gaming Sticker, Driver Disc, Manual |
