Sale!
$96.99

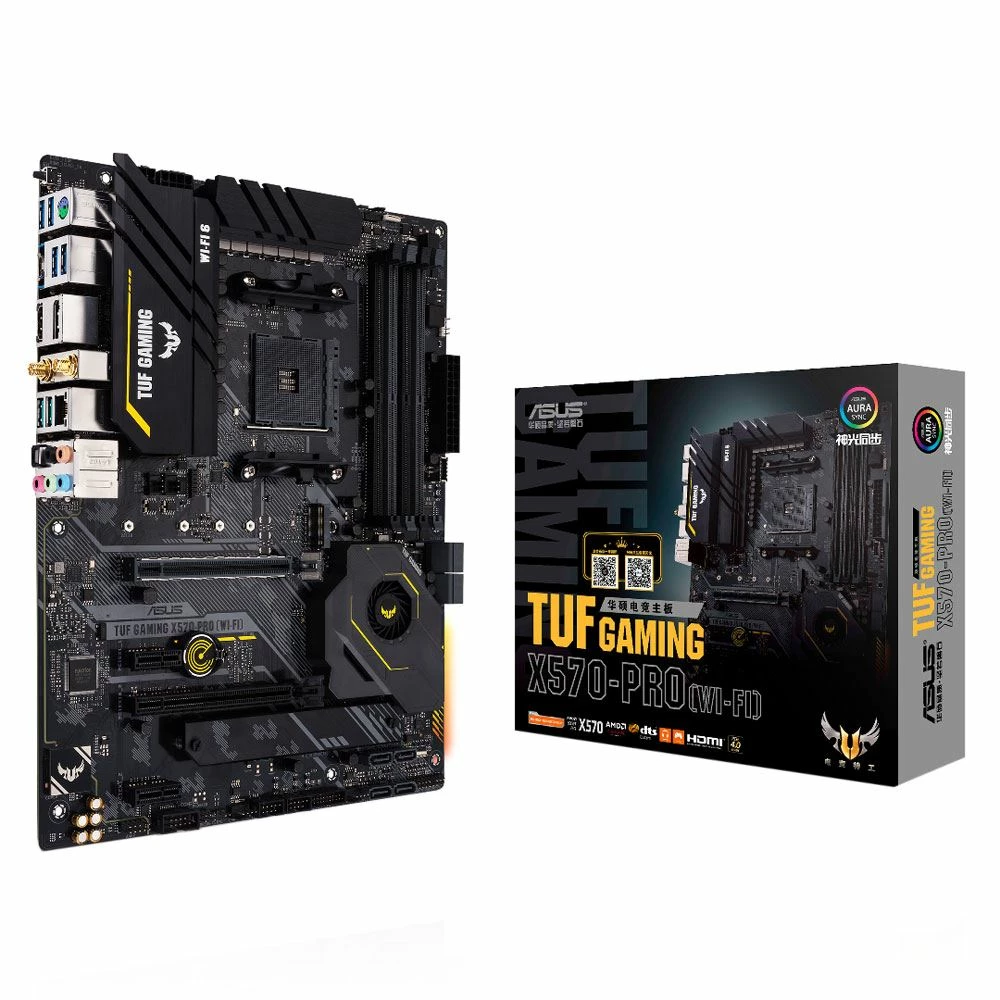

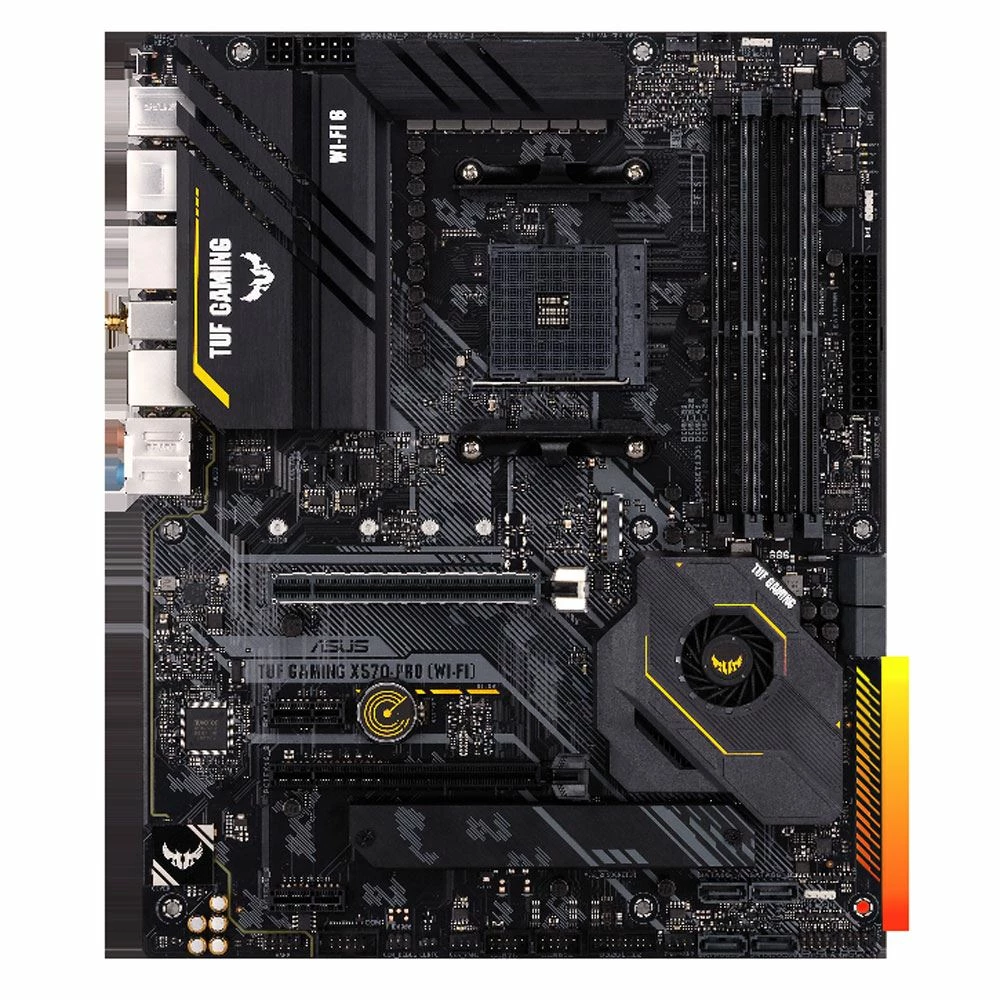

TUF Gaming X570-Pro (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
TUF Gaming X570-Pro (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability.
| SKU | 186510 |
|---|---|
| WiFi Support | Onboard WiFi |
| Packaging | Retail |
| Manageability | ACPI 6.2 SM BIOS 3.2 |
| BIOS | 256Mb AMI UEFI Bios |
| North Bridge | AMD X570 |
| Socket Type | AM4 |
| AMD CPU Support | Ryzen |
| Maximum Memory Supported Per Slot | 32GB |
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2666 DDR4-2933 DDR4-3200 DDR4-2800 DDR4-3000 |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Speeds Supported | 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| Multi-GPU Support | 2-Way CrossFireX |
| M.2 Port Type | 2242 2260 2280 22110 |
| SATA Express | 2 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 8 |
| RAID Support | RAID 0 RAID 1 RAID 10 |
| Audio Chipset | Realtek ALC S1200A |
| Audio Channels | 7.1 |
| UPC | 192876900338 |
| Mfr Part# | TUF X570-PRO/WF |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Line-Out |
| Digital Audio | 1 x Optical |
| Wireless Technology | 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) |
| PCI Express 4.0 x16 | 1 |
| PCI Express 3.0 x16 | 1 |
| PCI Express x1 | 2 |
| USB 3.1 | 4 x USB 3.2 (Gen 1 Type-A) 1 x USB 3.2 (Gen 2 Type-A) 2 x USB 3.2 (Gen 2 Type-A) |
| Video Connectors | 1 x DisplayPort 1.2 1 x HDMI 1.4 |
| Specialty Ports | 2 x WiFi Antenna Ports |
| Legacy Ports | 1 x PS/2 |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| LAN Speed | 10/100/1000/2500Mbps |
| LAN Chipset | Intel I225-V 2.5Gb |
| Headers | 1 x CPU Fan Header 3 x System Fan Header |
| USB | 2 x USB 2.0 Headers (2 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector 1 x 4-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | ATX |
| Parts | 3 Years |
| Labor | 3 Years |
| Wireless LAN Chipset | Intel Wi-Fi 6 AX200 |
| What's in the Box | Motherboard, 2x SATA Cables, I/O Shield, M.2 Rubber Package, M.2 SSD Screws, TUF Gaming Sticker, Antenna, Driver Disc, Manual |
