Sale!
$91.99
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
| SKU | 513697 |
|---|---|
| Memory Type | DDR5-4800 DDR5-5200 DDR5-4400 |
| UPC | 889523033623 |
| Packaging | Retail |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | PnP 1.0a WfM 2.0 SM BIOS 2.7 ACPI 5.0 DMI 2.7 |
| North Bridge | AMD B650 |
| Socket Type | AM5 |
| AMD CPU Support | Ryzen |
| Supported Memory Technologies | ECC Memory Supported Non-ECC Memory Supported Extreme Memory Profile (XMP) Extended Profiles for Overclocking (EXPO) |
| Audio Channels | 7.1 |
| Mfr Part# | B650AORUSELITEA |
| Memory Speeds Supported | 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2280 25110 |
| SATA Express | 3 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 4 |
| RAID Support | RAID 0 RAID 1 RAID 10 |
| Maximum Memory Supported Per Slot | 32GB |
| WiFi Support | Onboard WiFi |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |

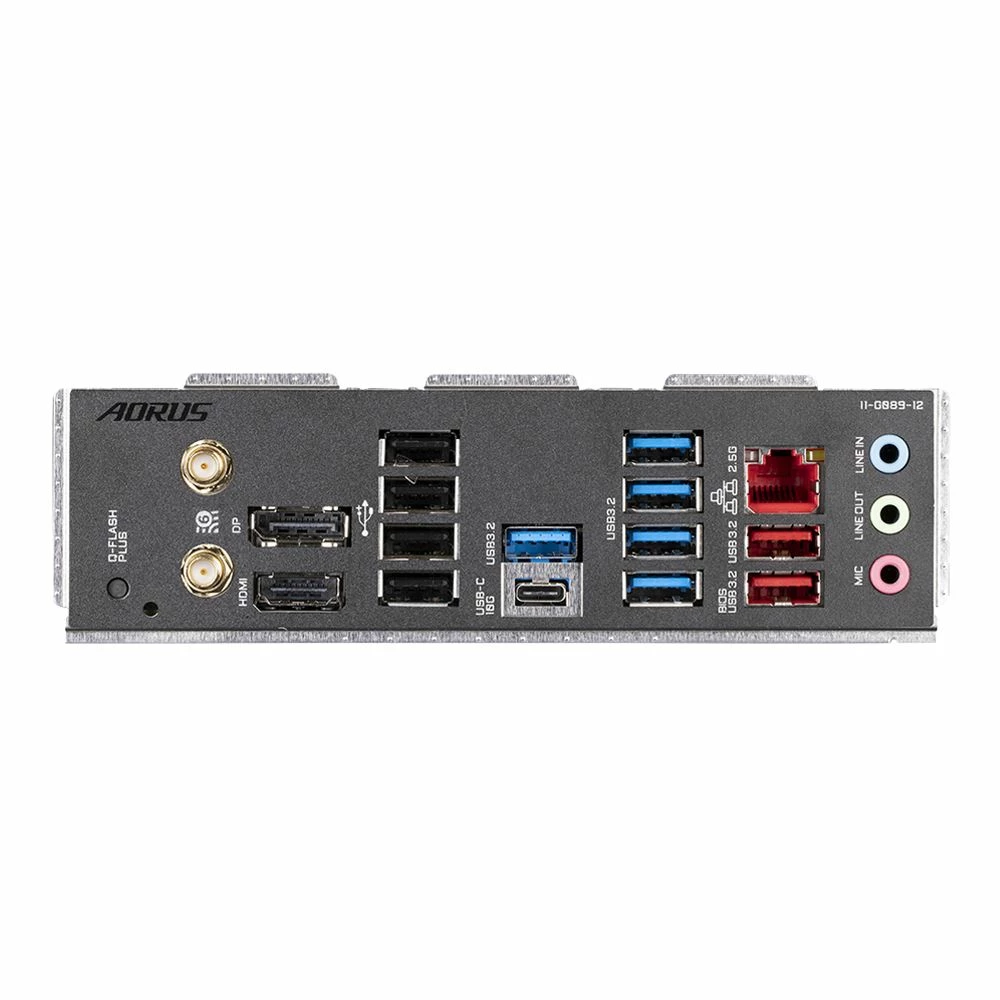

| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Line-Out |
| Wireless LAN Chipset | AMD Wi-Fi 6E RZ616 (MT7922A22M) |
| Wireless Technology | 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.2 |
| PCI Express 4.0 x16 | 1 |
| PCI Express 3.0 x16 | 2 |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 2.0 | 4 x USB 2.0 (Type-A) |
| USB 3.1 | 1 x USB 3.2 (Gen 2 Type-C) 2 x USB 3.2 (Gen 2 Type-A) 5 x USB 3.2 (Gen 1 Type-A) |
| Video Connectors | 1 x HDMI 2.0 1 x DisplayPort 1.4 |
| LAN Chipset | Realtek 2.5Gb Ethernet |
| LAN Speed | 10/100/1000/2500Mbps |
| Headers | 1 x CPU Fan Header 1 x Water Pump Header 3 x System Fan Header |
| USB | 2 x USB 2.0 Headers (4 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) 1 x USB 3.2 Gen 2×2 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector 1 x 4-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 9.60 in. (243.84 mm) |
| Form Factor | ATX |
| Parts | 3 Years |
| Labor | 3 Years |

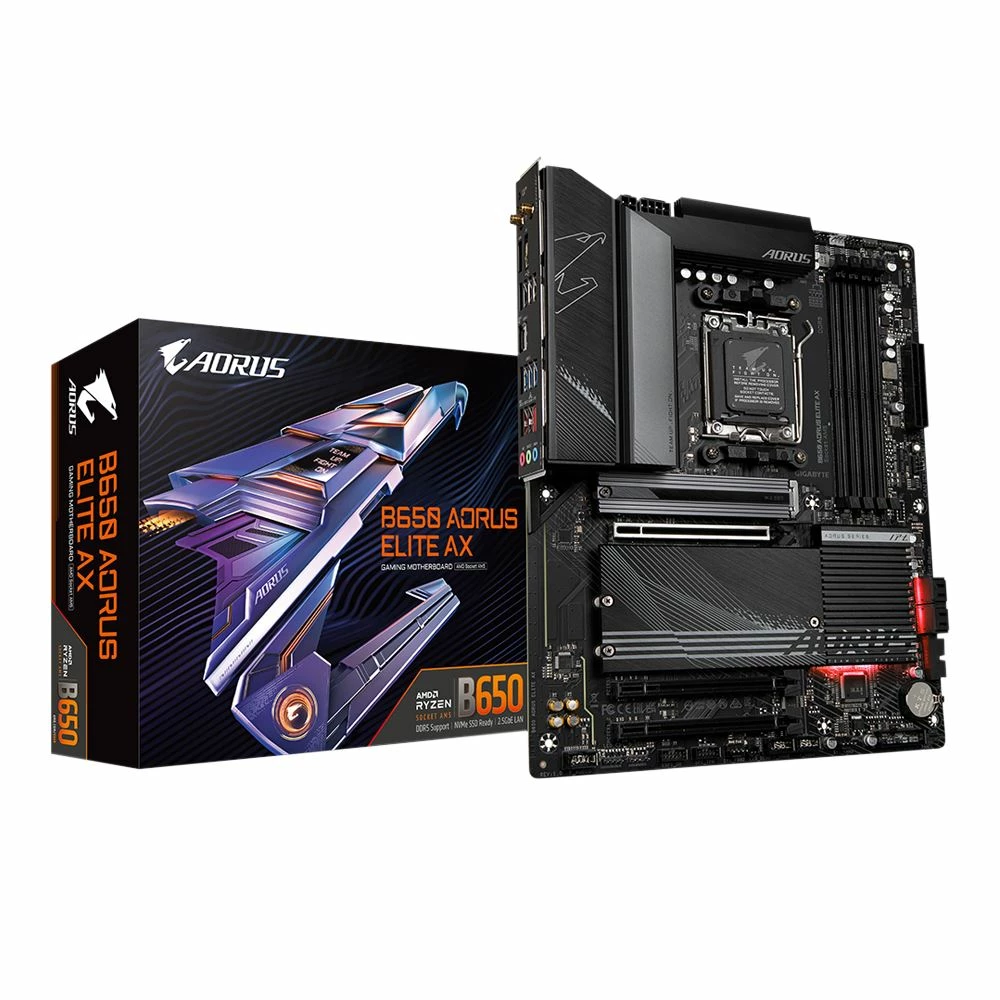

| What's in the Box | Motherboard, Manual, Antenna, 2x SATA Cables, M.2 Screws, G Connector |
