Sale!
$91.99

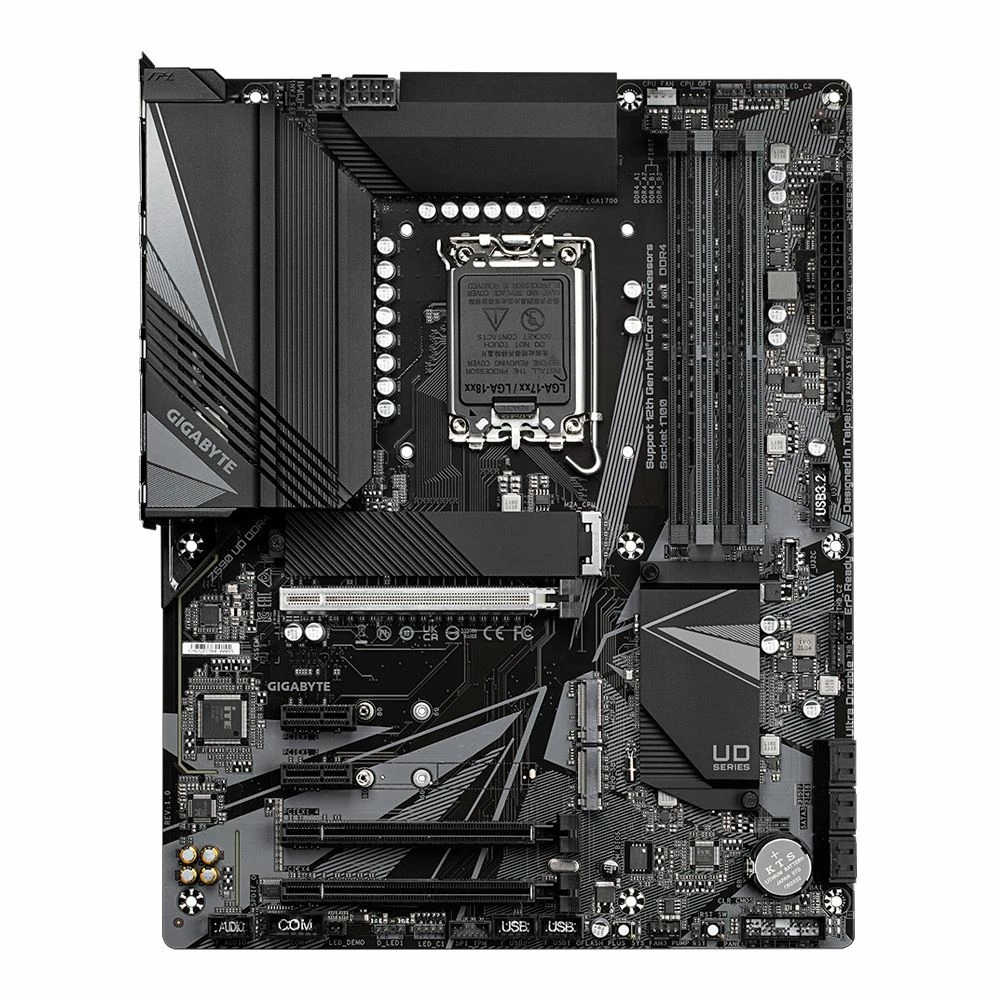

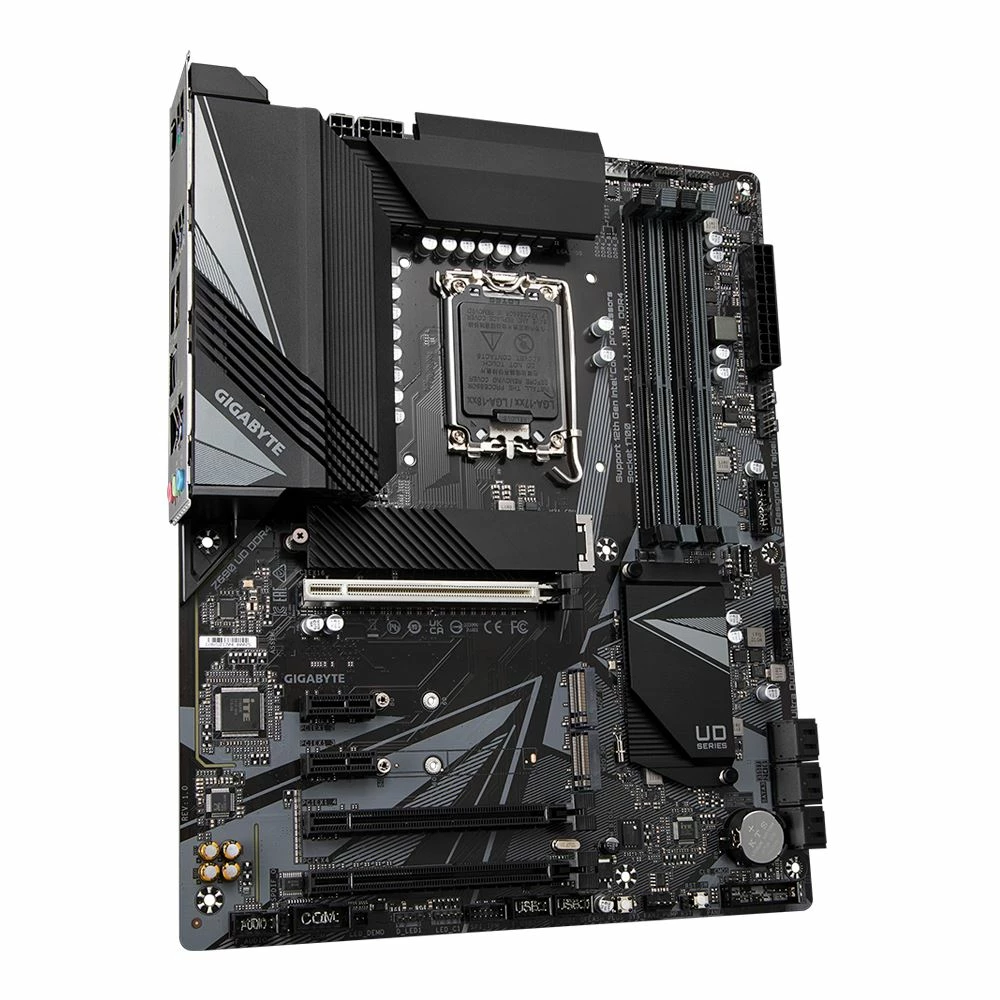

Supports 12th Gen Intel Core Series Processors. Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs. DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing. Direct 16+1+2 Digital VRM Design with 60A Power Stage and Tantalum Polymer Capacitor?. Ultra Performance VRM Heatsinks. Fast 2.5GbE LAN with Bandwidth Management. 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guards. SuperSpeed USB 3.2 Gen 2×2 TYPE-C delivers up to 20Gb/s transfer speeds. RGB FUSION 2.0, supports Addressable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
Supports 12th Gen Intel Core Series Processors. Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs. DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing. Direct 16+1+2 Digital VRM Design with 60A Power Stage and Tantalum Polymer Capacitor?. Ultra Performance VRM Heatsinks. Fast 2.5GbE LAN with Bandwidth Management. 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guards. SuperSpeed USB 3.2 Gen 2×2 TYPE-C delivers up to 20Gb/s transfer speeds. RGB FUSION 2.0, supports Addressable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.
| SKU | 339705 |
|---|---|
| Maximum Memory Supported Per Slot | 32GB |
| UPC | 889523030103 |
| Packaging | Retail |
| Microsoft Certifications | Windows 11 Ready |
| Manageability | PnP 1.0a WfM 2.0 SM BIOS 2.7 ACPI 5.0 DMI 2.7 |
| BIOS | 256Mb AMI UEFI Bios |
| North Bridge | Intel Z690 |
| Socket Type | LGA 1700 |
| Intel CPU Support | Core i7 Core i5 Core i3 Celeron Pentium Core i9 |
| SATA 6Gb/s | 6 |
| Mfr Part# | Z690UDDDR4 |
| Memory Type | DDR4-2133 DDR4-2400 DDR4-2666 DDR4-2933 DDR4-3200 DDR4-2800 DDR4-3000 |
| Memory Speeds Supported | 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| Multi-GPU Support | 2-Way CrossFireX |
| M.2 Port Type | 2260 2280 22110 |
| SATA Express | 3 x M.2 Socket 3 M Key |
| Supported Memory Technologies | ECC Memory Supported Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| RAID Support | RAID 0 RAID 1 RAID 5 RAID 10 |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Line-Out |
| LAN Speed | 10/100/1000/2500Mbps |
| PCI Express 5.0 x16 | 1 |
| PCI Express 3.0 x16 | 2 |
| PCI Express x1 | 2 |

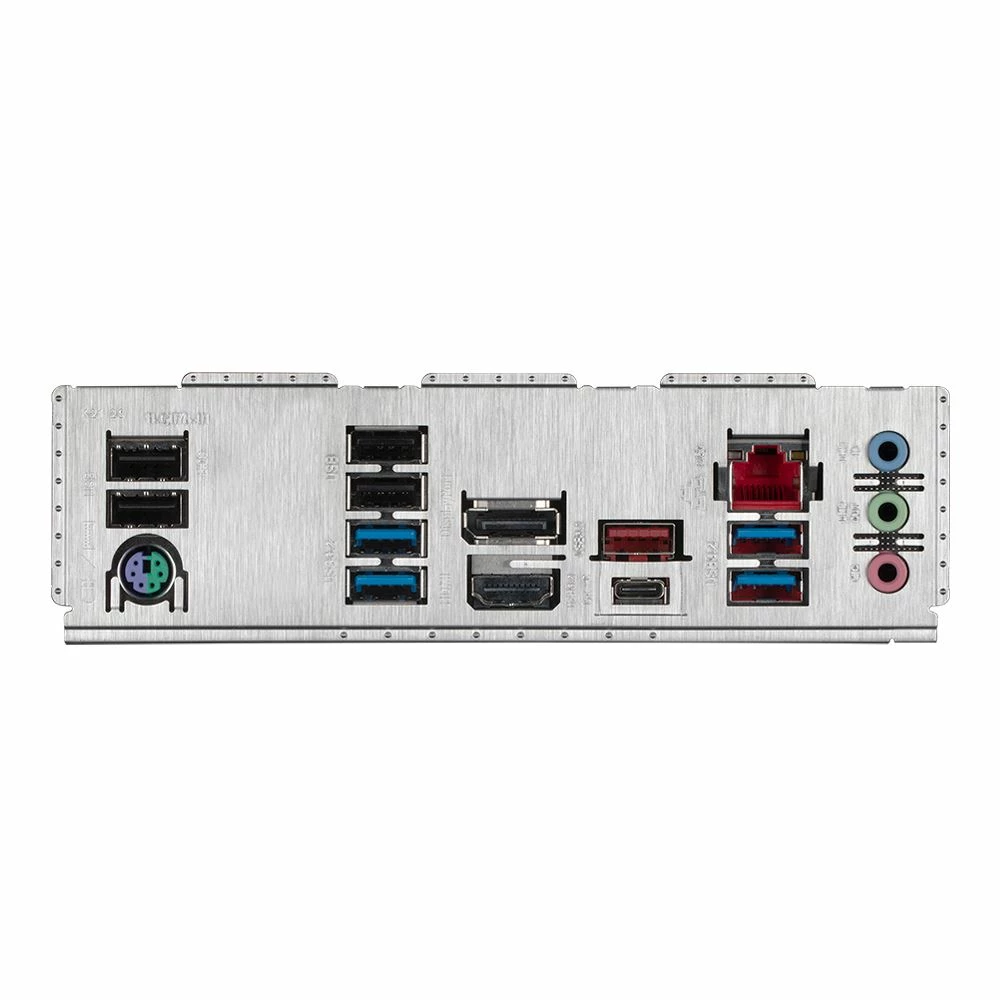

| USB 2.0 | 4 x USB 2.0 (Type-A) |
| USB 3.1 | 4 x USB 3.2 (Gen 1 Type-A) 1 x USB 3.2 (Gen 2×2 Type-C) 1 x USB 3.2 (Gen 2 Type-A) |
| Video Connectors | 1 x DisplayPort 1.2 1 x HDMI 2.0 |
| Legacy Ports | 1 x PS/2 |
| Audio Channels | 7.1 |
| LAN Chipset | Realtek 2.5GbE |
| Headers | 3 x System Fan Header 2 x CPU Fan Header |
| USB | 2 x USB 2.0 Headers (4 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) 1 x USB 3.2 Gen 1 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector 1 x 4-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | ATX |
| Parts | 3 Years |
| Labor | 3 Years |

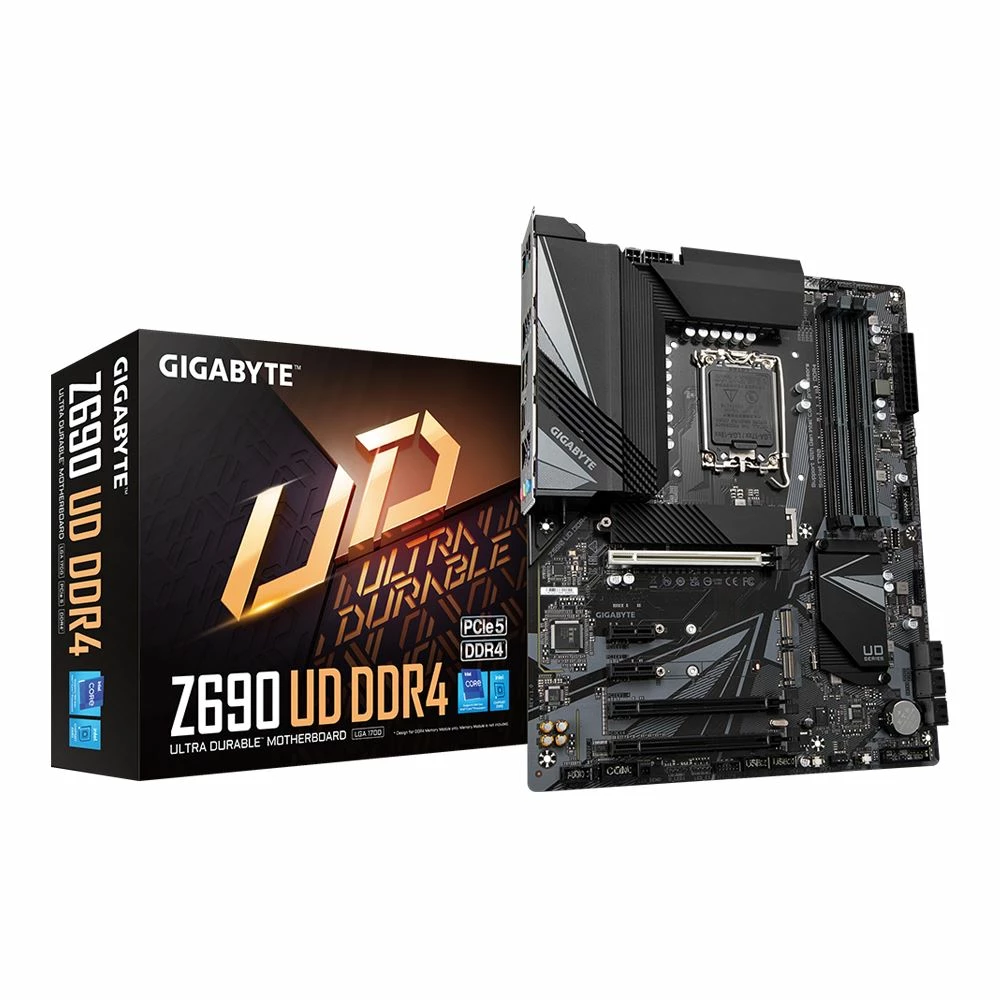

| What's in the Box | Motherboard, Manual, SATA Cables, M.2 Screws |
Be the first to review “Gigabyte Z690 UD DDR4 Intel LGA 1700 ATX Motherboard”
