$95.99
With years of experience, MSI is no stranger to building high-performance motherboards. Out R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
With years of experience, MSI is no stranger to building high-performance motherboards. Out R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
| SKU | 353011 |
|---|---|
| Memory Speeds Supported | 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800 |
| UPC | 824142270301 |
| Packaging | Retail |
| Microsoft Certifications | Windows 11 Ready |
| North Bridge | Intel Z690 |
| Socket Type | LGA 1700 |
| Intel CPU Support | Core i7 Core i5 Core i3 Celeron Pentium Core i9 |
| Supported Memory Technologies | Non-ECC Memory Supported Extreme Memory Profile (XMP) |
| Maximum Memory Supported Per Slot | 32GB |
| Audio Channels | 7.1 |
| Mfr Part# | MEG Z690 UNIFY |
| Memory Slots | 4 x 288pin DIMM |
| Max Memory Supported | 128GB |
| Memory Channel Support | Dual Channel |
| Multi-GPU Support | 2-Way CrossFireX 2-Way SLI |
| M.2 Port Type | 2260 2280 22110 |
| SATA Express | 5 x M.2 Socket 3 M key |
| SATA 6Gb/s | 6 |
| RAID Support | RAID 0 RAID 1 RAID 5 RAID 10 |
| Audio Chipset | Realtek ALC4080 |
| Memory Type | DDR5-4800 |
| WiFi Support | Onboard WiFi |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Line-Out |
| Digital Audio | 1 x Optical |
| Wireless LAN Chipset | Intel Wi-Fi 6E |
| Wireless Technology | 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.2 |
| PCI Express 5.0 x16 | 2 |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 2.0 | 2 x USB 2.0 (Type-A) |
| USB 3.1 | 7 x USB 3.2 (Gen 2 Type-A) 1 x USB 3.2 (Gen 2×2 Type-C) |
| Legacy Ports | 1 x PS/2 |
| LAN Ports | 2 x 10/100/1000/2500 RJ-45 LAN |
| LAN Chipset | Intel I225-V |
| LAN Speed | 10/100/1000/2500Mbps |
| Headers | 1 x CPU Fan Header 1 x Water Pump Header 6 x System Fan Header |
| USB | 2 x USB 2.0 Headers (4 Ports) 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports) 1 x USB 3.2 Gen 2×2 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 6-pin +12 V Connector 2 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 12.00 in. (305.00 mm) |
| Width | 9.61 in. (244.00 mm) |
| Form Factor | ATX |
| Parts | 3 Years |
| Labor | 3 Years |

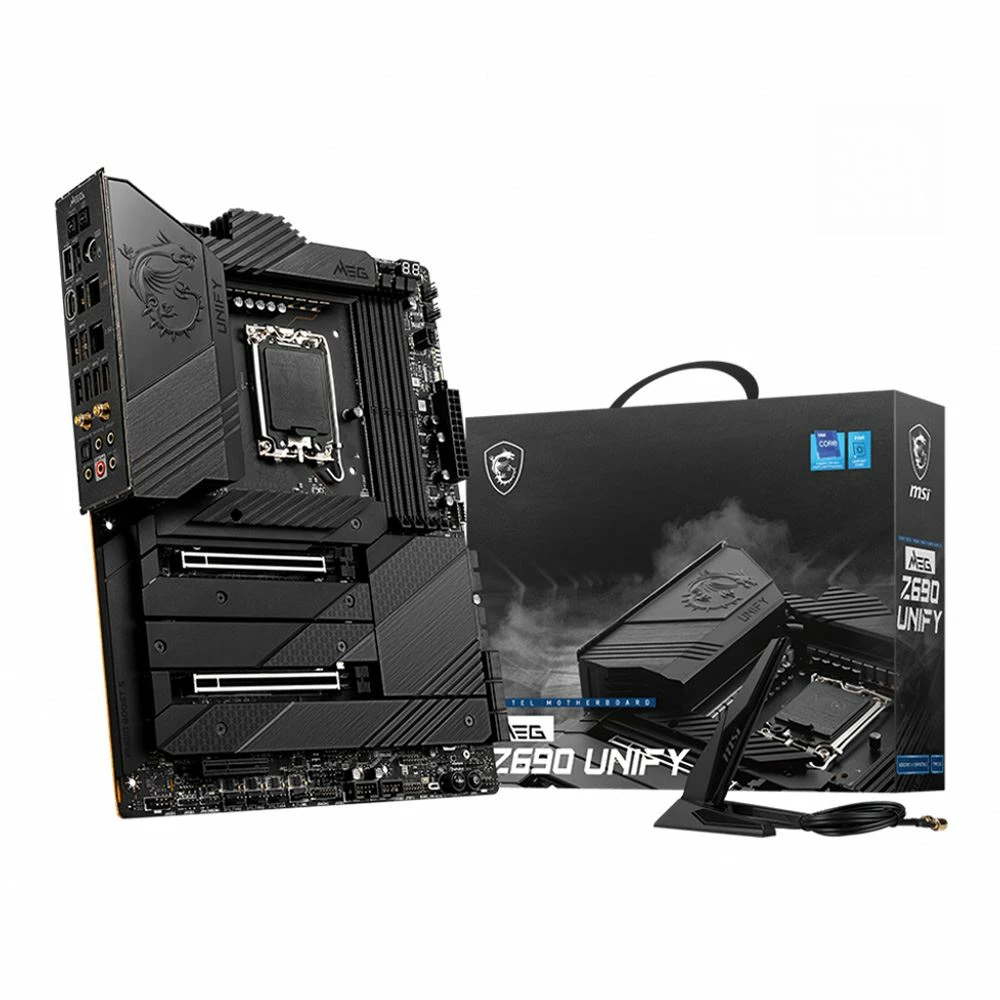

| What's in the Box | Motherboard, Install Guide, USB Drive w/ Drivers, 2x SATA Cables, JRGB Y Cable, JRAINBOW Cable, JCORSAIR Cable, Front Panel Cable, Thermal Sensor Cable, Tuning Controller Cable, Tuning Controller Module, DIY Stand Set, Antenna, Case Badge, MEG Sticker, SATA Cable Sticker, Registration Card, EX M.2 Clips, M.2 Screws and Standoffs, Small Brush, Screwdriver Set |
