Sale!
$96.99

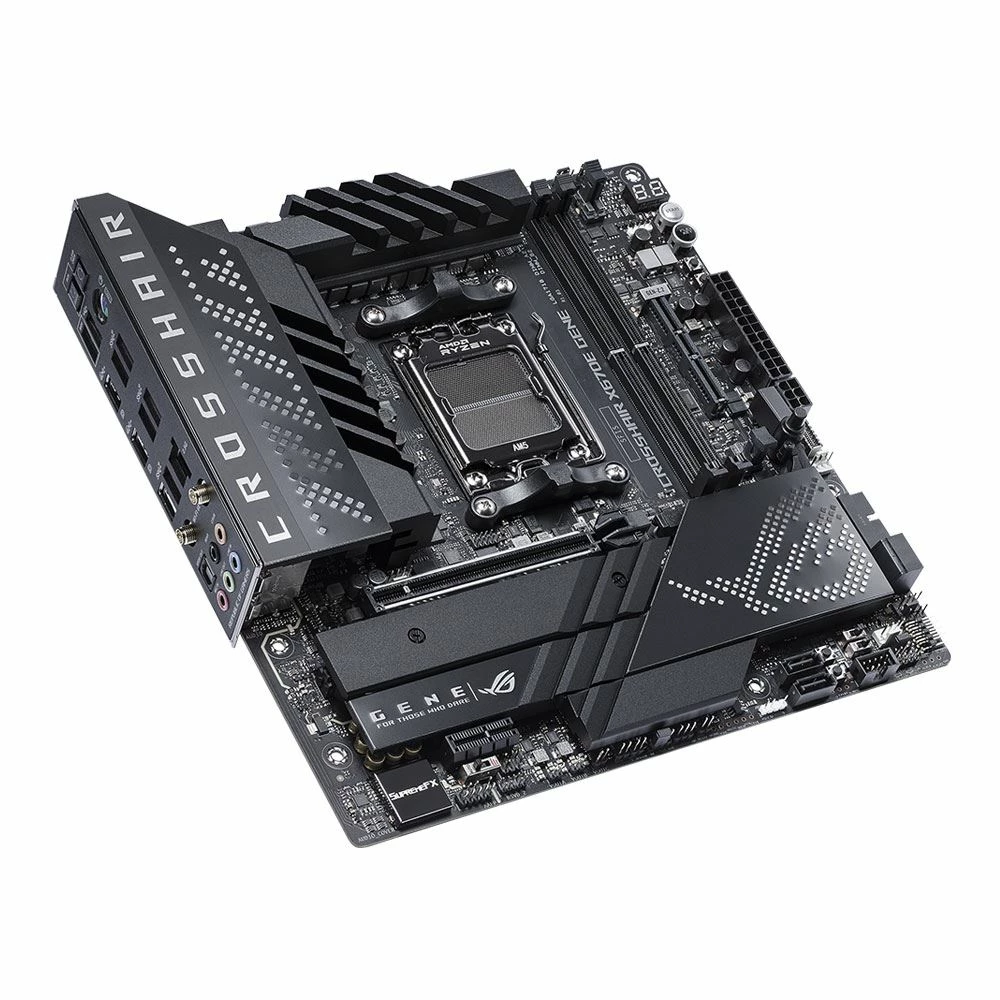

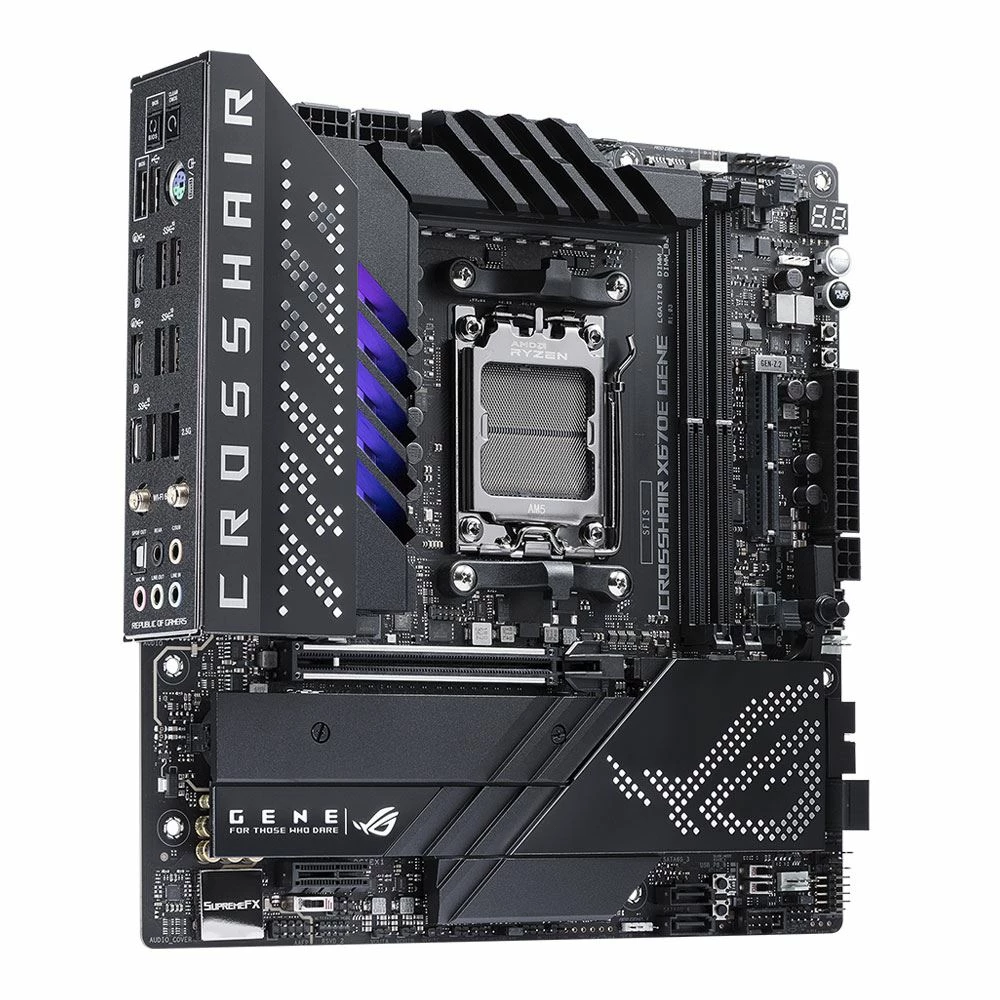

Formed by splicing the ROG DNA and mixing in an SFF enzyme, the ROG Crosshair X670E Gene is a mATX powerhouse that lets you have it all. With bulked-up power delivery and heatsinks, it dishes up a full-fat serving of AMD Ryzen 7000 Series processors, alongside a digestible blend of PCIe 5.0, DDR5, WiFi 6E, and USB4 for enthusiasts that want a compact AM5 build on the desktop.
- Protect Your Wallet with Safe Payments
- Online assistance, always at your service.
- Safe Shopping Guaranteed
- Best price, safe shopping guarantee
Formed by splicing the ROG DNA and mixing in an SFF enzyme, the ROG Crosshair X670E Gene is a mATX powerhouse that lets you have it all. With bulked-up power delivery and heatsinks, it dishes up a full-fat serving of AMD Ryzen 7000 Series processors, alongside a digestible blend of PCIe 5.0, DDR5, WiFi 6E, and USB4 for enthusiasts that want a compact AM5 build on the desktop.
| SKU | 435743 |
|---|---|
| Memory Speeds Supported | 6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 |
| Packaging | Retail |
| Manageability | WOL |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| North Bridge | AMD X670E |
| Socket Type | AM5 |
| AMD CPU Support | Ryzen |
| Supported Memory Technologies | ECC Memory Supported Non-ECC Memory Supported Extreme Memory Profile (XMP) Extended Profiles for Overclocking (EXPO) |
| Maximum Memory Supported Per Slot | 32GB |
| Audio Channels | 7.1 |
| Memory Type | DDR5-4800 DDR5-5200 DDR5-5000 |
| Memory Slots | 2 x 288pin DIMM |
| Max Memory Supported | 64GB |
| Memory Channel Support | Dual Channel |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2242 2260 2280 22110 |
| SATA Express | 3 x M.2 Socket 3 M Key |
| SATA 6Gb/s | 4 |
| RAID Support | RAID 0 RAID 1 RAID 10 |
| Audio Chipset | ROG SupremeFX ALC4080 |
| UPC | 195553894531 |
| Mfr Part# | XHAIRX670EGENE |
| USB 3.1 | 1 x USB 3.2 (Gen 2 Type-C) 5 x USB 3.2 (Gen 2 Type-A) |
| LAN Speed | 10/100/1000/2500Mbps |
| PCI Express 5.0 x16 | 1 |
| PCI Express x1 | 1 |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| Legacy Ports | 1 x PS/2 |
| Audio Ports | 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Line-Out |
| Thunderbolt Ports | 2 x Thunderbolt 4 |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 2.0 | 2 x USB 2.0 (Type-A) |
| Digital Audio | 1 x Optical |
| Headers | 1 x Water Pump Header 3 x System Fan Header 2 x CPU Fan Header |
| WiFi Support | Onboard WiFi |
| USB | 2 x USB 2.0 Headers (4 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) 1 x USB 3.2 Gen 2×2 Type-C Header (1 Port) |
| Power Connectors | 1 x 24-pin ATX Connector 1 x 6-pin +12 V Connector 2 x 8-pin +12 V Connector |
| ATX Connector | 24-pin ATX Power Connector |
| Depth | 9.60 in. (243.84 mm) |
| Width | 9.60 in. (243.84 mm) |
| Form Factor | microATX |
| Parts | 3 Years |
| Labor | 3 Years |
| Wireless Technology | 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.3 |

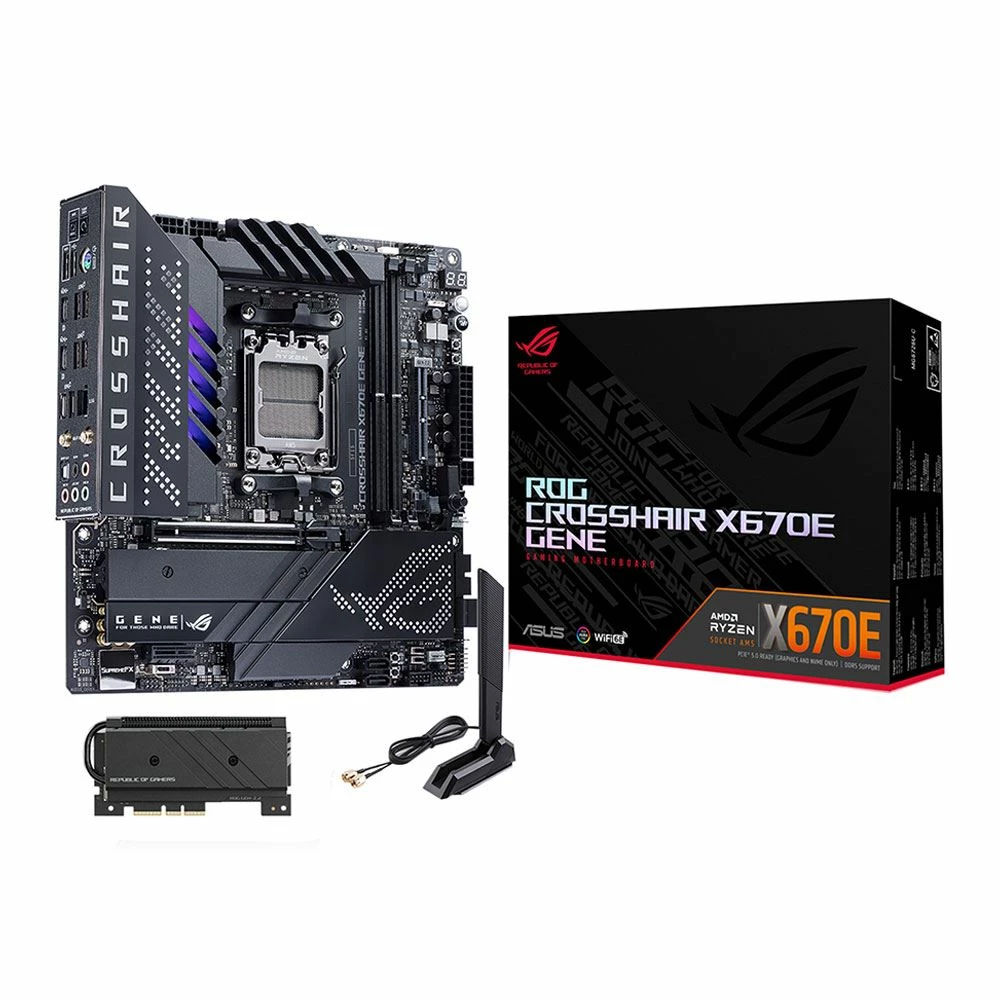

| What's in the Box | 1x RGB extension cable, 2x SATA 6Gb/s cables, 1x ROG GEN-Z.2 with heatsink, 1x M.2 pad for ROG GEN-Z.2, 2x M.2 screw package for ROG GEN-Z.2, 1x ROG True Voltician, 4x cables for ROG True Voltician, 1x Thermal pad for M.2, 1x ASUS Wi-Fi moving antennas, 1x Q-connector, 1x M.2 Q-Latch package for M.2 backplate, 1x ROG Graphics card holder, 1x ROG key chain, 1x ROG stickers, 1x ROG thank you card, 1x Rubber Package for M.2 backplate, 1x USB drive with utilities and drivers, 1x User guide |
